Product Description

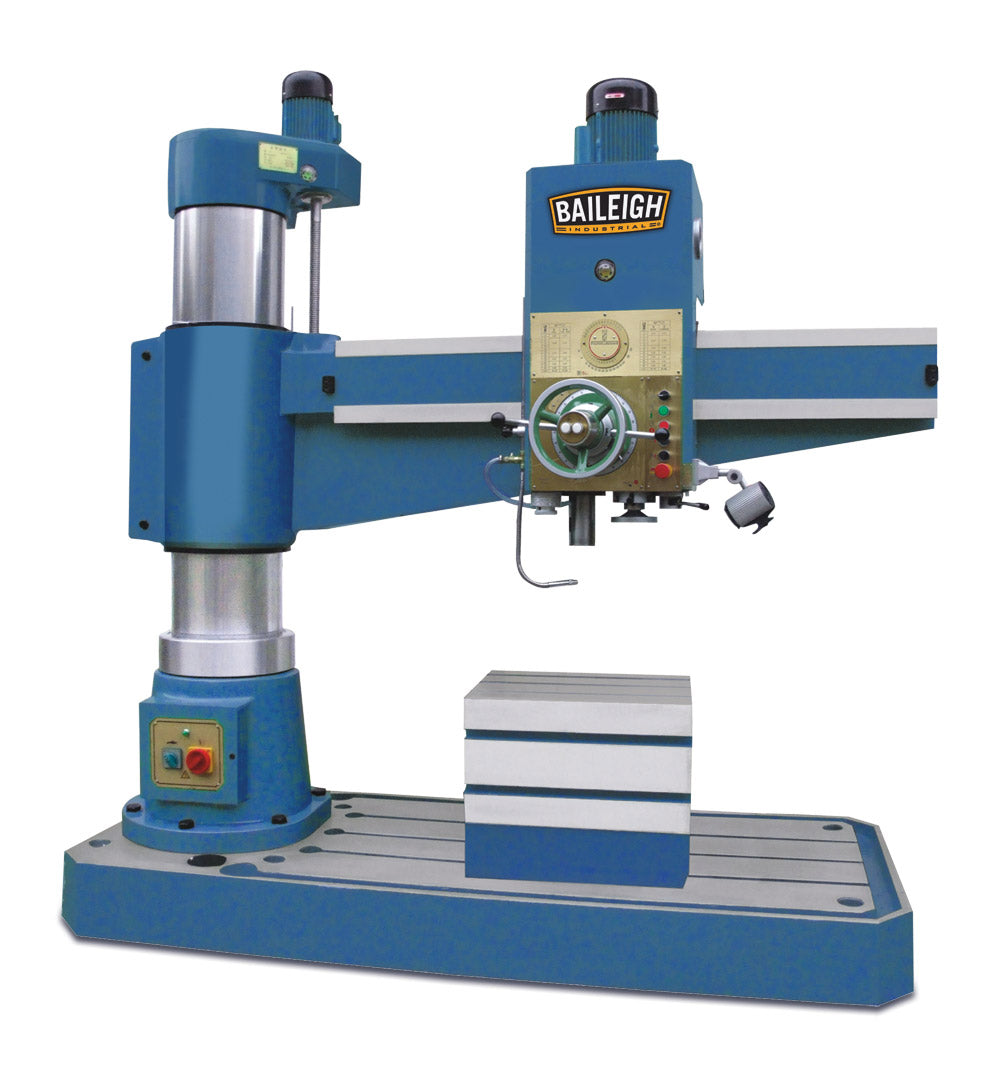

Baileigh Hydraulic Radial Drill Press RD-1600H is a heavy-duty radial drill press engineered by Baileigh for demanding fabrication shop environments where large swing capacity and precision drilling performance are essential. Built for industrial-grade applications, this machine delivers up to a 2-inch maximum drilling capacity paired with a powerful hydraulic system, making it an ideal choice for shops that require reliable, high-capacity drilling on large or heavy workpieces.
Key Features
- 2-inch maximum drilling capacity for tackling large-scale drilling operations
- Heavy duty construction designed to withstand rigorous industrial use
- Power down feed for consistent, controlled drilling depth and feed rate
- MT5 spindle provides a robust, industry-standard taper connection for tooling versatility
- Large 63-inch column delivers an expansive arm reach and generous swing range
- Box shape worktable offers a stable, rigid work surface for secure workpiece positioning
- 220V 3-phase power input suited for professional shop electrical configurations
Specifications
- Maximum Drilling Capacity: 2 in.
- Spindle Taper: MT5
- Column Height: 63 in.
- Worktable Style: Box shape
- Input Power: 220V 3-phase
- Country of Origin: China
What's Included
- Spindle protection cover
- Quick chuck
- Tapping chuck
- Industrial coolant system
- Work light
- Box shaped worktable
Frequently Asked Questions
- What is the maximum drilling capacity of the RD-1600H?
- The Baileigh RD-1600H has a 2-inch maximum drilling capacity, making it well-suited for heavy-duty industrial drilling tasks that require boring large-diameter holes through substantial material.
- What type of spindle does the RD-1600H use?
- The RD-1600H is equipped with an MT5 spindle, which is a large, heavy-duty Morse Taper connection that accommodates a wide range of industrial tooling for versatile drilling and tapping operations.
- What power supply does the RD-1600H require?
- This radial drill press operates on 220V 3-phase power, which is a standard electrical configuration found in professional fabrication and machining shop environments.
- Does the RD-1600H include a coolant system?
- Yes, the RD-1600H comes complete with an industrial coolant system included in the package, along with a spindle protection cover, quick chuck, tapping chuck, work light, and box shaped worktable.
