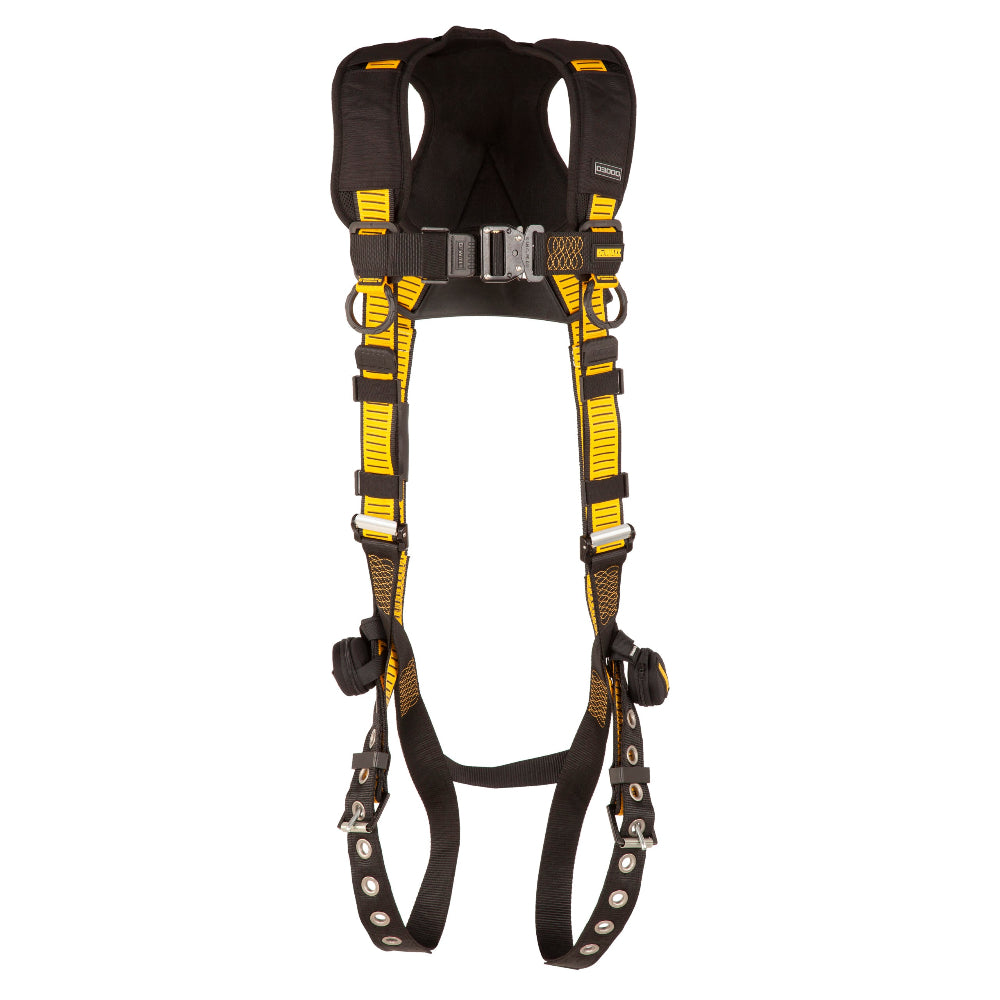

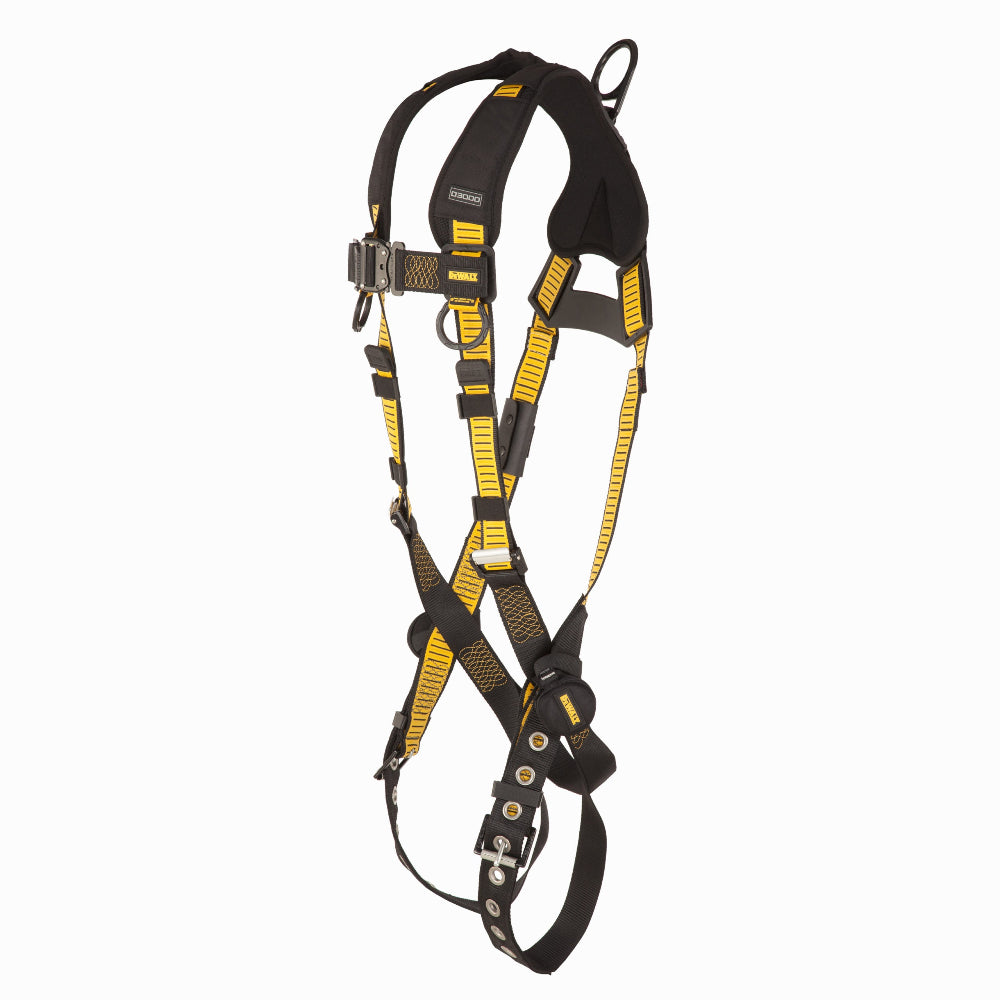

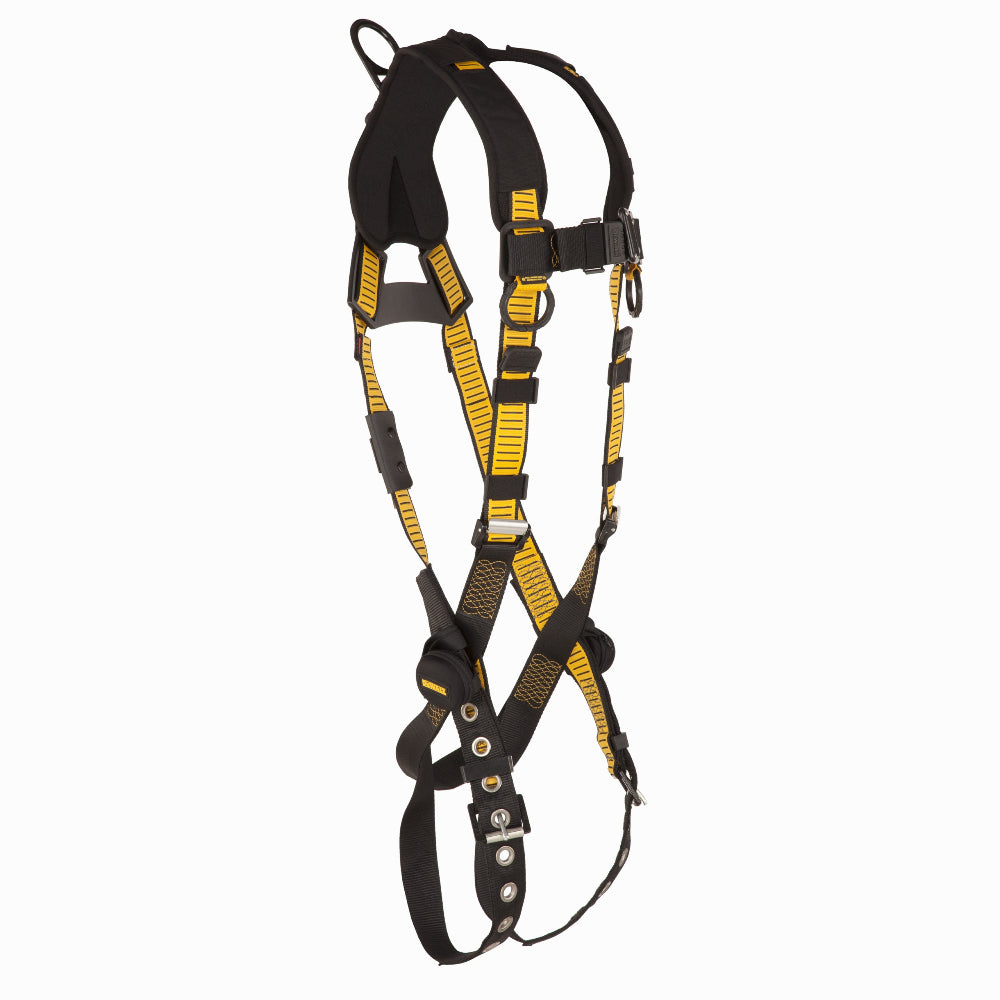

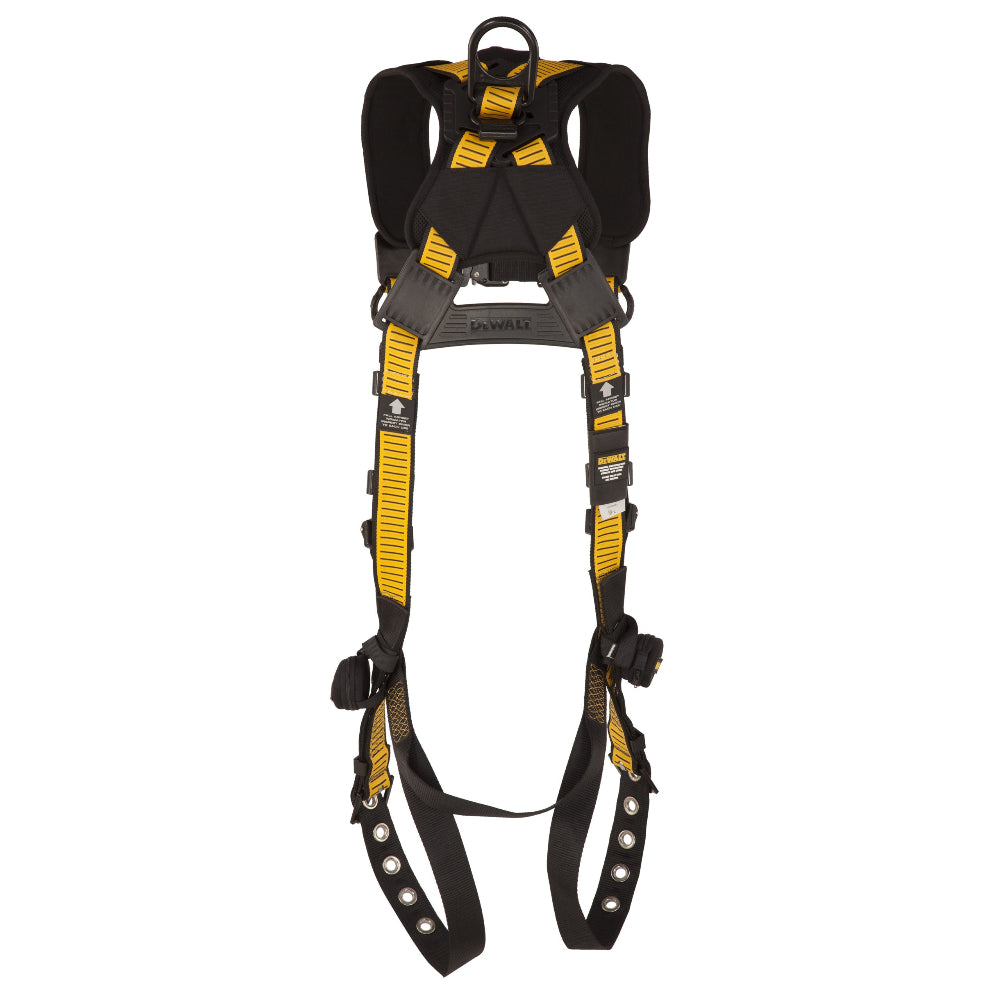

The DEWALT D3000 Vest Style Full Body Harness is a professional fall protection harness engineered for a wide variety of job sites and working conditions, featuring a 5-point adjustment system, back D-rings, quick connect chest buckle, and tongue buckle legs in a Small-Medium size. Built with polyester webbing rated to a 5,000 lb. minimum static strength and a repellant coating that resists oil and water, this harness is designed to hold up through demanding daily use while staying cleaner longer. Compliant with ANSI Z359.11-21, OSHA 1910.140, and OSHA 1926.502, the D3000 gives safety managers and workers confidence that their fall arrest equipment meets current regulatory requirements across general industry and construction applications.

Key Features

• Polyester webbing with repellant coating - actively resists oil and water stains so the harness stays cleaner through messy or wet job site conditions, helping extend its usable service life
• Integrated suspension trauma straps - attached directly to the harness and ready to deploy the moment they are needed, these straps help reduce the risk of suspension trauma while a fallen worker awaits rescue
• Resettable lanyard keepers - give workers a secure place to park unused lanyard legs, reducing clutter and trip hazards while moving across the job site
• Quick connect SRL adapter - allows fast installation of a self-retracting lifeline while keeping the back D-ring completely free for lanyards or rescue device connections, so workers do not have to choose between attachment options
• QR code and RFID tag on every harness - enable quick scan and registration into an asset management or inspection application, cutting the time needed to stay on top of compliance documentation and inspection records
• Back pad designed to prevent tangles - means the harness can be donned quickly and correctly each morning without sorting through twisted webbing, saving time during daily fit-up
• 5,000 lb. minimum static strength polyester webbing - provides the high-strength foundation required for fall arrest performance under both ANSI and OSHA-governed work environments
• Plated alloy steel buckles and adjusters - deliver corrosion-resistant hardware that holds its adjustment reliably under repeated use and exposure to outdoor conditions

Why This Product

• Built-in fall suspension relief - integrated trauma straps are already attached to the harness, so there is no separate accessory to remember or install before climbing, giving workers an immediate layer of protection in the event of a fall
• Designed for multi-point connection flexibility - the quick connect SRL adapter lets workers connect a self-retracting lifeline without occupying the back D-ring, keeping that connection point available for a lanyard or rescue device at the same time
• Supports faster, more consistent inspections - the built-in QR code and RFID tag on every harness make it straightforward to scan, register, and track each unit in an asset management or inspection application, helping safety managers keep inspection records current without extra paperwork
• Rated for both ANSI and OSHA compliance - with a weight rating of 310 lbs. under ANSI and 420 lbs. under OSHA, and certification to ANSI Z359.11-21, OSHA 1910.140, and OSHA 1926.502, the D3000 covers the compliance requirements that matter most on general industry and construction job sites

Specifications

• Brand: DEWALT
• MPN: DXFP532011(S-M)
• Size: S-M (Small-Medium)
• Color: Black/Yellow
• Style: Vest Style, 5-Point
• D-Ring Location: Back
• Chest Buckle Type: Quick Connect (QC)
• Leg Buckle Type: Tongue Buckle (TB)
• Webbing Material: Polyester
• Minimum Static Strength: 5,000 lb.
• Buckles and Adjusters: Plated alloy steel
• Weight Rating: ANSI 310 lbs. (141 kg) - OSHA 420 lbs (191 kg)
• Standards Compliance: Meets ANSI Z359.11-21, OSHA 1910.140, OSHA 1926.502
• Warranty: 2 years
• Unit of Measure: 1 Harness

Frequently Asked Questions

What compliance standards does the DEWALT D3000 full body harness meet?

The D3000 meets ANSI Z359.11-21, OSHA 1910.140, and OSHA 1926.502. These standards cover personal fall arrest systems for both general industry and construction applications, making the D3000 suitable for a wide range of regulated work environments.

What is the weight capacity of the DEWALT D3000 harness?

The D3000 carries a weight rating of 310 lbs. (141 kg) per ANSI standards and 420 lbs. (191 kg) per OSHA standards. The appropriate rating to apply will depend on the regulatory framework governing your specific job site.

What are the suspension trauma straps on the D3000 and why are they important?

The D3000 includes attached, integrated suspension trauma straps. In the event of a fall arrest, these straps can be deployed to help the suspended worker maintain circulation and reduce the health risks associated with prolonged suspension in a harness while awaiting rescue.

How does the RFID and QR code on the D3000 harness support safety inspections?

Every DEWALT D3000 harness includes a QR code and RFID tag that allow it to be quickly scanned and registered into an asset management or inspection application. This simplifies record-keeping, supports consistent inspection scheduling, and helps safety managers maintain accurate equipment compliance documentation without manual paperwork.
