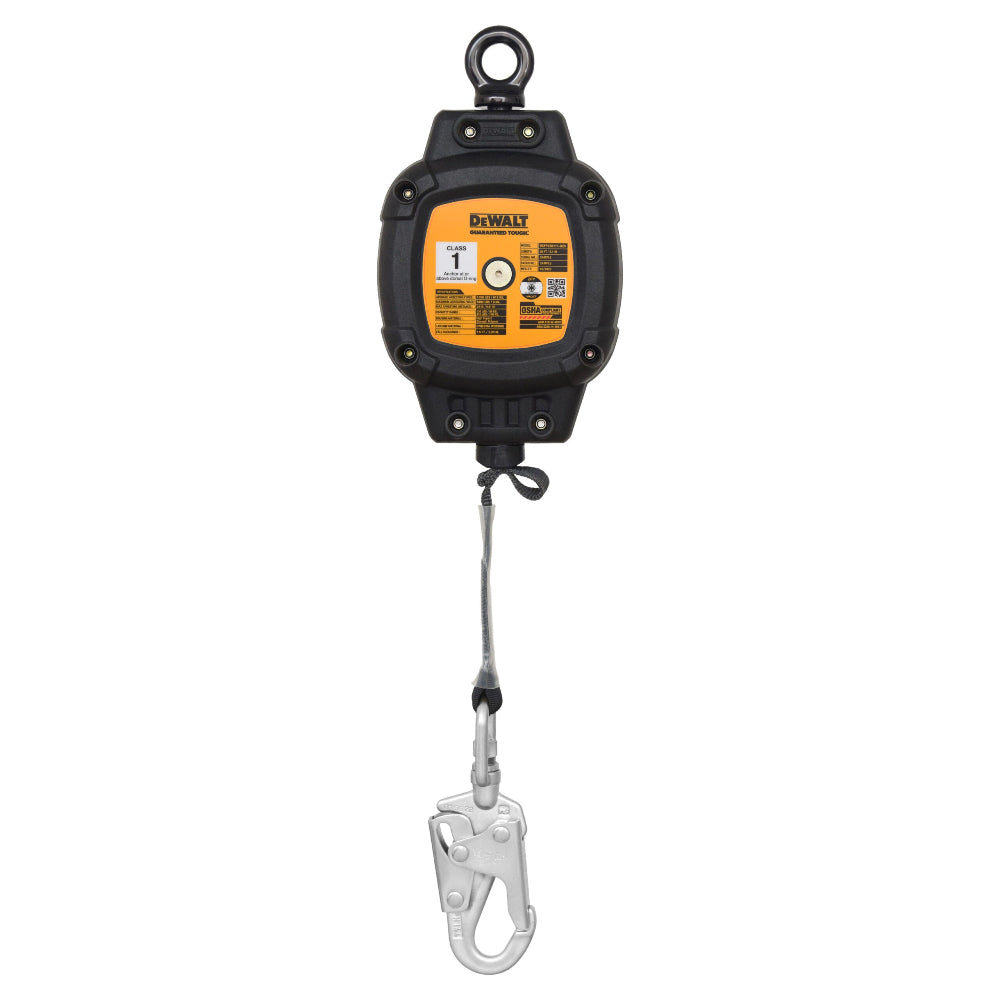

The DEWALT 20' Self Retracting Lifeline Web DXFP230111-020 is an anchor-mounted fall protection SRL built for work-at-height professionals who need dependable, compliance-ready performance across construction and general industry applications. Featuring a 1" (25.4 mm) polyester web lifeline that retracts smoothly to minimize slack and limit free fall distance, this anchor-mounted connector pairs a trip-free harness snap hook with an impact indicating design that provides immediate visual confirmation when a fall-arrest event has occurred. Rated to ANSI 310 lbs. (141 kg) and OSHA 420 lbs. (191 kg) and weighing just 6.41 lbs. (2.90 kg), the DEWALT D100 SRL delivers strength, compliance, and freedom of movement in one rugged, lightweight package.

Key Features

• 20' (6.10 M) Working Length with 1" Polyester Web Lifeline - gives workers generous reach across a work area while the smooth-retracting webbing continuously limits slack, reducing free fall distance and the arrest forces transmitted to the body during a fall event.
• Impact Indicating Snap Hook at Harness End - provides immediate, visible evidence that a fall-arrest event has occurred, giving supervisors and workers a fast, reliable signal that the unit must be removed from service and inspected before further use.
• ANSI Capacity 310 lbs. (141 kg) / OSHA Capacity 420 lbs. (191 kg) - accommodates a wide range of worker weights and tool loads while satisfying both ANSI and OSHA capacity thresholds, supporting compliant use across construction and general industry environments.
• High Impact Strength Polymer Housing with Recessed Labels - the rugged housing resists damage from tough jobsite handling and harsh conditions, while recessed labeling stays protected from abrasion so compliance markings remain legible throughout the product's service life.
• 3,600 lb. (16kN) Gate-Rated Steel Carabiner at Anchor End - constructed from galvanized alloy steel with golden yellow/silver passivation for strong corrosion resistance, this carabiner delivers a secure, high-strength connection to the anchor point in demanding environments.
• 3,600 lb. (16kN) Gate-Rated Steel Snap Hook at Harness End - the same galvanized alloy steel construction with golden yellow/silver passivation provides a reliable, corrosion-resistant, trip-free connection to the harness dorsal ring, reducing the risk of accidental disconnection.
• Lightweight at 6.41 lbs. (2.90 kg) - the compact, low-weight design reduces worker fatigue during extended shifts at height, making it easier to wear or carry throughout the workday without sacrificing rated strength or durability.
• Trip-Free Connector Design - allows ease of movement and minimizes the chance of accidental connector interference, so workers can stay focused on the task at hand rather than managing and adjusting their equipment.
• Tagline Included - the included tagline enables controlled deployment and retrieval of the SRL, adding practical convenience in overhead and leading-edge anchor configurations where direct handling of the unit is limited.
• ANSI Z359.14-2021 Class 1 and OSHA 1926.502 / 1910.66 Compliant - meets current construction and general industry fall protection standards, helping employers satisfy regulatory requirements and supporting third-party inspection and jobsite compliance documentation.
• 2-Year Warranty - backed by a DEWALT 2-year limited warranty covering workmanship and materials, providing buyers with documented protection for their investment in fall protection equipment.

Why This Product

• Dual-standard compliance built in - meeting both ANSI Z359.14-2021 Class 1 and OSHA 1926.502 / 1910.66, this SRL removes the guesswork from regulatory compliance on both construction sites and general industry facilities, reducing liability exposure for safety managers and employers.
• The impact indicating hook removes ambiguity after a fall event - instead of relying on worker self-reporting, the impact indicating snap hook at the harness end delivers immediate visual confirmation that a fall-arrest event occurred, making post-incident inspection faster and more reliable on active jobsites.
• Rugged enough for tough environments, light enough for all-day wear - at 6.41 lbs. (2.90 kg) with a high impact strength polymer housing and recessed labels, this SRL balances durability against worker fatigue, making it a practical fit for professionals working extended hours at height in demanding conditions.
• Broad capacity range covers most worker and tool-load scenarios - with an ANSI rating of 310 lbs. (141 kg) and an OSHA rating of 420 lbs. (191 kg), the D100 accommodates a wide range of users and load conditions, reducing the need to source multiple SRL models for different workers on the same site.

Specifications

• Brand: DEWALT
• MPN: DXFP230111-020
• Model: D100 SRL - Web - 20'
• Working Length: 20' (6.10 M)
• Max Capacity (ANSI): 310 lbs. (141 kg)
• Max Capacity (OSHA): 420 lbs. (191 kg)
• Lifeline Material: 1" (25.4 mm) Polyester Webbing
• Housing: High Impact Strength Polymer
• Anchor End Connector: 3,600 lb. (16kN) gate Steel (galvanized alloy steel with golden yellow/silver passivation) Carabiner
• Harness Connector: Impact Indicating 3,600 lb. (16kN) gate Steel (galvanized alloy steel with golden yellow/silver passivation) Snap Hook
• Tagline: Included
• Color: Black/Gold
• Standards: ANSI Z359.14-2021 Class 1, OSHA 1926.502 and 1910.66
• Warranty: 2 years
• Unit of Measure: 1

Frequently Asked Questions

What is the maximum working length of this self retracting lifeline?

The DEWALT DXFP230111-020 has a working length of 20' (6.10 M), providing substantial reach for a variety of overhead and leading-edge anchor configurations while minimizing free fall distance through automatic webbing retraction.

What standards does this SRL meet, and is it compliant for construction jobsites?

Yes. This SRL meets ANSI Z359.14-2021 Class 1, OSHA 1926.502 (construction), and OSHA 1910.66 (general industry) standards - making it suitable for a broad range of regulated fall protection applications in both construction and general industry settings.

What does the impact indicating snap hook do and why does it matter?

The impact indicating snap hook at the harness end provides a visible indicator if a fall-arrest event has occurred. This allows workers and safety managers to quickly identify that the SRL has been subjected to arrest forces and should be removed from service for inspection - an important step in maintaining compliant fall protection practices.

What connectors are included at the anchor end and harness end?

The anchor end uses a 3,600 lb. (16kN) gate-rated steel carabiner made of galvanized alloy steel with golden yellow/silver passivation. The harness end uses an impact indicating 3,600 lb. (16kN) gate-rated steel snap hook made of the same galvanized alloy steel with golden yellow/silver passivation. Both connectors are designed for corrosion resistance and high-strength fall arrest performance.
