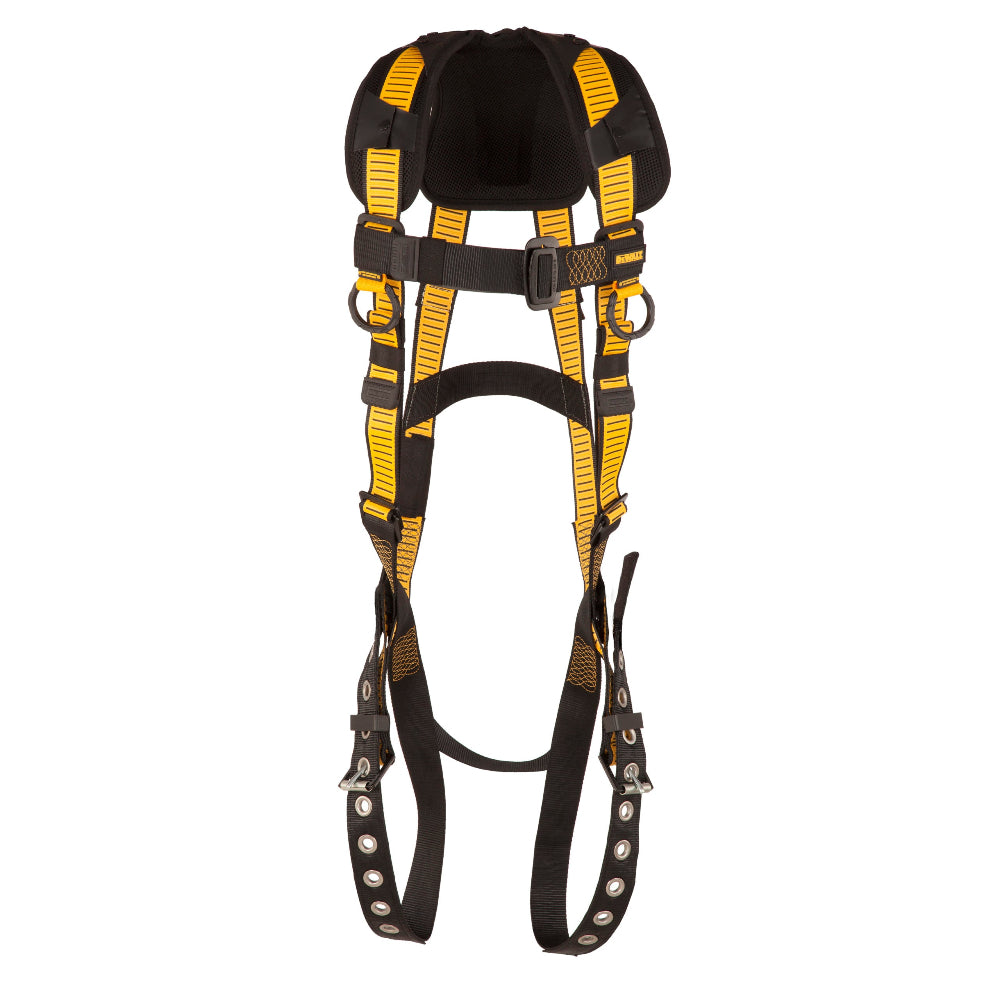

The DEWALT D1000 Full Body Harness delivers dependable, code-compliant fall protection for construction, industrial, and general contracting professionals who work at height every day. This vest-style, 5-point harness combines pass-through chest and tool-belt leg buckles, a back D-ring, and removable shoulder pads to keep workers secure and comfortable through long shifts on demanding job sites. Heavy-duty polyester webbing with a repellent coating resists oil, water, and stains, cutting down on maintenance time and helping the harness hold up across its full service life.

Key Features

• Polyester webbing with repellent coating - actively resists oil, water, and stain buildup so the harness cleans up faster and lasts longer through continuous field use
• 5 points of adjustment - lets workers dial in a precise, secure fit across a wide range of body sizes, supporting all-day comfort and consistent compliance during extended wear
• Pass-through chest and tool-belt leg buckles - allow fast, tool-free donning and doffing so workers spend less time suiting up and more time focused on the job
• Back D-ring attachment point - provides a central, ANSI-compliant connection point for lanyards, SRLs, and rescue devices, keeping the primary anchor exactly where it needs to be
• Removable shoulder pads - reduce pressure and fatigue during extended overhead or suspended work, helping workers stay comfortable and focused throughout long shifts
• Two lanyard keepers - allow safe parking of an unused lanyard leg so trailing hardware stays clear of the work area, reducing trip and snag hazards on busy job sites
• Quick connect SRL adapter - enables fast installation of a self-retracting lifeline while keeping the D-ring free for lanyards and rescue device connections, giving workers full system flexibility without sacrificing anchor options
• QR code and RFID tag on every harness - enable quick scan and registration into an asset management or inspection application, simplifying compliance recordkeeping and reducing the administrative burden of inspection tracking
• Plated alloy steel buckles and adjusters - provide strength and corrosion resistance that keeps hardware performing reliably even in tough, wet, or corrosive field conditions
• Meets ANSI Z359.11-21, OSHA 1910.140, and OSHA 1926.502 - satisfies both general industry and construction fall protection compliance requirements, so this harness works across a broad range of regulated work environments

Why This Product

• Built for compliance across multiple regulatory standards - meeting ANSI Z359.11-21, OSHA 1910.140, and OSHA 1926.502 means this harness covers both construction and general industry requirements, reducing the need to source separate harnesses for different job classifications
• Designed to reduce downtime from maintenance and inspection - the oil- and water-repellent polyester webbing resists staining in the field, while the built-in QR code and RFID tag make harness registration and inspection logging fast and straightforward for safety managers tracking multiple assets
• Supports a wide worker weight range without sacrificing comfort - rated to ANSI 310 lbs. and OSHA 420 lbs., with removable shoulder pads and 5 points of adjustment, this harness is suited for a broad workforce while remaining practical for all-day wear
• Gives workers a more versatile fall protection configuration - the quick connect SRL adapter lets workers add a self-retracting lifeline without occupying the back D-ring, and two lanyard keepers keep unused hardware safely parked, so the harness adapts to different anchor and lifeline setups on the same site

Specifications

• Brand: DEWALT
• MPN: DXFP512006(M-L)
• Color: Black/Yellow
• Size: M-L
• Style: Vest
• Attachment Points: 5-point; back D-ring
• Chest Buckle: Pass-through (PT)
• Leg Buckle: Tool-belt (TB)
• Webbing Material: Polyester; 5,000 lb. min. static strength
• Buckles and Adjusters: Plated alloy steel
• Weight Rating: ANSI 310 lbs. (141 kg) - OSHA 420 lbs. (191 kg)
• Standards: Meets ANSI Z359.11-21, OSHA 1910.140, OSHA 1926.502
• Shoulder Pads: Removable, included
• Warranty: 2 years
• Unit of Measure: 1 harness

Frequently Asked Questions

What regulatory standards does the DEWALT D1000 harness meet?

The D1000 full body harness meets ANSI Z359.11-21, OSHA 1910.140, and OSHA 1926.502, covering both general industry and construction fall protection requirements.

What is the weight capacity of this harness?

The DEWALT D1000 is rated for 310 lbs. (141 kg) per ANSI standards and 420 lbs. (191 kg) per OSHA standards.

How does the QR code and RFID tag help with harness maintenance?

Every D1000 harness includes a QR code and RFID tag that allow users to quickly scan and register the harness into an asset management or inspection application, making it easier to track inspection history, service intervals, and compliance records.

Can the SRL adapter and back D-ring be used simultaneously?

Yes. The quick connect SRL adapter allows fast installation of a self-retracting lifeline while leaving the back D-ring free for lanyard connections and rescue device attachments, giving workers flexibility without compromising their fall arrest configuration.
