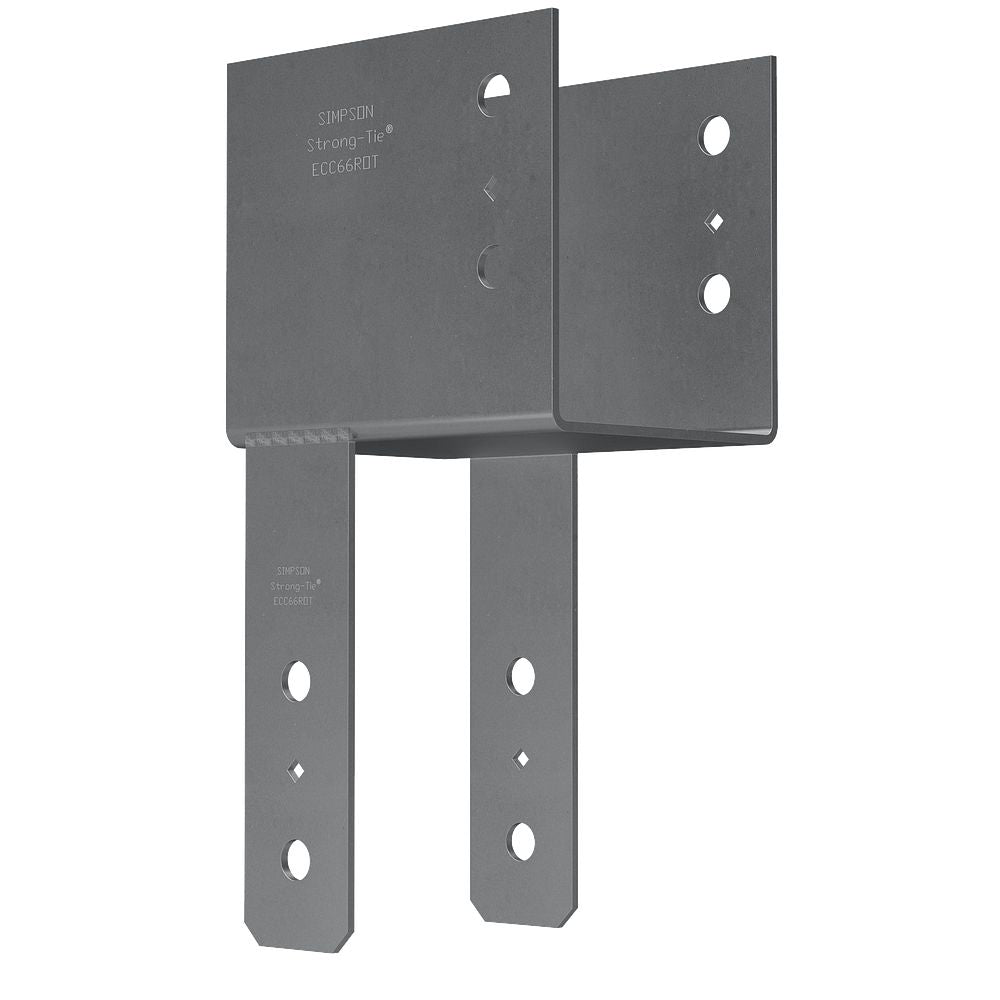

The Simpson Strong-Tie ECC98ROT End Column Cap is engineered to deliver strong, reliable column-to-beam connections in end-of-beam applications throughout wood construction. Designed for use with an 8-3/4" beam and 8X post, this end column cap features rotated straps and a robust seat that provides an additional surface area of bearing extending beyond one side of the column. The ECC98ROT effectively distributes load from the beam while providing critical structural support at the connection point - making it a trusted solution for demanding residential and commercial framing applications.

Key Features

• Certified welds for confidence in strength and loading
• Uplift loads increased for earthquake or wind loading
• Bolt spacing that meets NDS code requirements to ensure optimal performance
• Diamond holes to provide temporary fastening
• Seat design provides additional bearing surface area extending beyond one side of the column
• Effectively distributes beam load to provide superior connection support
• Rotated strap configuration (straps rotated 90 deg.) for end-of-beam applications

Specifications

• Model Number: ECC98ROT
• Description: 8-3/4" Beam, 8X Post Rotated Straps End Column Cap
• Material: 3 gauge
• Finish: Simpson Strong-Tie gray paint
• Fasteners Required - Beam: 3/4" Machine Bolts (4)
• Fasteners Required - Post: 3/4" Machine Bolts (2)
• Country of Origin: United States

Approved Applications

• End-of-beam column-to-beam connections in wood construction
• Structural framing requiring enhanced uplift resistance for seismic (earthquake) loading
• Structural framing requiring enhanced uplift resistance for wind loading
• Applications where additional bearing surface area at the column seat is required
• Projects requiring NDS code-compliant bolt spacing for column cap connections
• Applications utilizing 8X post and 8-3/4" beam framing members

What's Included

• 1x Simpson Strong-Tie ECC98ROT End Column Cap (Rotated Straps)
• Note: Fasteners (3/4" machine bolts) are not included and must be sourced separately.

Options

• Contact us for Configurable Options and Special orders
• Straps may be rotated 90 deg. (see SPECS)
• For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)

Frequently Asked Questions

What beam and post sizes is the ECC98ROT designed to work with?

The ECC98ROT is designed for use with an 8-3/4" beam and an 8X post, making it compatible with standard dimensional lumber used in heavy-duty residential and commercial wood framing applications.

What does "rotated straps" mean on the ECC98ROT, and why does it matter?

The rotated strap configuration means the straps are rotated 90 deg. relative to a standard column cap orientation. This design is specifically intended for end-of-beam applications, where the connection occurs at the end of a beam rather than at an interior point, ensuring proper load transfer and structural support in that configuration.

What fasteners are required to install the ECC98ROT?

Installation requires 3/4" machine bolts - four bolts for the beam connection and two bolts for the post connection. The bolt spacing on this cap is designed to meet NDS code requirements for optimal performance.

What material and finish is the ECC98ROT made from?

The ECC98ROT is constructed from 3 gauge steel and features a Simpson Strong-Tie gray paint finish. It includes certified welds and is engineered to support increased uplift loads for earthquake or wind loading conditions.
