Product Description

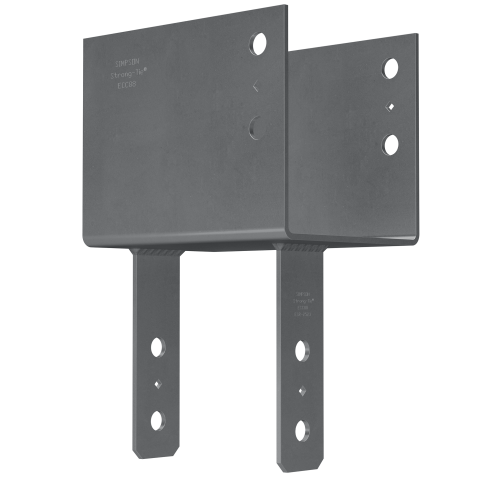

The Simpson Strong-Tie ECC96 End Column Cap is an engineered heavy-duty connector designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the one side of the column, helping to distribute the load from the beam and provide reliable support for the connection. Built from robust 3-gauge steel with a durable Simpson Strong-Tie gray paint finish, the ECC96 is purpose-built for demanding structural applications where performance and code compliance are essential.
Key Features
- Certified Welds - Certified welds for confidence in strength and loading
- Enhanced Uplift Capacity - Uplift loads increased for earthquake or wind loading
- Code-Compliant Bolt Spacing - Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond Holes - Diamond holes to provide temporary fastening during installation
- Heavy-Gauge Construction - Manufactured from 3-gauge steel for exceptional load-bearing performance
- Durable Finish - Simpson Strong-Tie gray paint finish for lasting protection
Specifications
- Model Number: ECC96
- Description: 8-3/4" Beam, 6X Post End Column Cap
- Material: 3 gauge steel
- Finish: Simpson Strong-Tie gray paint
- Fasteners Required - Beam: 3/4" Machine Bolts (4)
- Fasteners Required - Post: 3/4" Machine Bolts (2)
- Country of Origin: United States
Approved Applications
- End-of-beam column-to-beam connections in wood construction
- Structural connections requiring increased uplift resistance for seismic (earthquake) loading
- Structural connections requiring increased uplift resistance for high-wind loading
- Applications involving 6X post and 8-3/4" beam configurations
- Wood framing assemblies where NDS-compliant bolt spacing is required
What's Included
- 1 x Simpson Strong-Tie ECC96 End Column Cap
- Note: 3/4" Machine Bolts (Beam: 4, Post: 2) required but not included - must be sourced separately
Options
- Contact us for Configurable Options and Special orders
- Straps may be rotated 90 deg. (see SPECS)
- For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)
Note: Product dimensions may differ from picture.
Frequently Asked Questions
- What size beam and post is the ECC96 designed to fit?
- The ECC96 is designed for use with an 8-3/4" beam and a 6X post, making it suitable for heavy-duty end-of-beam column-to-beam connections in wood construction.
- What fasteners are required to install the ECC96?
- Installation requires 3/4" machine bolts - four bolts for the beam connection and two bolts for the post connection.
- What material and finish is the ECC96 made from?
- The ECC96 is manufactured from 3-gauge steel and features a Simpson Strong-Tie gray paint finish for lasting protection in demanding structural applications.
- Does the ECC96 meet code requirements and provide earthquake or wind load resistance?
- Yes. The ECC96 features bolt spacing that meets NDS code requirements and offers enhanced uplift capacity designed to handle increased loads from earthquake or wind loading. It also incorporates certified welds for confidence in strength and loading performance.
