Product Description

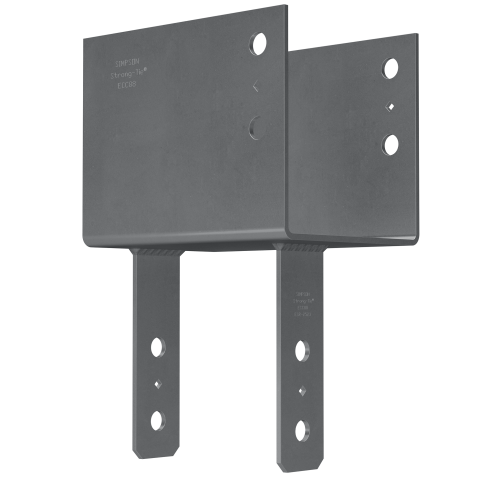

The Simpson Strong-Tie ECC98 is an end column cap engineered to deliver strong, reliable column-to-beam connections in end-of-beam applications throughout wood construction. Designed for use with 8-3/4" beams and 8X posts, the ECC98 features a seat that extends beyond one side of the column to provide additional bearing surface area, effectively distributing load from the beam and reinforcing the overall connection. Constructed from heavy-duty 3-gauge steel and finished with Simpson Strong-Tie gray paint, the ECC98 is built to perform in demanding structural environments where connection integrity is critical.
Key Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- Extended seat provides additional bearing surface area beyond one side of the column
- Designed specifically for end-of-beam column-to-beam applications
- Heavy-duty 3-gauge steel construction for long-lasting durability
Specifications
- Model Number: ECC98
- Description: 8-3/4" Beam, 8X Post End Column Cap
- Material: 3 gauge steel
- Finish: Simpson Strong-Tie gray paint
- Fasteners Required - Beam: 3/4" Machine Bolts (4)
- Fasteners Required - Post: 3/4" Machine Bolts (2)
- Country of Origin: United States
Approved Applications
- End-of-beam column-to-beam connections in wood construction
- Structural connections requiring increased uplift capacity for earthquake loading
- Structural connections requiring increased uplift capacity for wind loading
- Applications where additional bearing surface area is needed at the column-beam interface
- Wood construction projects requiring NDS code-compliant bolt spacing
What's Included
- 1x Simpson Strong-Tie ECC98 End Column Cap
- Note: Fasteners (3/4" machine bolts) are not included and must be sourced separately.
Options
- Contact us for Configurable Options and Special orders
- Straps may be rotated 90 deg. (see SPECS)
- For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)
Note: Product dimensions may differ from picture.
Frequently Asked Questions
- What beam and post sizes is the ECC98 designed to work with?
- The ECC98 is designed specifically for use with 8-3/4" beams and 8X posts, making it suited for end-of-beam column-to-beam connections in wood construction.
- What fasteners are required to install the ECC98?
- Installation requires 3/4" machine bolts - 4 bolts for the beam connection and 2 bolts for the post connection.
- What makes the ECC98 different from a standard column cap?
- The ECC98 features an extended seat that reaches beyond one side of the column, providing additional bearing surface area to better distribute load from the beam. It is designed specifically for end-of-beam applications rather than interior or mid-span column positions.
- What material and finish is used on the ECC98?
- The ECC98 is constructed from heavy-duty 3-gauge steel and finished with Simpson Strong-Tie gray paint, providing durability for demanding structural environments.
