Product Description

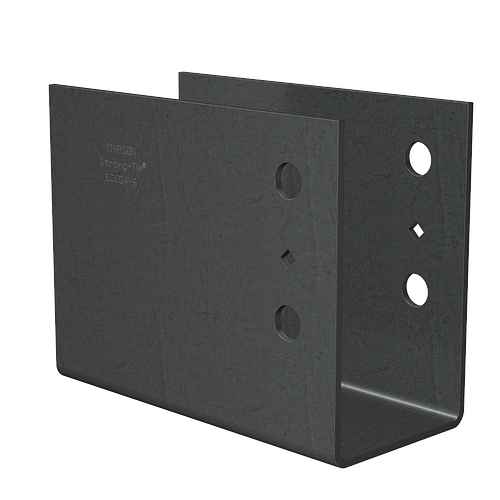

The Simpson Strong-Tie ECCO4/6 End Column Cap is engineered to deliver robust column-to-beam connections in end-of-beam applications on top of steel members. Designed without legs, this column cap is intended for field-welded attachment directly to steel columns and beams, making it an ideal solution for structural connections requiring precision and strength. The extended seat of the column cap provides additional bearing surface area beyond one side of the column, effectively distributing beam loads and reinforcing connection integrity. Constructed from heavy-duty 7-gauge steel and finished with Simpson Strong-Tie Gray paint, the ECCO4/6 is built to perform in demanding structural environments.
Key Features
- Legless design enables field-welded attachment to steel columns and beams
- Extended seat provides additional bearing surface area beyond one side of the column for improved load distribution
- Uplift loads increased for earthquake or wind loading
- Bolt spacing meets NDS code requirements to ensure optimal performance
- Diamond holes provide temporary fastening capability during installation
- Constructed from 7-gauge steel for exceptional strength and durability
- Finished with Simpson Strong-Tie Gray paint for added protection
Specifications
- Model Number: ECCO4/6
- Manufacturer Part Number (MPN): ECCO4/6
- Beam Width: 3-1/2 in.

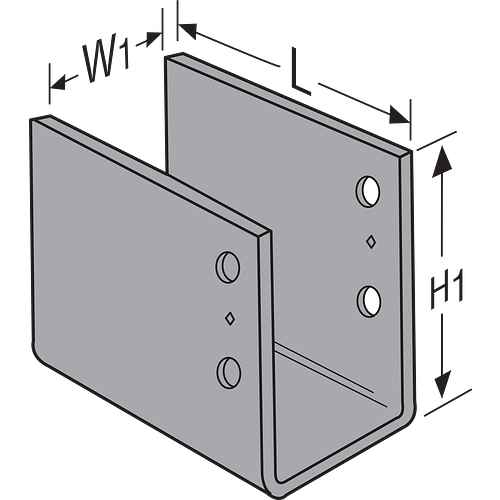

- Dimension W1: 3-5/8 in.
- Dimension L: 8-1/2 in.
- Dimension H1: 6-1/2 in.
- Material: 7-Gauge Steel
- Finish: Simpson Strong-Tie Gray Paint
- Country of Origin: United States
Approved Applications
- End-of-beam column-to-beam connections on top of steel members
- Field-welded structural connections to steel columns and beams
- Field welding to pipe or other columns (weld by designer)
- Structural connections subject to increased uplift loads from earthquake or wind loading
- Applications requiring NDS code-compliant bolt spacing
Installation Notes
- Use all specified fasteners.
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2018 NDS, section 12.1.3.2).
- Bolt holes should be drilled from one side all the way through the beam to maintain hole tolerances.
- Contact engineered wood manufacturers for connections to engineered wood products.
Options
- Contact us for Configurable Options and Special orders
- For special, custom, or rough-cut lumber sizes, provide dimensions.
- ECCO may be ordered for field welding to pipe or other columns. Weld by designer.
Note: Product dimensions and/or screw or bolt holes may differ from
Frequently Asked Questions
- What beam width is the ECCO4/6 designed to accommodate?
- The ECCO4/6 is designed for a beam width of 3-1/2 in., with a W1 dimension of 3-5/8 in. and an overall length of 8-1/2 in., making it compatible with standard 4x lumber used in structural beam applications.
- How is the ECCO4/6 attached to steel columns and beams?
- The ECCO4/6 features a legless design that enables field-welded attachment directly to steel columns and beams. Diamond holes are also included to provide temporary fastening capability during installation before final welding is completed.
- What makes the ECCO4/6 suitable for end-of-beam applications?
- The ECCO4/6 includes an extended seat that provides additional bearing surface area beyond one side of the column, which improves load distribution and reinforces connection integrity specifically in end-of-beam positions on top of steel members.
- What material and finish does the ECCO4/6 use?
- The ECCO4/6 is constructed from heavy-duty 7-gauge steel and finished with Simpson Strong-Tie Gray paint, providing exceptional structural strength along with added protection in demanding environments.
