Product Description

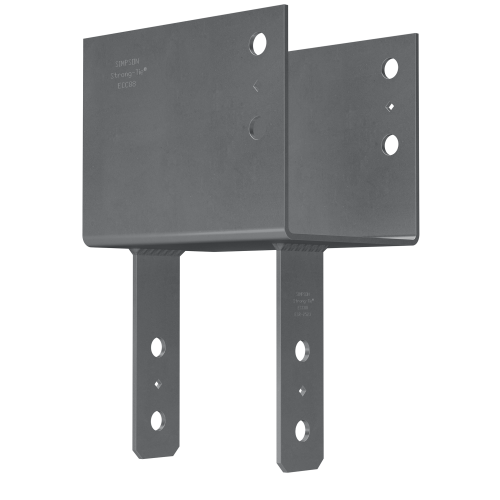

The Simpson Strong-Tie ECC4.62-4.62 End Column Cap is engineered to deliver strong, reliable column-beam connections in end-of-beam applications throughout wood construction. Designed specifically for a Triple 2X Beam and Triple 2X Post configuration, the ECC features a seat that provides an additional surface area of bearing extending beyond one side of the column. This extended bearing seat helps distribute the load from the beam and provides robust support for the connection, making it an essential connector for structural framing where end-of-beam column cap performance is critical.
Key Features
- Certified welds for confidence in strength and loading performance
- Increased uplift loads to address earthquake or wind loading demands
- Bolt spacing that meets NDS code requirements to ensure optimal structural performance
- Diamond holes to provide convenient temporary fastening during installation
- Extended seat bearing surface distributes beam load effectively at end-of-beam connections
- Made in the United States
Specifications
- Model Number: ECC4.62-4.62
- Description: Triple 2X Beam, Triple 2X Post End Column Cap
- Material: 7 gauge steel
- Finish: Simpson Strong-Tie gray paint
- Fasteners Required - Beam: 5/8" Machine Bolts (2)
- Fasteners Required - Post: 5/8" Machine Bolts (2)
- Country of Origin: United States
Approved Applications
- End-of-beam column cap connections in wood-frame construction
- Structural connections requiring strong column-to-beam load distribution
- Framing applications subject to earthquake or wind uplift loading requirements
- Projects where NDS bolt spacing compliance is required
- Heavy timber and engineered wood post-and-beam assemblies using Triple 2X members
Options
- Contact us for Configurable Options and Special orders
- Straps may be rotated 90 deg. (see SPECS)
- For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)
Frequently Asked Questions
- What beam and post sizes does the ECC4.62-4.62 accommodate?
- The ECC4.62-4.62 is specifically designed for a Triple 2X Beam and Triple 2X Post configuration, providing a secure and code-compliant connection at end-of-beam locations.
- What fasteners are required for installation?
- Installation requires 5/8" Machine Bolts - two bolts for the beam connection and two bolts for the post connection, for a total of four bolts.
- What finish and material is used on the ECC4.62-4.62?
- The connector is fabricated from 7 gauge steel and finished with Simpson Strong-Tie gray paint to provide a consistent, durable surface.
- Does this connector address wind and seismic uplift requirements?
- Yes. The ECC4.62-4.62 features increased uplift load values specifically intended to meet the demands of earthquake and wind loading scenarios in structural wood construction.
Note: Product dimensions may differ from picture.
