The Simpson Strong-Tie ECCU44 is a heavy-duty End Column Cap with Uplift engineered for column-beam connections in end-of-beam applications where uplift resistance is required. Manufactured from steel with a durable gray paint finish, this connector features an extended seat design that provides additional bearing surface area beyond one side of the column, helping to distribute loads efficiently and reinforce the structural integrity of the connection. Designed specifically for 4x post and 4x beam configurations, the ECCU44 is a precision-crafted solution for demanding structural applications.
Key Features
- Uplift Resistance: Specifically designed for end-of-beam column-beam connections requiring uplift values
- Extended Seat Design: The seat of the column cap extends beyond one side of the column, providing additional surface area for bearing
- Load Distribution: Helps distribute the load from the beam and provides reliable support for the connection
- Steel Construction: Built from steel for exceptional strength and durability
- Gray Paint Finish: Protective gray paint finish for added corrosion resistance
- Made in the USA: Manufactured in the United States
Specifications
- Model Number: ECCU44
- Material: Steel
- Finish: Gray Paint
- Post Size: 4x
- Beam Size: 4x
- Length: 6-1/2"
- Height: 4"
- Width: 3-5/8"
- Country of Origin: United States
Approved Applications
- Column-beam connections in end-of-beam applications requiring uplift values
- Structural connections with 4x post and 4x beam configurations
- Applications requiring additional bearing surface area beyond one side of the column
- Connections where load distribution from the beam to the post is critical
Options
-
Contact us for Configurable Options and Special orders
- Straps may be rotated 90 deg..

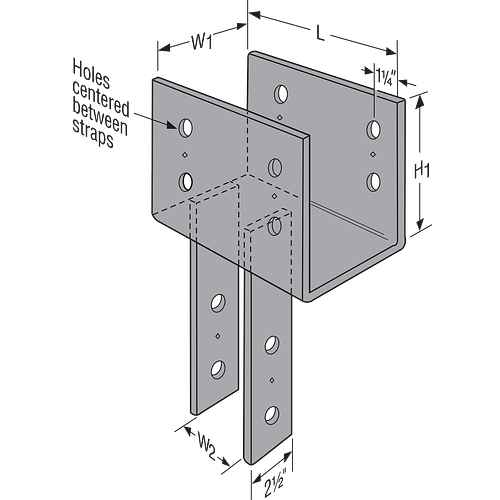

- For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)
Frequently Asked Questions
- What post and beam sizes is the ECCU44 compatible with?
- The ECCU44 is designed for use with 4x post sizes and 4x beam sizes.
- What are the dimensions of the ECCU44?
- The ECCU44 measures 6-1/2" in length, 4" in height, and 3-5/8" in width.
- What material and finish is the ECCU44 made from?
- The ECCU44 is constructed from steel and features a gray paint finish for durability and protection.
- Where is the ECCU44 manufactured?
- The Simpson Strong-Tie ECCU44 is manufactured in the United States.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
