Product Description

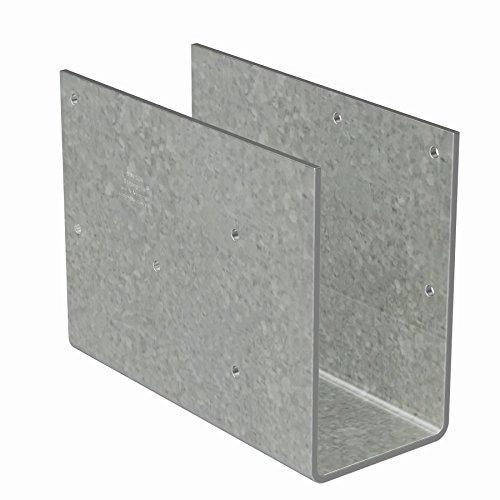

The Simpson Strong-Tie CCOS3.12 Steel Column Cap (CCOS Column Cap Only, No Straps) provides a high-capacity connection for column-to-beam combinations. Designed specifically for field welding to a steel column, this cap-only configuration omits the column straps to streamline installation in steel column applications. For faster installation, the CCOS3.12 requires self-tapping screws - included in the package - to attach the column cap securely to the column cap plate. With a 3-1/8 in. seat width and compatibility with double 2x10 and double 2x12 beam members, this connector delivers reliable structural performance for both solid sawn lumber and engineered wood products.
Key Features
- Provides adequate bearing length for larger girder reactions
- Sizes available for both solid sawn lumber and engineered wood products
- Self-tapping screws included for faster, convenient installation
- Seat width: 3-1/8 in.
- Compatible beam width: Double 2x10, double 2x12
- Made from heavy-duty 7-gauge steel for structural integrity
- Galvanized (G90) finish for corrosion resistance
- Cap-only design (no straps) created specifically for field welding to a steel column

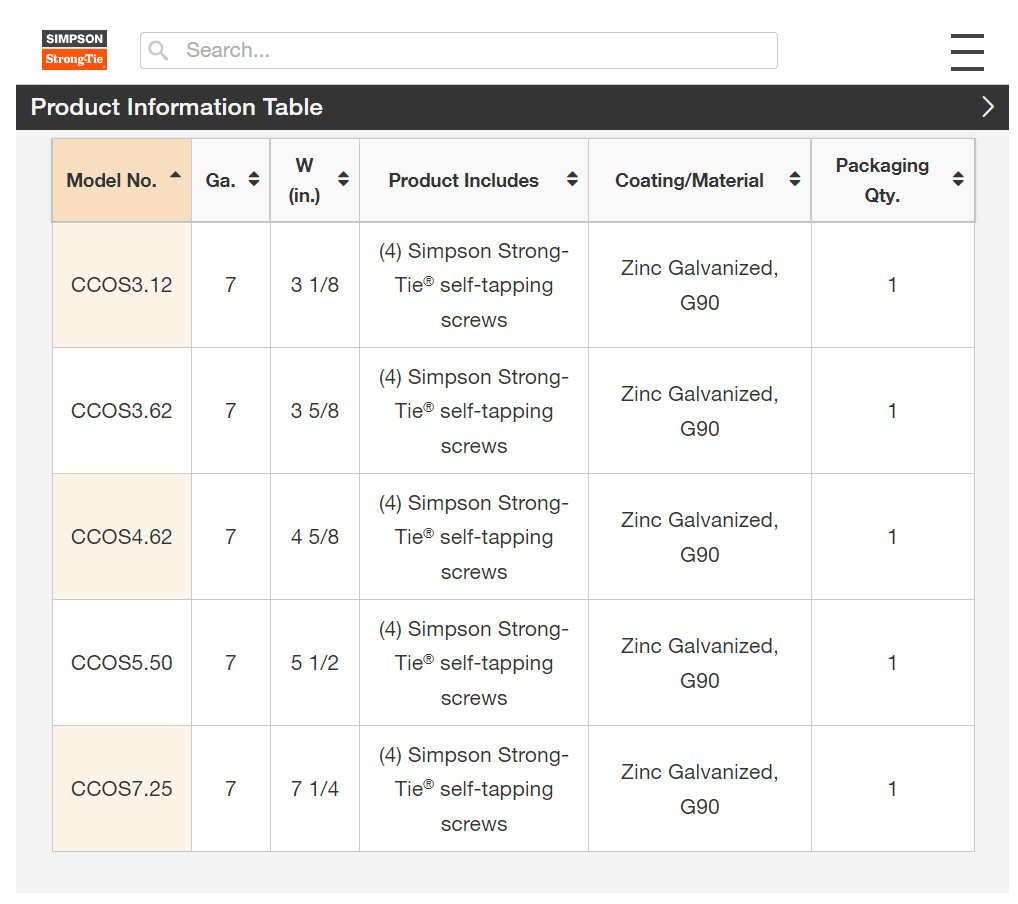

Specifications
- MPN: CCOS3.12
- Brand: Simpson Strong-Tie
- Seat Width: 3-1/8 in.
- Member Size: Double 2x10, double 2x12
- Gauge: 7
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States

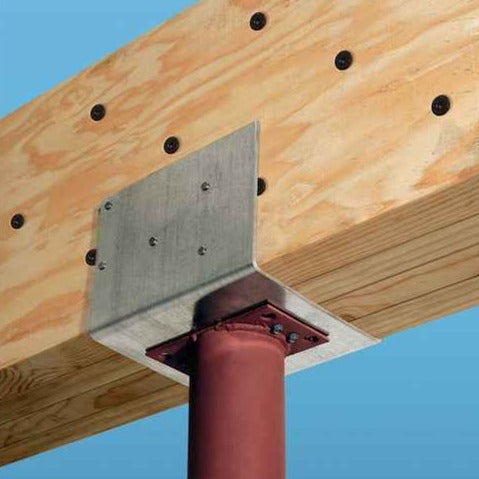

- Install With: Attach steel column cap to column end plate with (4) self-tapping screws (included) and 5/16 in. hex driver; attach to girder with 0.148 in. x 3 in. nails
What's Included
Each pack contains (1) CCOS3.12 Steel- Column Cap, (4) self-tapping screws.
Frequently Asked Questions
- What type of column is the CCOS3.12 designed to be used with?
- The CCOS3.12 cap-only design was created specifically for field welding to a steel column. The absence of column straps makes it ideal for steel column applications where welding is the preferred attachment method.
- What fasteners are required to install the CCOS3.12, and are they included?
- Installation requires (4) self-tapping screws and a 5/16 in. hex driver to attach the column cap to the column end plate. The (4) self-tapping screws are included with the connector. To attach the cap to the girder, 0.148 in. x 3 in. nails are required.
- What beam sizes is the CCOS3.12 compatible with?
- The CCOS3.12 is compatible with double 2x10 and double 2x12 beam members, and is suitable for use with both solid sawn lumber and engineered wood products.
- What material and finish is the CCOS3.12 made from?
- The CCOS3.12 is constructed from 7-gauge steel and features a Zinc Galvanized, G90 coating and finish, which provides corrosion resistance for demanding structural environments.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
