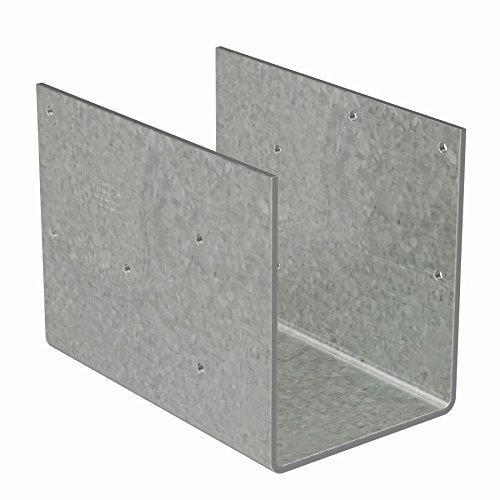

The Simpson CCOS4.62 Steel Column Cap is a heavy-duty connector built for high-capacity column-to-beam applications where a steel column is present. This cap-only design - without column straps - was created specifically for field welding to a steel column, allowing crews to work efficiently in structural steel environments. Attachment to the column cap plate is handled with the included self-tapping screws for a faster, more streamlined installation. Made from 7-gauge steel with a G90 zinc galvanized finish, this column cap is engineered to handle the demands of larger girder reactions in both solid sawn lumber and engineered wood product framing.

Key Features

• Adequate bearing length for larger girder reactions - supports heavy structural loads where undersized connectors would fall short, making it a reliable choice for demanding beam-to-column connections.
• Compatible with both solid sawn lumber and engineered wood products - gives builders and engineers flexibility to specify the beam material that best suits the project without needing a different connector.
• Self-tapping screws included - eliminates a separate fastener purchase and speeds up attachment to the column cap plate, keeping the job moving.
• 7-gauge steel construction - delivers the structural rigidity and load-transfer capacity expected in heavy-framing column cap applications.
• G90 zinc galvanized coating - provides a high level of corrosion resistance, keeping the connector protected in exposed or moisture-prone construction environments over the long term.
• Cap-only configuration designed for field welding - the absence of column straps makes this connector purpose-built for steel column integration, reducing unnecessary hardware and simplifying the connection detail.

Why This Product

• Purpose-built for steel column integration - unlike standard column caps, this strap-free design was engineered specifically for field welding to a steel column, making it the correct connector for steel-to-timber framing transitions rather than a workaround.
• Faster installation with included fasteners - the four included self-tapping screws and a straightforward screw-and-nail attachment method reduce setup time and eliminate guesswork about which fasteners to source separately.
• High-capacity performance for triple-beam framing - sized for triple 2x10 and triple 2x12 members, this column cap handles the larger girder reactions that come with heavy structural framing, where a lighter connector would not be appropriate.
• Long-term durability in demanding environments - the G90 galvanized finish on 7-gauge steel provides corrosion protection suited to the tough conditions common in structural construction, helping the connection maintain its integrity over time.

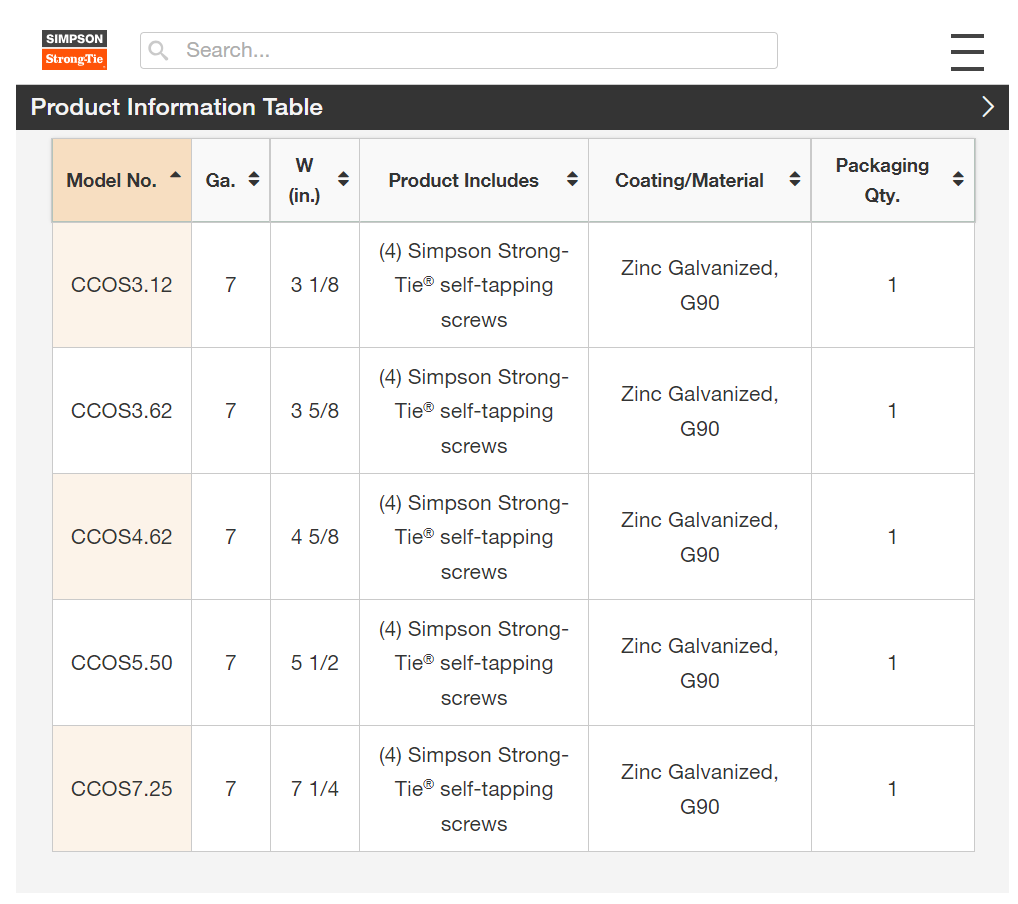

Specifications

• Model Number: CCOS4.62
• Brand: Simpson Strong-Tie
• Gauge: 7
• Seat Width: 4-5/8 in.
• Member Size: Triple 2x10, triple 2x12
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Country of Origin: United States

What's Included

Each pack contains (1) CCOS4.62 Steel- Column Cap, (4) self-tapping screws.

Approved Applications

• Attach steel column cap to column end plate with (4) self-tapping screws (included) and 5/16 in. hex driver
• Attach to girder with 0.148 in. x 3 in. nails
• Field welding to a steel column
• Column-to-beam connections using triple 2x10 or triple 2x12 lumber

Frequently Asked Questions

What beam sizes is the CCOS4.62 compatible with?

The CCOS4.62 is designed for use with triple 2x10 and triple 2x12 beams, accommodating both solid sawn lumber and engineered wood products.

How is the CCOS4.62 attached to the column?

The steel column cap is attached to the column end plate using the four included self-tapping screws and a 5/16 in. hex driver. The cap-only design is intended specifically for field welding to a steel column.

What fasteners are used to connect the CCOS4.62 to the girder?

The column cap is attached to the girder using 0.148 in. x 3 in. nails.

What is the corrosion protection on the CCOS4.62?

The CCOS4.62 features a G90 zinc galvanized coating, which provides a high level of corrosion resistance suitable for demanding construction environments.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
