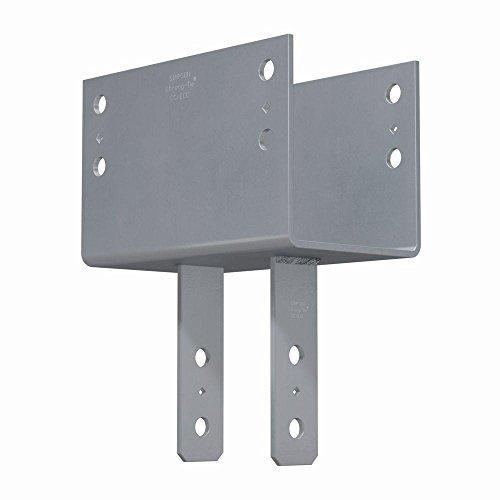

The Simpson CC7 1/8-7 1/8 Column Cap is a heavy-duty bolted connector engineered for reliable column-to-beam load transfer in wood frame construction. Designed by Simpson Strong-Tie to pair a 7-inch beam with a 7-inch post, this column cap provides a structurally sound connection for post and beam assemblies where consistent performance and code-compliant hardware are non-negotiable. Its wide bearing seat distributes load efficiently across the connection, making it a dependable choice for structural applications subject to demanding vertical and lateral forces.

Key Features

• Certified Welds - Delivers verified strength and loading confidence at every connection point, reducing uncertainty in critical structural joints.
• Increased Uplift Load Capacity - Engineered to resist the elevated uplift forces common in high-wind and seismic conditions, helping the connection hold where it matters most.
• NDS Code-Compliant Bolt Spacing - Meets established engineering standards for bolt placement, supporting straightforward inspection and approval on permitted projects.
• Wide Bearing Seat - Extends beyond each side of the column to distribute beam loads efficiently, reducing point stress and supporting long-term connection integrity.
• Simpson Strong-Tie Gray Paint Finish - Provides a consistent, recognized finish suited to covered structural environments and compatible with standard installation workflows.
• 3/4 in. Bolt Size - Sized for heavy-duty fastening that keeps the connector securely anchored under both gravity and uplift loading scenarios.

Why This Product

• Purpose-built for 7-inch post and beam assemblies - The CC7 1/8-7 1/8 is sized specifically for 7-inch structural members, eliminating guesswork and ensuring a precise fit in heavy timber and dimensional lumber applications without field modification.
• Engineered for seismic and high-wind conditions - With increased uplift load capacity built into the design, this column cap is a practical hardware choice for structural connections in regions where earthquake or wind forces govern the design.
• Made in the United States by Simpson Strong-Tie - Backed by a brand with a long track record in structural connectors, this cap is produced domestically to consistent quality standards that builders and engineers rely on.
• Flexible for non-standard applications - Straps may be rotated 90 deg. and an optional W2 dimension can be specified, making this connector adaptable to a range of post and beam configurations beyond the standard layout.

Specifications

• Model Number: CC7 1/8-7 1/8
• Finish: Simpson Strong-Tie gray paint
• Beam Width (in.): 7
• Width 1: 7-1/8 in.
• Length: 13 in.
• Height 1: 8 in.
• Width 2: 7-1/8 in.
• W1 Dimension (in.): 7 1/8
• W2 Dimension (in.): 7 1/8
• L Dimension (in.): 13
• H1 Dimension (in.): 8
• Bolt Size: 3/4 in.
• Brand: Simpson Strong-Tie
• Country of Origin: United States

Approved Applications

• Column-to-beam connections in wood frame construction
• Post and beam structural assemblies requiring load transfer from beam to column
• Applications subject to elevated uplift forces from earthquake or high-wind loading
• Structural connections utilizing 7-inch posts and beams requiring NDS-compliant hardware

Options

• Contact us for Configurable Options and Special orders
• Straps may be rotated 90 deg.
• For special, custom, or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)

Frequently Asked Questions

What beam and post sizes is the CC7 1/8-7 1/8 designed to fit?

The CC7 1/8-7 1/8 is designed for use with 7-inch beams and 7-inch posts, making it suitable for heavy-duty wood construction applications where those specific member dimensions are used.

What makes the CC7 1/8-7 1/8 suitable for earthquake or high-wind conditions?

This column cap features increased uplift load capacity, which is specifically engineered to handle the elevated uplift forces associated with earthquake or wind loading conditions, along with certified welds that provide confidence in strength and loading performance at every connection point.

Does the CC7 1/8-7 1/8 meet any recognized structural design standards?

Yes, the bolt spacing on the CC7 1/8-7 1/8 meets National Design Specification (NDS) requirements for optimal structural performance, ensuring code-compliant connections in demanding wood construction projects.

Are there any features that make installation easier?

Yes, the CC7 1/8-7 1/8 includes diamond holes that allow for convenient temporary fastening during installation, and its extended bearing seat provides additional surface area that extends beyond each side of the column, helping to simplify load alignment and placement during the installation process.
