Product Description

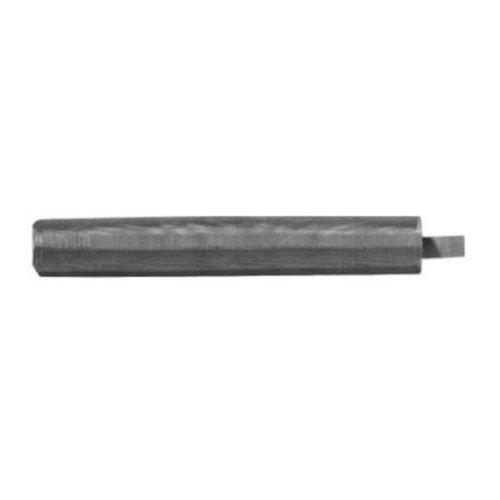

Simpson 17" Stainless-Steel Screen Tube for AT-XP Adhesive, 3/4" Rod (ATS7517) - is a precision-engineered Simpson Strong-Tie anchoring accessory designed specifically for use with AT-XP adhesive in hollow base material applications. The screen tube contains adhesive around the anchor and prevents it from running into voids, ensuring thorough coating and bonding of the rod to both the screen tube and the surrounding base material.
Key Features
- Specifically designed to work with AT-XP adhesives for precise control of adhesive flow through the mesh
- Constructed of stainless steel for enhanced durability and corrosion resistance

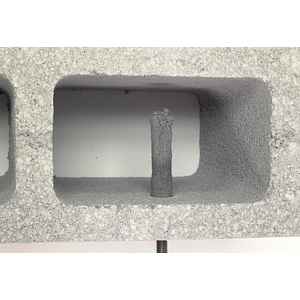

- Designed for hollow base material applications, containing adhesive around the anchor and preventing it from running into voids
- Mesh design allows thorough coating and bonding of the rod to the screen tube and base material
- Sized for a 3/4" rod diameter with a corresponding 1" hole diameter
- Outside diameter of 31/32" is intentionally larger than the rod diameter for proper fit and adhesive distribution
- 17" length accommodates deeper anchor embedment requirements
- Made in the United States
Specifications
- Model No.: ATS7517
- Description: ATS stainless-steel screen tube for AT-XP
- Rod Dia. (in.): 3/4
- Hole Dia. (in.): 1
- Outside Diameter (in.): 31/32
- Length (in.): 17
- Material: Stainless Steel
- Packaging: Packs of 1 and Cartons of 25
- Country of Origin: United States
Frequently Asked Questions
- What adhesive is this screen tube designed to be used with?
- This screen tube is specifically designed to work with AT-XP adhesive. The mesh is engineered to precisely control the amount of AT-XP adhesive that passes through, resulting in thorough coating and bonding of the rod to the screen tube and base material.
- What is the purpose of a screen tube in an anchoring application?
- Screen tubes are used in hollow base material applications to contain adhesive around the anchor and prevent it from running into voids. This ensures that the adhesive is properly distributed around the rod for a reliable bond.
- Why is the outside diameter of the screen tube larger than the rod diameter?
- The actual outside diameter of the screen tube is intentionally larger than the rod diameter. For this model, the outside diameter is 31/32" while the rod diameter is 3/4". This sizing allows the screen tube to fit properly within the 1" drilled hole and ensures adequate space for adhesive distribution around the rod.
- How should I select the correct screen tube for my application?
- Screen tubes should be ordered based upon rod diameter and adhesive type. The ATS7517 is the correct choice when working with a 3/4" rod diameter and AT-XP adhesive, requiring a 1" drilled hole in the base material.
