Product Description

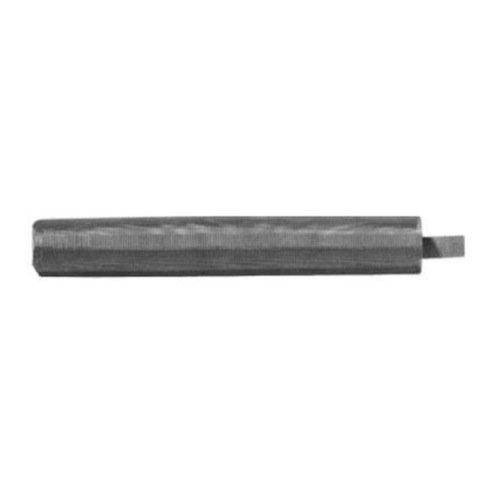

Simpson 8" Stainless-Steel Screen Tube for AT-XP Adhesive, 3/4" Rod (ATS758) - is a Simpson Strong-Tie engineered screen tube designed specifically for use with AT-XP adhesive in hollow base material anchoring applications. By precisely controlling the amount of adhesive that passes through the mesh, this screen tube ensures thorough coating and bonding of the rod to both the screen tube and the surrounding base material, delivering reliable, consistent anchor performance.
Key Features
- Specifically designed to work with AT-XP adhesives for precise adhesive flow control through the mesh
- Constructed of stainless steel for enhanced durability and corrosion resistance

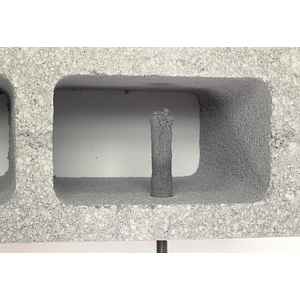

- Designed for hollow base material applications to contain adhesive around the anchor and prevent it from running into voids
- Ensures thorough coating and bonding of the rod to the screen tube and base material
- Outside diameter of the screen tube is larger than the rod diameter for proper fit within the drilled hole
- Made in the United States
Specifications
- Model Number: ATS758
- Description: ATS stainless-steel screen tube for AT-XP
- Rod Diameter (in.): 3/4
- Hole Diameter (in.): 1
- Outside Diameter (in.): 31/32
- Length (in.): 8
- Packaging: Packs of 1 and Cartons of 25
- Country of Origin: United States
Frequently Asked Questions
- What adhesive is this screen tube designed to be used with?
- This screen tube is specifically designed to work with Simpson Strong-Tie AT-XP adhesive. The mesh is engineered to precisely control the amount of AT-XP adhesive that passes through, ensuring thorough coating and bonding of the anchor rod to the screen tube and base material.
- What is the purpose of a screen tube in anchoring applications?
- Screen tubes are used in hollow base material applications to contain adhesive around the anchor and prevent it from running into voids. This containment ensures the adhesive bonds properly around the rod rather than being lost into empty spaces within the base material.
- What rod diameter is this screen tube sized for, and what hole diameter is required?
- The ATS758 screen tube is sized for a 3/4-inch diameter rod and requires a 1-inch diameter drilled hole. Note that the actual outside diameter of the screen tube (31/32 inch) is larger than the rod diameter, which is standard for proper installation within the drilled hole.
- How should the correct screen tube be selected for a given application?
- Screen tubes should be ordered based upon rod diameter and adhesive type. The ATS758 is the correct selection for 3/4-inch rod diameter applications using AT-XP adhesive in hollow base materials.
