Product Description

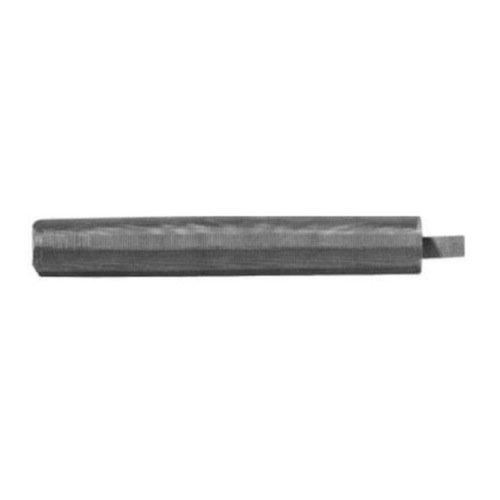

The Simpson 13" Stainless-Steel Screen Tube for AT-XP, 3/4" Rod (ATS7513) by Simpson Strong-Tie is an engineered anchoring accessory designed for use in hollow base material applications. These screen tubes contain adhesive around the anchor and prevent it from running into voids, ensuring reliable, consistent performance when used with AT-XP adhesive systems.
Key Features
- Specifically designed to work with AT-XP adhesives for precise adhesive flow control through the mesh
- Stainless-steel construction provides durability and resistance in demanding installation environments
- Mesh design allows thorough coating and bonding of the rod to the screen tube and base material
- Ideal for hollow base material applications where adhesive containment is critical
- Outside diameter (31/32") is intentionally larger than the rod diameter (3/4") for proper fit and adhesive distribution
- 13-inch length accommodates standard anchoring depths for 3/4" rod installations
- Made in the United States
Specifications
- Model No.: ATS7513
- Description: ATS stainless-steel screen tube for AT-XP
- Rod Dia. (in.): 3/4
- Hole Dia. (in.): 1
- Outside Diameter (in.): 31/32
- Length (in.): 13
- Packaging: Packs of 1 and Cartons of 25
- Country of Origin: United States
Frequently Asked Questions
- What type of adhesive is the ATS7513 screen tube designed to work with?
- The ATS7513 stainless-steel screen tube is specifically designed to work with AT-XP adhesives. The mesh is engineered to precisely control the amount of adhesive that passes through, resulting in thorough coating and bonding of the rod to the screen tube and base material.
- Why is the outside diameter of the screen tube larger than the rod diameter?
- The actual outside diameter of the screen tube (31/32") is intentionally larger than the rod diameter (3/4"). This design ensures the screen tube fits properly within the drilled hole (1" diameter) and allows the adhesive to fully surround and bond with both the rod and the base material.
- What size hole should be drilled when using the ATS7513 screen tube?
- The ATS7513 is designed for use with a 1-inch diameter hole. This accommodates the 31/32" outside diameter of the screen tube while providing the proper clearance for adhesive distribution around the anchor.

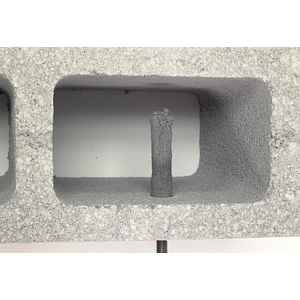

- Why are screen tubes necessary for hollow base material applications?
- In hollow base materials, voids beneath the surface can cause adhesive to flow away from the anchor, resulting in an inconsistent or weakened bond. Screen tubes contain the adhesive around the anchor rod, preventing it from escaping into voids and ensuring a complete, reliable bond between the rod and the base material.
