Product Description

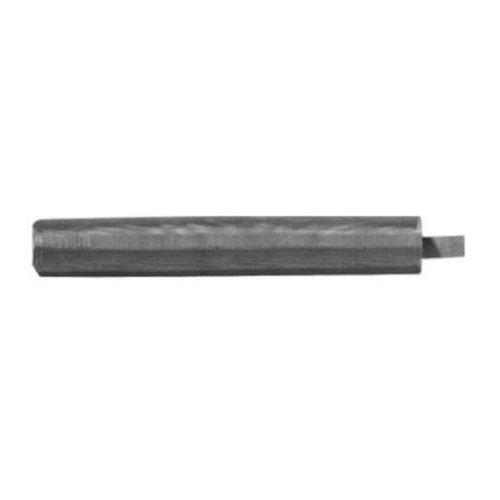

The Simpson Strong-Tie ETS3710 10-in. Steel Epoxy-Adhesive Screen Tube for 3/8-in. Rod is a precision-engineered carbon steel screen tube designed for hollow base material anchoring applications. Manufactured by Simpson Strong-Tie, this screen tube contains adhesive around the anchor and prevents it from running into voids during installation. Specifically designed for use with Simpson Strong-Tie ET-3G epoxy adhesive, its 60 mesh carbon steel construction precisely controls the amount of adhesive that passes through the mesh, resulting in thorough coating and bonding of the rod to the screen tube and base material.
Key Features
- Specifically designed for use with Simpson Strong-Tie ET-3G epoxy adhesive formulations - screen tubes are designed for a specific adhesive type and must be matched accordingly
- Sized for 3/8-in. rod diameter, providing a precise fit for reliable anchoring performance
- 10-in. length accommodates a range of hollow base material anchoring depths
- Constructed from 60 mesh carbon steel for consistent adhesive flow control and durable performance
- Hole size of 9/16 in. ensures proper placement and adhesive containment within the base material
- Controls the amount of adhesive passing through the mesh for thorough rod-to-base-material bonding
- Prevents adhesive from running into voids in hollow base material applications
Specifications
- MPN: ETS3710
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Finish: Carbon Steel
- Bolt/Rod Diameter: 3/8 in.
- Outside Diameter: 15/32 in.
- Hole Size: 9/16 in.
- Length: 10 in.
- Mesh: 60 mesh
- Compatible Adhesive: Simpson Strong-Tie ET-3G epoxy adhesive
- Packaging: Packs of 1 and Cartons of 100
- Country of Origin: China
Approved Applications
- Hollow base material anchoring applications requiring adhesive containment
- Anchoring threaded rod of 3/8-in. diameter using epoxy adhesive
- Applications where adhesive must be prevented from flowing into voids within the base material
- Use with Simpson Strong-Tie ET-3G epoxy adhesive dispensing systems
Frequently Asked Questions
- What adhesive is the Simpson ETS3710 screen tube compatible with?
- The ETS3710 screen tube must be used with Simpson Strong-Tie ET-3G epoxy adhesive formulations. Screen tubes are designed for a specific adhesive type, so it is important to verify adhesive compatibility before installation.
- What rod diameter is the ETS3710 screen tube designed for?
- The ETS3710 is designed for use with a 3/8-in. rod diameter. The corresponding hole size is 9/16 in., and the outside diameter of the screen tube is 15/32 in.

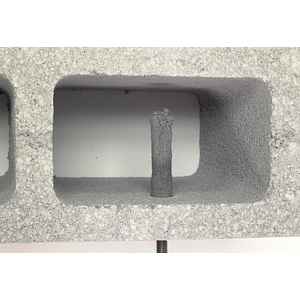

- Why are screen tubes used in hollow base material applications?
- Screen tubes are used in hollow base material applications to contain adhesive around the anchor and prevent it from running into voids. This ensures thorough coating and bonding of the rod to both the screen tube and the base material.
- What is the length of the ETS3710 screen tube, and what is it made from?
- The ETS3710 screen tube measures 10 in. in length and is made from 60 mesh carbon steel. The mesh construction precisely controls the amount of adhesive that passes through, resulting in consistent and reliable bonding performance.
