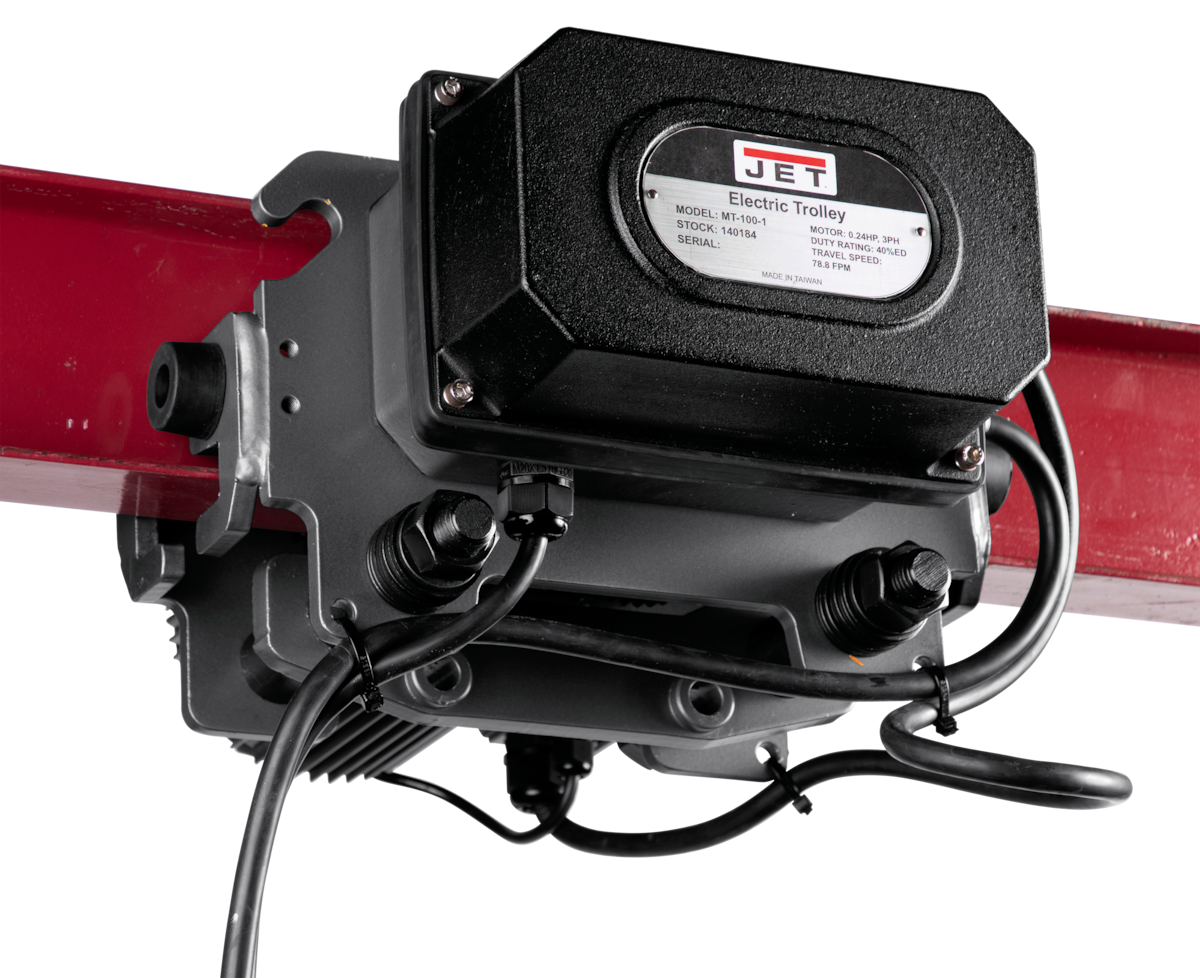

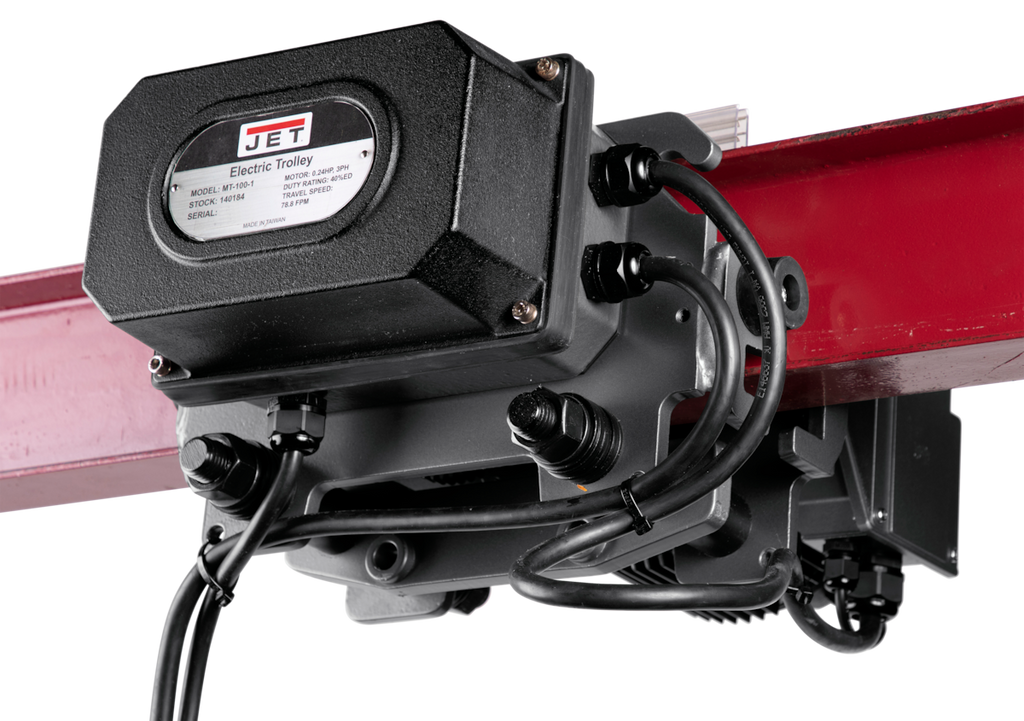

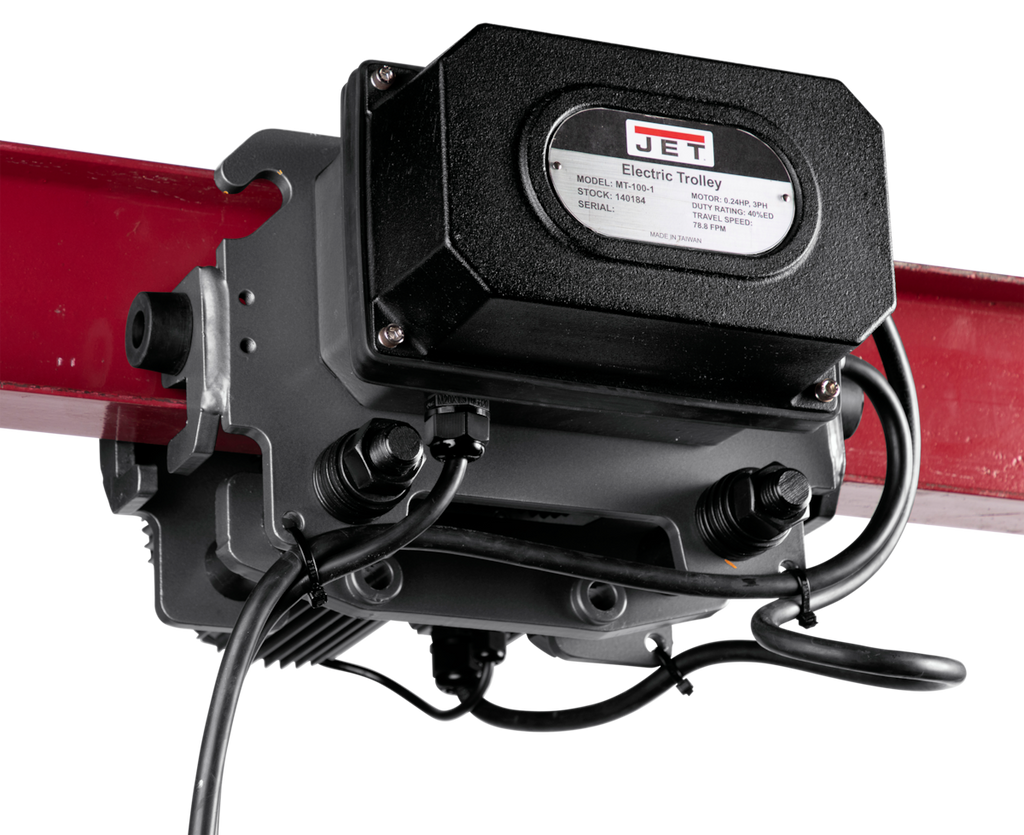

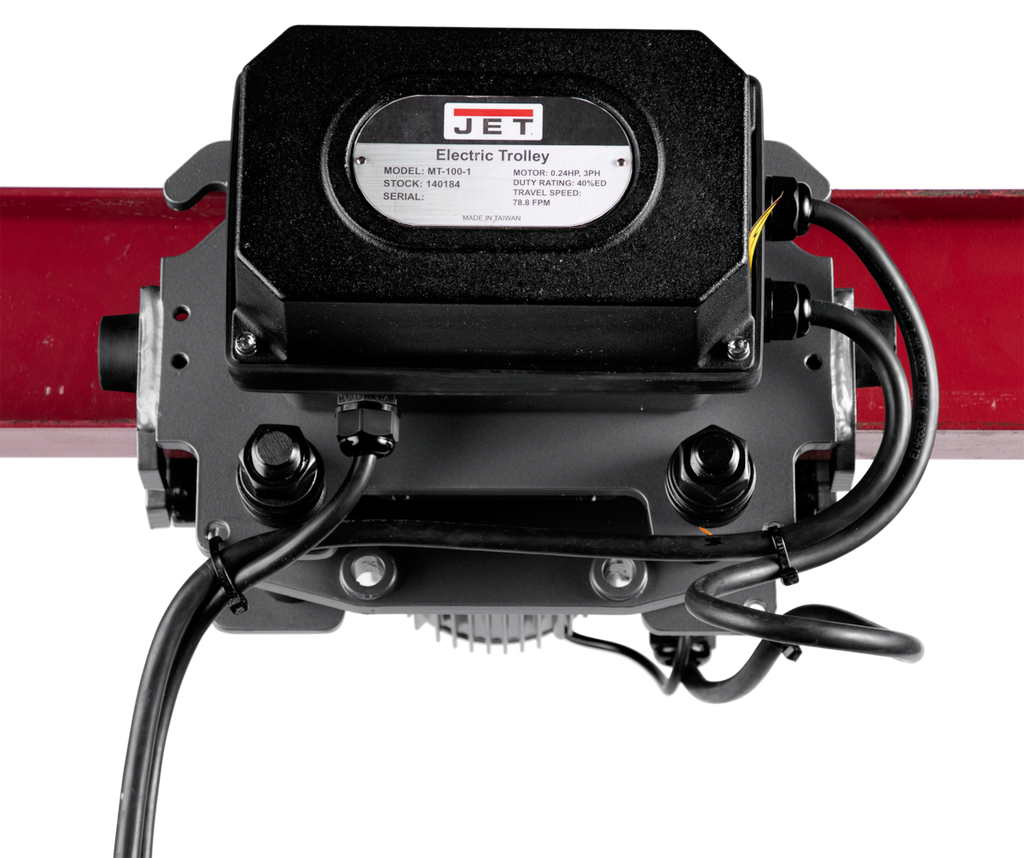

JET MT200-4 2 Ton Two Speed Electric Trolley (3-Phase, 460V) - MPN: JT9-144187 - is a heavy-duty industrial trolley engineered by JET for safe, reliable, and efficient material movement in demanding workplaces. With a rated capacity of 4,400 lbs and a robust two-speed drive system, this trolley gives operators precise control over load travel - from high-speed repositioning down to careful, bump-free placement - making it an ideal solution for overhead material handling in both indoor and outdoor environments.
Key Features

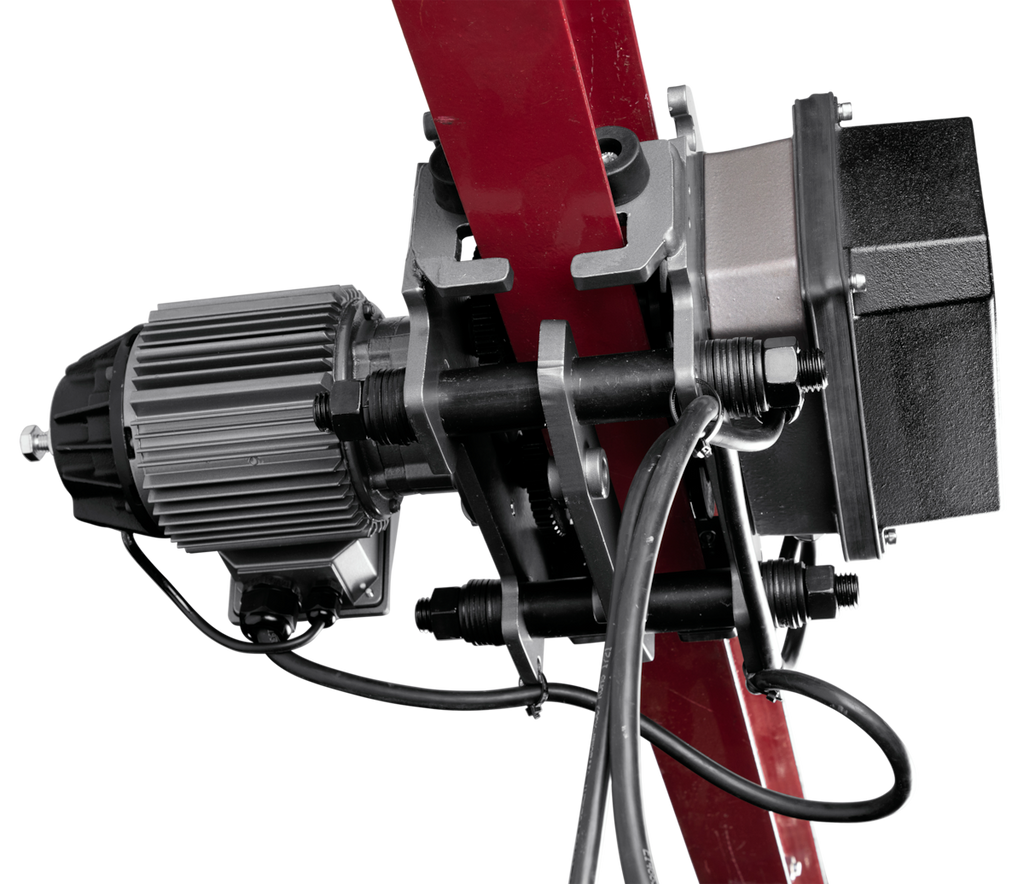

- Heavy-duty motor puts out up to 0.8 HP, making it the strongest in its class for superior performance under load
- Two speeds reduce bump firing while still allowing high-speed movement of materials, giving operators greater control and safety
- TAA Approved, meeting Trade Agreements Act compliance requirements for qualifying procurement applications

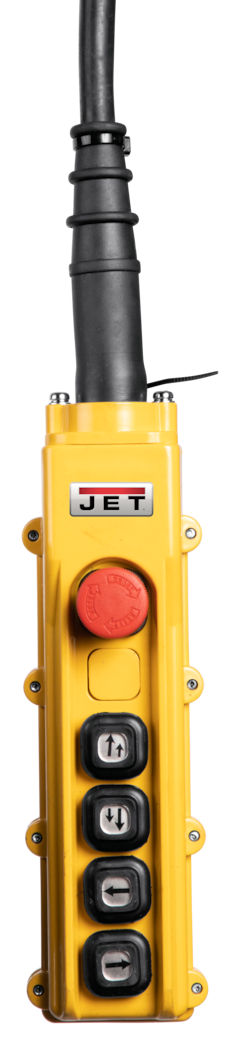

- IP-55 rated trolley body and IP-65 rated pendant enable reliable use in both indoor and outdoor environments, including exposure to dust and moisture
- Expanded flange capacity kits are available to accommodate a wider range of beam flange widths beyond standard configuration
- High travel speed of 79 FPM and low travel speed of 20 FPM deliver efficiency and accuracy with every load cycle
Specifications
- MPN: JT9-144187
- Brand: JET
- Country of Origin: Taiwan
- Capacity (Lbs.): 4,400
- Load Capacity (Tons): 2
- Motor (HP): 0.12 / 0.50
- Motor Voltage (V.): 460
- Phase: 3-Phase
- Travel Speed - Low (FPM): 20.0
- Travel Speed - High (FPM): 79.0

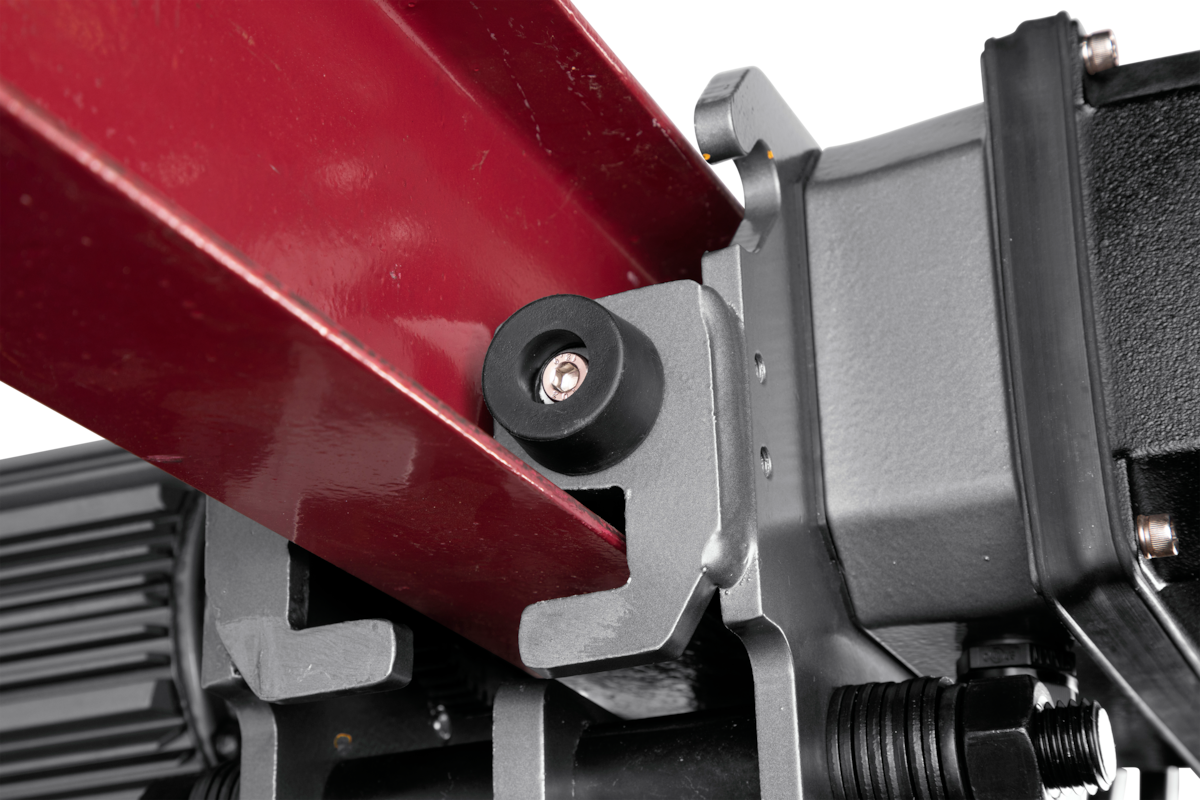

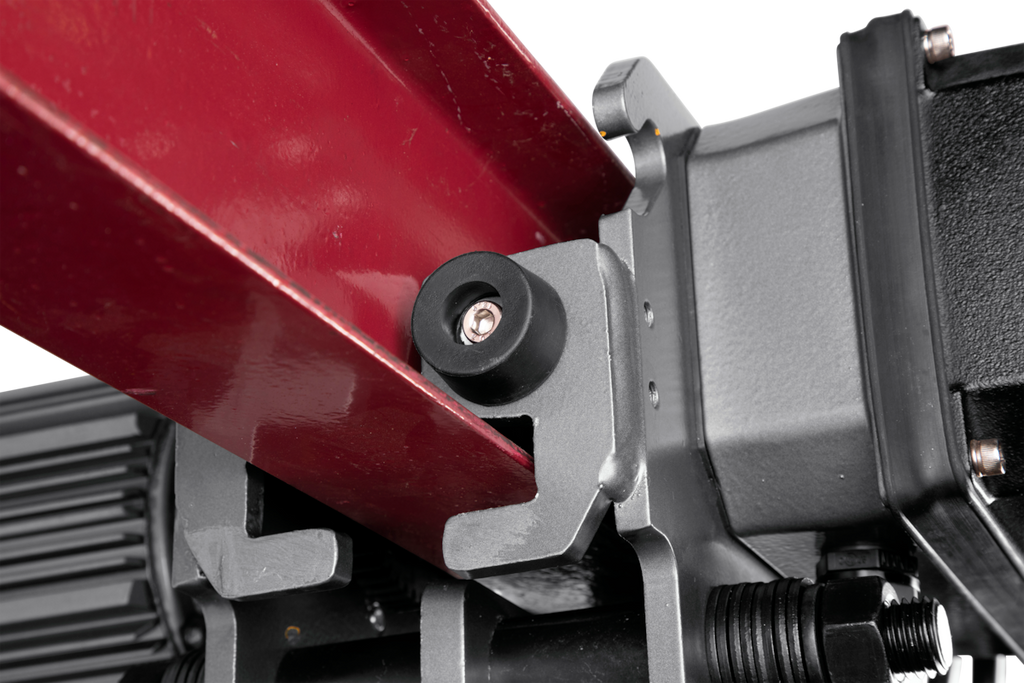

- Minimum Beam Flange Width (In.): 4
- Maximum Beam Flange Width (In.): 6
- Minimum Beam Curve Radius (In.): 66.9
- Wheel Diameter (In.): 1-1/4
- Wheel to Hook Mount (In.): 3.8
- Weight (Lbs.): 126
- IP Rating - Trolley: IP-55
- IP Rating - Pendant: IP-65
- Prop 65: Cancer and Reproductive Harm
- Stock Number: 144187
Frequently Asked Questions
- What is the maximum load capacity of the JET MT200-4 electric trolley?
- The JET MT200-4 has a rated load capacity of 4,400 lbs (2 tons), making it suitable for heavy industrial material handling applications.
- Can the JET MT200-4 be used outdoors?
- Yes. The trolley carries an IP-55 rating and the pendant carries an IP-65 rating, which means both are designed for indoor and outdoor use and offer protection against dust and water ingress.
- What are the two travel speeds and why does it matter?
- The trolley operates at a high travel speed of 79 feet per minute and a low travel speed of 20 feet per minute. The two-speed design reduces bump firing while still allowing high-speed movement of materials, so operators can reposition loads quickly and then slow down for precise, controlled placement.
- What beam flange widths is the MT200-4 compatible with, and can it be expanded?
- The trolley is compatible with beam flange widths between 4 inches (minimum) and 6 inches (maximum) in its standard configuration. Expanded flange capacity kits are available to accommodate beams outside this standard range.
