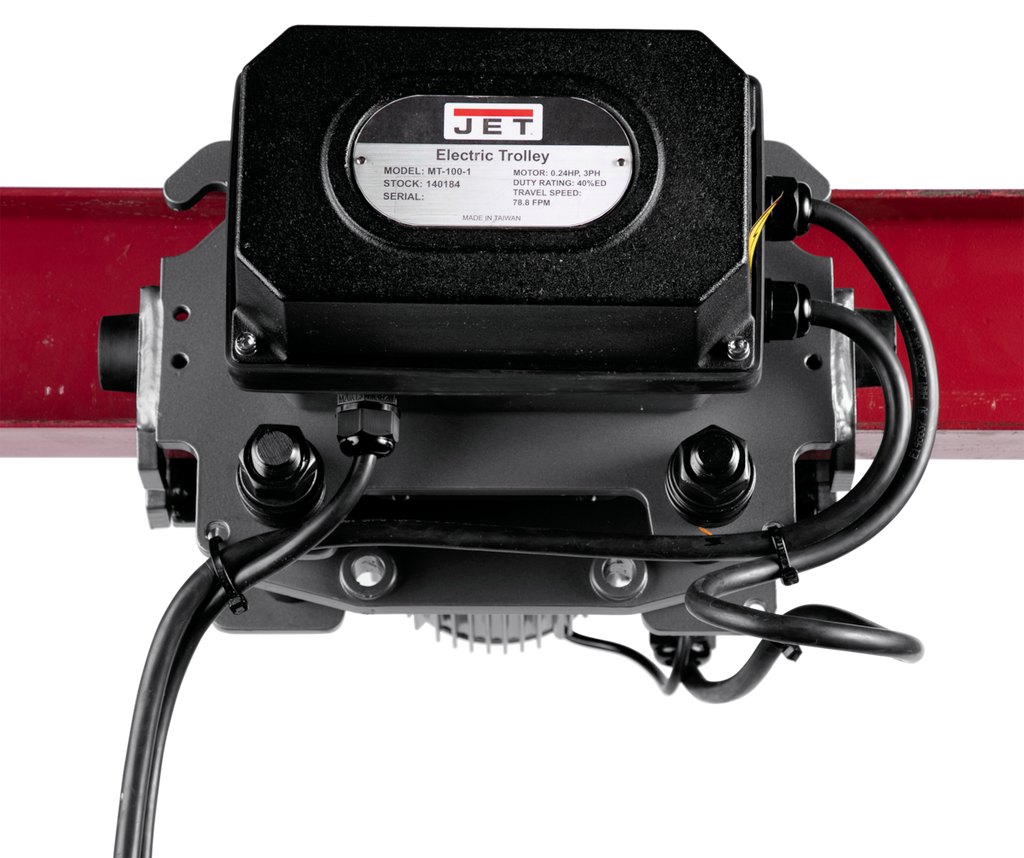

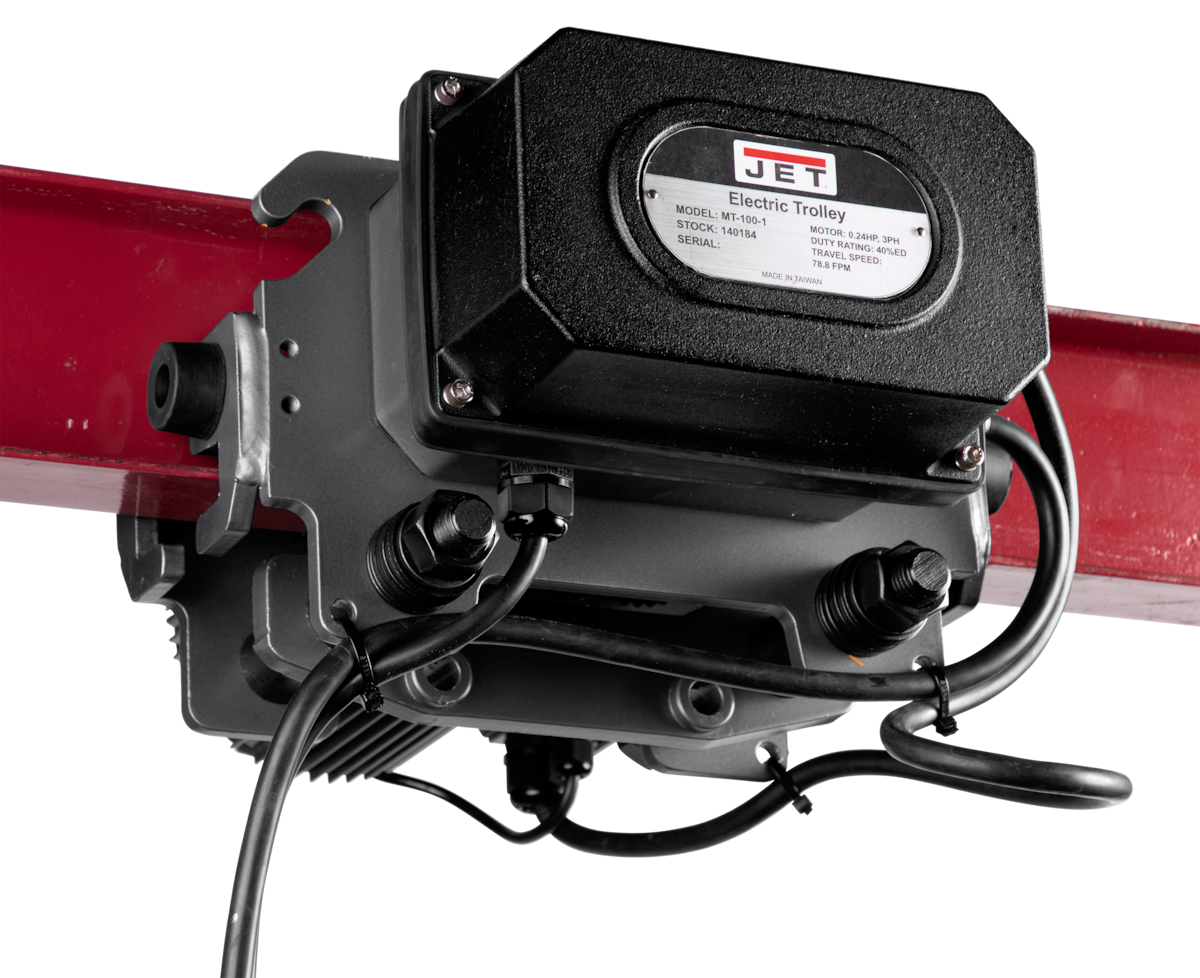

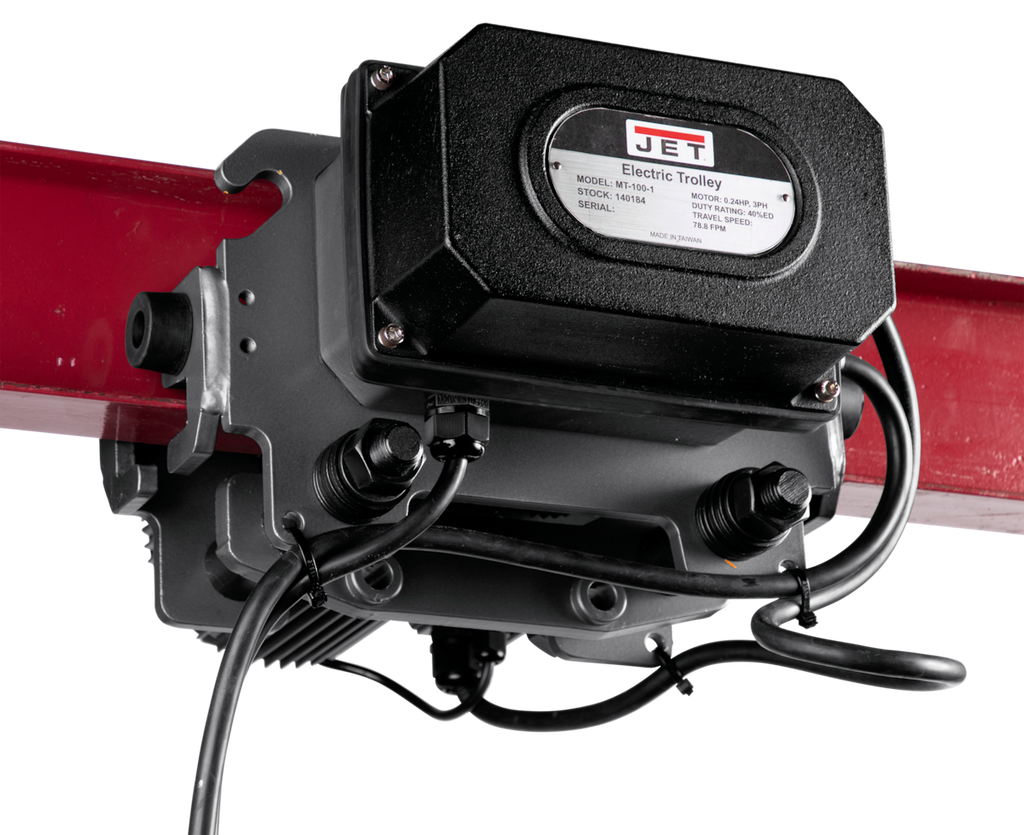

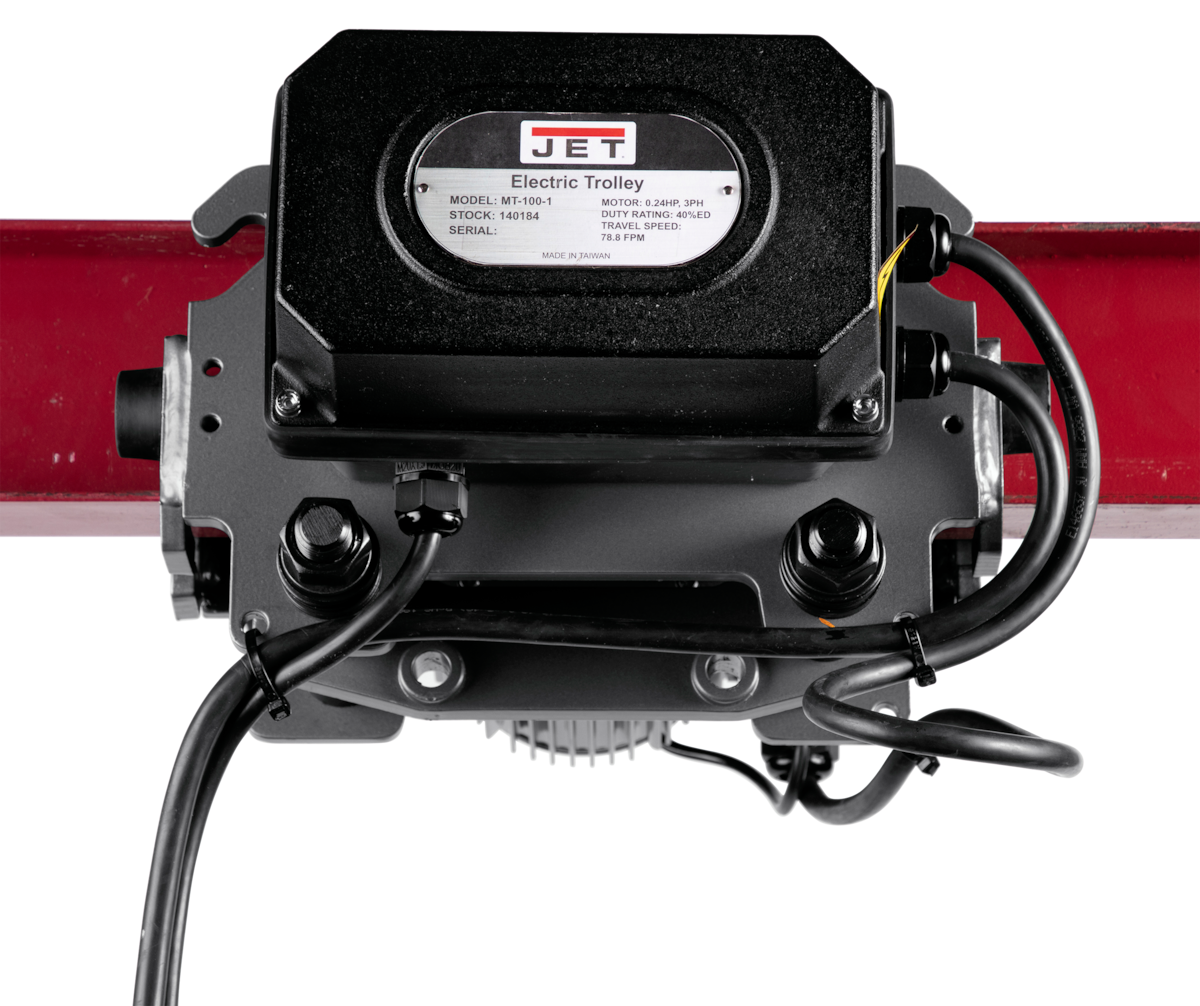

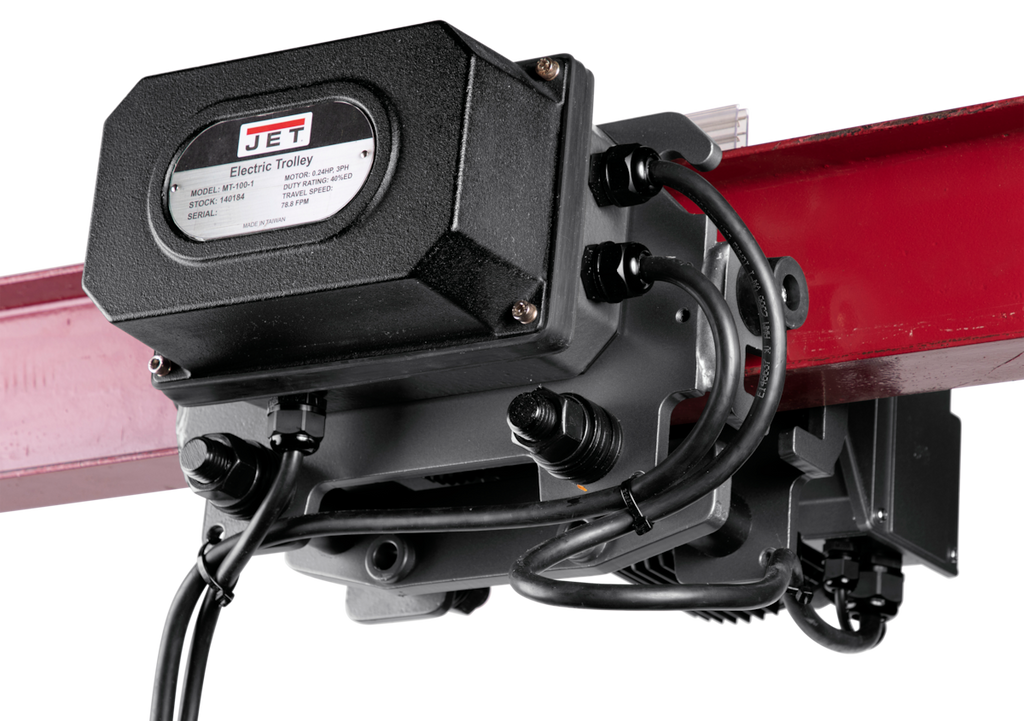

JET MT100-4 1 Ton Two Speed Electric Trolley (3-Phase 460V) - MPN: JT9-144185 - is a JET heavy-duty electric trolley engineered for safe, efficient, and reliable material movement in demanding industrial environments. Built for both indoor and outdoor use, this trolley delivers precise load placement with two travel speeds, making it an ideal solution for production facilities, fabrication shops, and warehouses requiring dependable overhead material handling up to 2,200 lbs.
Key Features

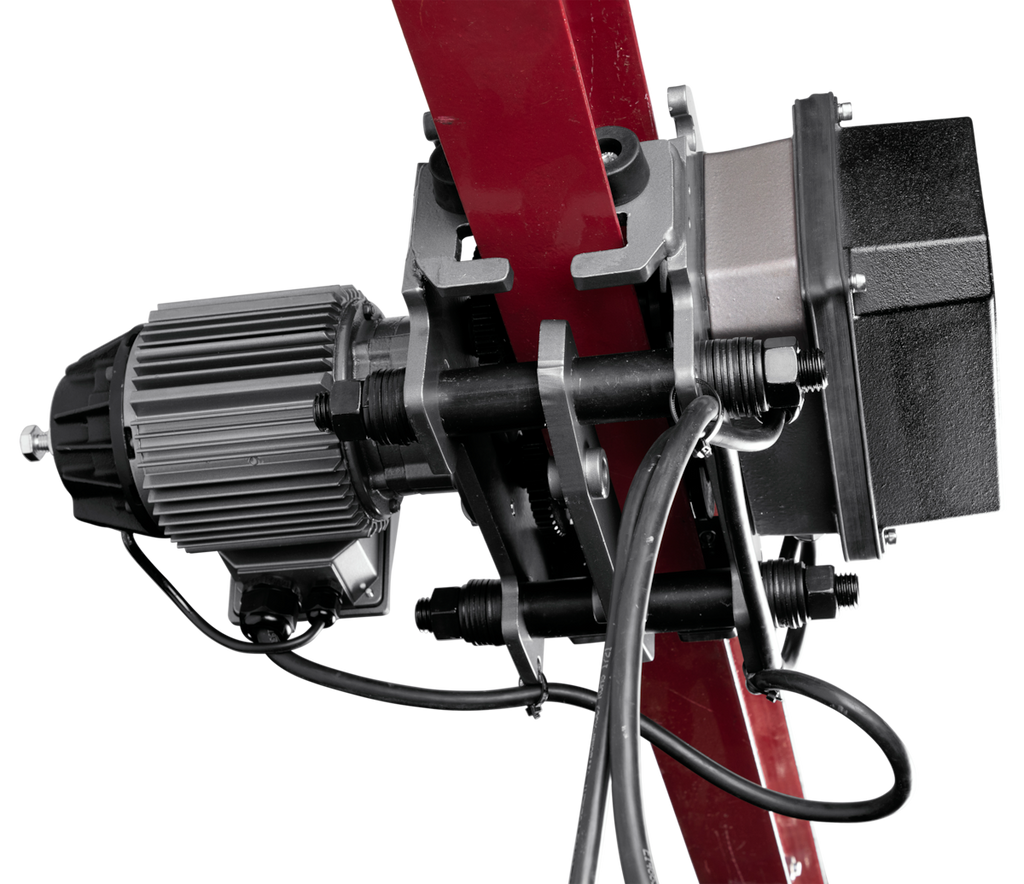

- Heavy-Duty motor puts out up to 0.8HP making it the strongest in its class
- TAA Approved
- Two speeds reduce bump firing while still allowing for high-speed movement of materials

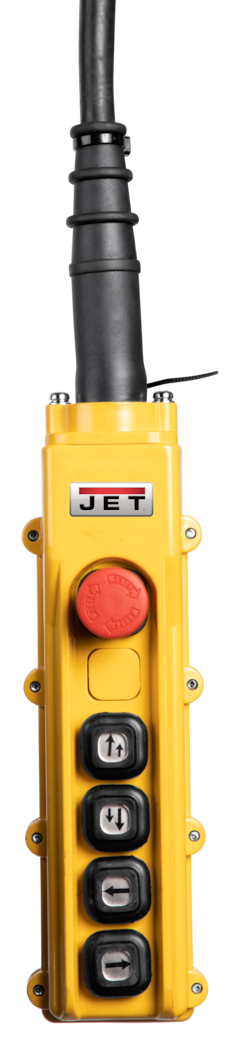

- Indoor and Outdoor use with IP-55 rating for trolley and IP-65 rating for the pendant
- Expanded flange capacity kits are available
- Safe travel speeds from 20 FPM (low) up to 79 FPM (high) for precise load control at every stage of the lift cycle

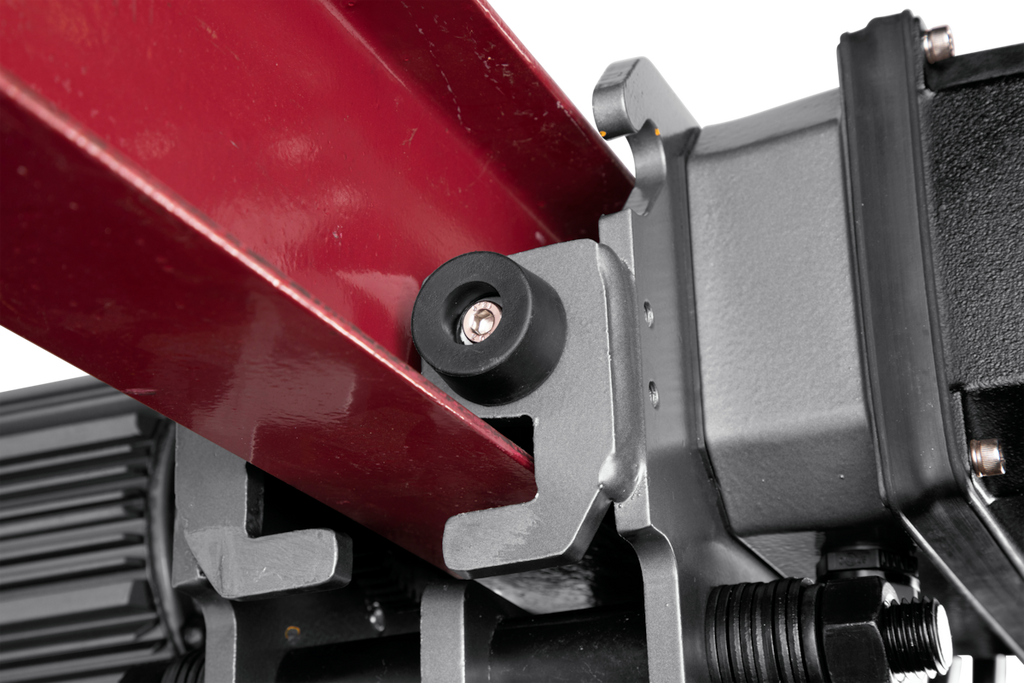

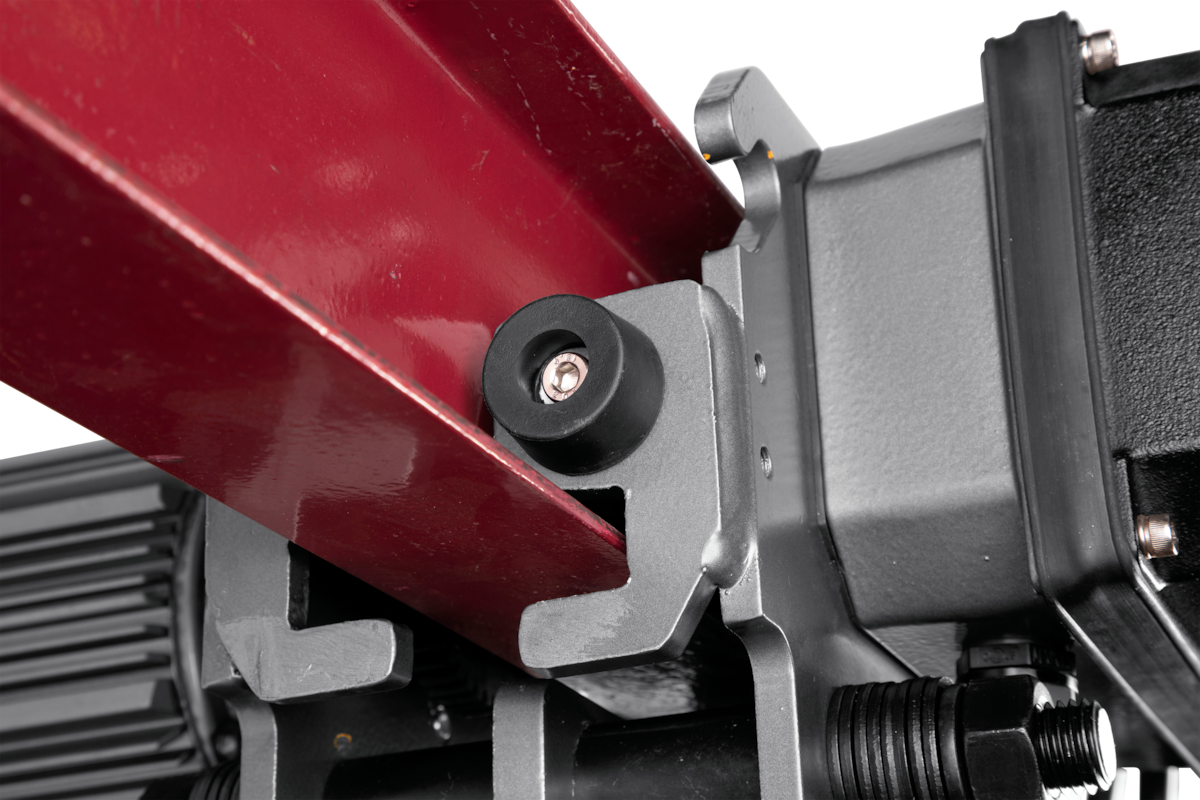

- Supports beam flange widths from 3 in. minimum to 5 in. maximum, with a minimum beam curve radius of 51.2 in.
Specifications
- MPN: JT9-144185
- Country of Origin: Taiwan
- Capacity (Lbs.): 2200
- Load Capacity (Tons): 1
- Motor (HP): .05 / 0.24
- Motor Voltage (V.): 460
- Travel Speed - Low (FPM): 20.0000
- Travel Speed - High (FPM): 79.0000
- Minimum Beam Flange Width (In.): 3
- Maximum Beam Flange Width (In.): 5
- Minimum Beam Curve Radius (In.): 51.2
- Wheel Diameter (In.): 1
- Wheel to Hook Mount (In.): 3.7000
- Weight (Lbs.): 99
- IP Rating (Trolley): IP-55
- IP Rating (Pendant): IP-65
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What is the maximum load capacity of the JET MT100-4 electric trolley?
- The JET MT100-4 has a rated capacity of 2,200 lbs. (1 Ton), making it well suited for moving heavy loads along an overhead beam in industrial settings.
- Can this electric trolley be used outdoors?
- Yes. The MT100-4 is rated for both indoor and outdoor use. The trolley carries an IP-55 rating and the pendant carries an IP-65 rating, providing protection against dust and water ingress in open or semi-exposed environments.
- Why does this trolley have two travel speeds?
- Two speeds reduce bump firing while still allowing for high-speed movement of materials. The high speed of 79 FPM lets you move loads quickly across long spans, while the low speed of 20 FPM gives you the precise control needed to position loads exactly where they need to go.
- Are expanded flange capacity kits available for the MT100-4?
- Yes. Expanded flange capacity kits are available, allowing the trolley to be adapted to beams with wider flange dimensions beyond the standard 3 in. to 5 in. range.
