Product Features
Product Description

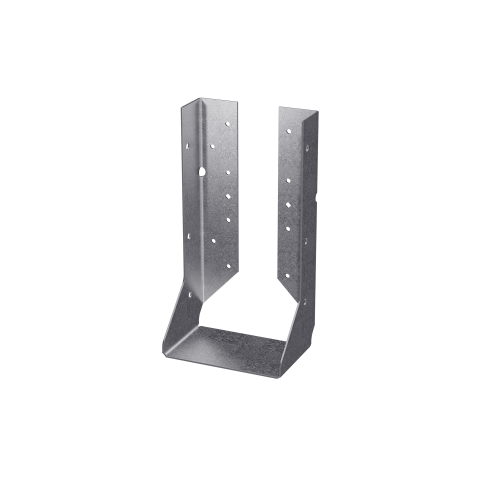

The Simpson HUCQ210-3SS-SDS is a heavy-duty, face-mount concealed-flange joist hanger engineered for structures requiring additional strength and safety factors. Designed to support a triple 2x10 nominal joist, this stainless-steel hanger features concealed header flanges that deliver cleaner, more refined lines in exposed conditions while maintaining maximum structural performance. The face-mount design allows installation close to the end of the supporting beam, providing flexibility in tight framing scenarios. Built from 14-gauge stainless steel, the HUCQ210-3SS-SDS offers high and severe corrosion resistance, making it an ideal choice for demanding environments. Installation is fast and efficient - no predrilling required - thanks to the included Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws, which deliver high load capacity straight out of the box.
Key Features
- Concealed Flanges: Concealed header flanges provide cleaner lines for exposed conditions, maintaining a professional aesthetic without sacrificing structural integrity.
- Tested, Load Rated & Code Compliant: HUCQ-series hangers are tested, load rated, and code compliant for reliable performance and peace of mind on every project.
- SDS Screws Included: Strong-Drive SDS Heavy-Duty Connector screws are included, delivering high capacity with no predrilling required for ease of installation.
- Versatile Installation: Compatible with wood joists installed to wood, masonry, and concrete substrates.
- High & Severe Corrosion Resistance: Manufactured from stainless steel, this hanger is built to withstand high and severe corrosion environments.
- Heavy-Duty 14-Gauge Construction: Made from 14-gauge steel for robust, long-lasting structural support.
- Seat Width: 4-5/8 in. seat width optimized for a triple 2x10 member.
- Close-to-End Installation: Face-mount design allows installation close to the end of the supporting beam.
Specifications
- Model Number (MPN): HUCQ210-3SS-SDS
- Nominal Joist / Member Size: Triple 2x10
- Seat Width: 4-5/8 in.
- Material: Stainless Steel
- Finish: Stainless Steel
- Gauge: 14-Gauge
- Installation Fasteners (Header): (12) 1/4 in. x 2-1/2 in. Type 316 stainless-steel SDS screws
- Installation Fasteners (Joist): (6) 1/4 in. x 2-1/2 in. Type 316 stainless-steel SDS screws
- Country of Origin: United States
Approved Applications
- Structures requiring additional strength and elevated safety factors
- Wood joist connections to wood supporting members
- Wood joist connections to masonry supporting members
- Wood joist connections to concrete supporting members
- Exposed framing conditions where concealed flanges provide cleaner aesthetics
- Installations requiring close-to-end placement on the supporting beam
- High and severe corrosion environments where stainless steel is required
What's Included
- (1) HUCQ210-3SS-SDS Triple 2x10 Stainless-Steel Heavy Face-Mount Concealed-Flange Joist Hanger
- (18) 1/4 in. x 2-1/2 in. Type 316 stainless-steel Strong-Drive SDS Heavy-Duty Connector screws
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What joist size is this hanger designed to support?
- The HUCQ210-3SS-SDS is specifically designed for a triple 2x10 nominal joist size. It features a seat width of 4-5/8 in. to accommodate this configuration.
- Are screws included, and do I need to predrill before installation?
- Yes, screws are included. The hanger ships with 18 pieces of 1/4 in. x 2-1/2 in. Type 316 stainless-steel Strong-Drive SDS Heavy-Duty Connector screws - 12 for the header and 6 for the joist. No predrilling is required, making installation faster and easier.
- What substrates can this hanger be installed into?
- The HUCQ210-3SS-SDS supports the installation of wood joists to wood, masonry, and concrete substrates, offering flexibility across a variety of framing and structural applications.
- Why choose stainless steel for this hanger, and what grade of steel is used?
- The hanger is made from 14-gauge stainless steel, which provides high and severe corrosion resistance, making it well suited for demanding or exposed environments. The included SDS screws are also Type 316 stainless steel, ensuring consistent corrosion resistance throughout the connection.
