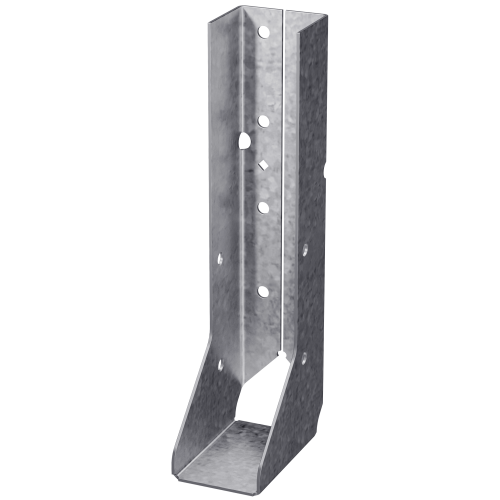

The Simpson Double 2x10 Face-Mount Joist Hanger with SDS Screws - Stainless is a heavy-duty concealed flange connector built for structural framing connections where strength, corrosion resistance, and installation flexibility are non-negotiable. Engineered by Simpson, this face-mount hanger is designed to carry double 2x10 joists or beams in residential and commercial construction, and its stainless steel construction makes it a dependable choice for exterior, treated-lumber, and corrosive-environment applications. Paired with Simpson Strong-Drive SDS Heavy-Duty Connector Screws, this hanger delivers a high-capacity connection that keeps demanding framing projects moving efficiently.

Key Features

• Heavy Concealed Flange Design - The header flange is hidden from view once installed, providing a cleaner finished appearance and meeting clearance requirements where exposed flanges are not acceptable.
• Stainless Steel Construction - Resists corrosion in exterior, high-humidity, and treated-lumber environments, extending the service life of the connection without the need for additional protective coatings.
• Compatible with Double 2x10 Lumber - Sized precisely for double 2x10 joist and beam connections, eliminating guesswork and ensuring a proper, structurally sound fit in standard framing layouts.
• Includes Simpson Strong-Drive SDS Heavy-Duty Connector Screws - These high-capacity fasteners install without predrilling, reducing labor time and keeping installation straightforward on busy job sites.
• Face-Mount Installation Close to Beam End - Designed to install near the end of the supporting beam, this hanger offers placement flexibility in tight framing conditions where standard hangers may not fit properly.
• 14-Gauge Material - Heavy-gauge construction delivers the additional strength and elevated safety factors required for demanding structural framing applications in both residential and commercial settings.

Why This Product

• Built for Corrosive and Treated-Lumber Environments - Stainless steel construction makes this hanger a practical, long-term choice for exterior decks, docks, and framing applications where standard galvanized hardware may deteriorate prematurely.
• No Predrilling Required - The included Simpson Strong-Drive SDS Heavy-Duty Connector Screws drive directly into the lumber, reducing installation steps and keeping projects on schedule without sacrificing connection strength.
• Concealed Flange Adds Versatility - The heavy concealed header flange satisfies both aesthetic and clearance requirements, making this hanger suitable for applications where a visible flange would be problematic or unacceptable.
• End-of-Beam Placement Capability - The ability to install close to the end of a supporting beam opens up framing configurations that would otherwise require design workarounds, saving time and materials on complex framing layouts.

Specifications

• Model Number: HUCQ210-2SS-SDS
• Manufacturer Part Number (MPN): HUCQ210-2SS-SDS
• Description: Double 2x10 HUCQ Heavy Concealed Flange Face-Mount Joist Hanger with SDS Screws
• Material Gauge: 14 Gauge
• Finish: Stainless Steel
• Hanger Type: Face-Mount Joist Hanger
• Flange Style: Heavy Concealed Flange
• Compatible Lumber Size: Double 2x10
• Fastener Type Included: Simpson Strong-Drive SDS Heavy-Duty Connector Screws
• Country of Origin: United States

Approved Applications

• Structural framing connections requiring additional strength and safety factors
• Face-mount joist and beam hanger installations on headers and carrying beams
• Applications where concealed header flanges are required for aesthetic or clearance reasons
• Installations close to the end of supporting beams where standard hangers may not be suitable
• Exterior, treated-lumber, and corrosive-environment framing applications where stainless steel corrosion resistance is required
• Double 2x10 joist or beam connections in residential and commercial construction

What's Included

• 1x Simpson Strong-Tie HUCQ210-2SS-SDS Double 2x10 Heavy Concealed Flange Face-Mount Joist Hanger (Stainless Steel)
• Simpson Strong-Drive SDS Heavy-Duty Connector Screws

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What material is the HUCQ210-2SS-SDS hanger made from?

This hanger is constructed from stainless steel, making it suitable for structural applications where corrosion resistance is a priority.

Do I need to predrill holes before installing the included screws?

No predrilling is required. The hanger includes Simpson Strong-Drive SDS Heavy-Duty Connector screws, which are designed to penetrate framing members without predrilling, saving time and labor on the job site.

Can this hanger be installed near the end of a supporting beam?

Yes. The HUCQ210-2SS-SDS is specifically designed to install close to the end of the supporting beam, providing installation flexibility in tight or confined framing conditions.

What is the concealed flange design and why does it matter?

The concealed header flange design means the flanges are hidden against the supporting member, resulting in no exposed metal on the header face. This provides a clean, tight fit and is beneficial in applications where a finished appearance or close contact with framing members is important.
