Product Features
Product Description

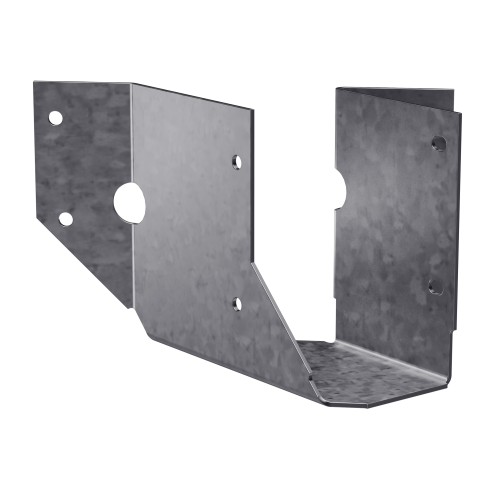

Simpson SUR24 SUR Galvanized Joist Hanger for 2x4, Skewed Right is a Simpson Strong-Tie engineered connector designed to create a precise 45 deg. skewed connection between a joist and header in wood framing applications. Built from 16-gauge steel with a G90 zinc galvanized coating for enhanced corrosion resistance, this right-skewed hanger delivers a strong, reliable support underneath the joist where structural integrity matters most.
Key Features
- SUR = skewed right, providing a 45 deg. connection between a joist and header
- Normally accommodates a 40 deg. to 50 deg. skew for flexible installation
- The joist end may be square cut or bevel cut
- Angled nail slots direct nails for proper installation
- Nominal joist size: 2x4
- Made from 16-gauge steel for dependable structural strength
- Galvanized (G90) coating for extra corrosion resistance
Specifications
- MPN: SUR24
- Brand: Simpson Strong-Tie
- Member Size: 2x4
- Width (W): 1-9/16 in.
- Obtuse Flange Length: 1-1/8 in.
- Acute Flange Length: 1-1/4 in.
- Height (H): 3-1/2 in.
- Seat Depth: 2 in.
- Gauge: 16
- Coating/Finish: Zinc Galvanized, G90
- Skew Direction: Right
- Install With: 16d common nails in the header and 10d x 1-1/2 in. nails in the joist
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What does "SUR" stand for, and how does it differ from SUL?
- SUR stands for skewed right. The SUR and SUL hangers are identical in design except that the SUR is skewed 45 deg. to the right and the SUL is skewed 45 deg. to the left, allowing you to choose the correct orientation for your specific framing layout.
- What range of skew angles will the SUR24 accommodate?
- The SUR24 will normally accommodate a 40 deg. to 50 deg. skew, making it suitable for framing connections that fall within that angular range.
- Does the joist need to be cut at a specific angle for installation?
- No. The joist end may be either square cut or bevel cut, giving installers flexibility depending on the framing requirements of the project.
- What fasteners are required to install the SUR24?
- Installation requires 16d common nails in the header and 10d x 1-1/2 in. nails in the joist. The angled nail slots in the hanger are designed to direct nails into the correct position for a proper, code-compliant installation.
Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
