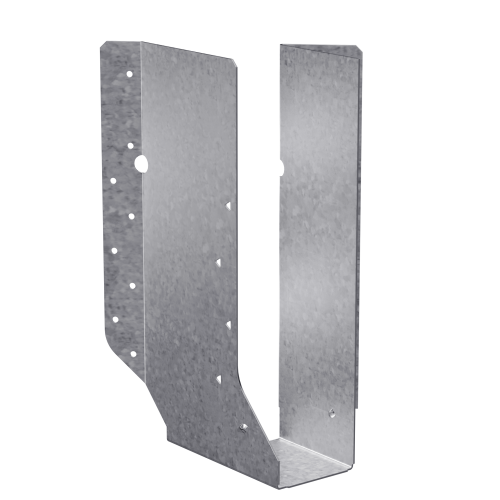

The Simpson SUR2.56/11 SUR Galvanized Joist Hanger Skewed Right by Simpson is a 45 deg.-skewed, U-shaped hanger built to support solid sawn and engineered wood products in angled wood framing applications. Designed to encapsulate the top flange of the joist, this hanger eliminates the need for web stiffeners in standard installation, delivering a strong, reliable connection where a standard straight hanger simply cannot perform. The U-shaped seat supports joists measuring 2-1/2 to 2-9/16 in. wide by 11-1/4 to 11-7/8 in. in depth, making it a precise fit for a range of engineered lumber sizes commonly used in modern residential and light commercial construction.

Key Features

• 45 deg. right-skewed design (SUR) - positions the hanger precisely for angled joist connections that a straight hanger cannot accommodate, keeping framing layouts clean and structurally sound
• Accommodates 40 deg. to 50 deg. skew range - provides practical flexibility in field conditions where the joist angle may vary slightly from the fixed 45 deg. skew, without requiring modification
• Cannot be field-modified - the fixed geometry ensures the hanger performs exactly as engineered and tested, removing the risk of errors or weakened connections from on-site alterations
• Obround nail holes on the acute side - allow nails to be driven parallel to the joist even in tight angled conditions, making fastening faster and more straightforward
• Positive-angle nailing for engineered wood sizes - reduces the risk of wood splitting during installation and speeds up the fastening process when working with LVL and other engineered lumber
• U-shaped design encapsulates the joist top flange - eliminates the need for web stiffeners in standard installation, reducing material cost and simplifying the connection detail
• Made from 16-gauge steel - delivers a sturdy, load-bearing hanger body suited to the structural demands of joist and rafter framing in wood construction
• G90 zinc galvanized coating - provides corrosion resistance to help the hanger hold up in environments where moisture exposure is a concern

Why This Product

• Purpose-built for skewed framing layouts - the fixed 45 deg. right skew and 40 deg. to 50 deg. accommodation range make this hanger the correct solution for angled joist connections that cannot be handled by a standard straight hanger, eliminating the guesswork of field-bending or improvising a connection
• Faster, split-free installation - obround nail holes and positive-angle nailing work together to let installers drive fasteners cleanly and efficiently into engineered wood, reducing installation time and protecting the lumber from splitting
• Simplified connection detail with no extra hardware - the U-shaped encapsulation of the joist top flange means web stiffeners are not required for standard installation, cutting down on the number of components a crew needs to manage on the job
• Flexible fastener options - the hanger can be installed with either nails or Simpson Strong-Drive SD Connector screws, giving crews the ability to use whichever fastener type best suits their tools and workflow without compromising the connection

Specifications

• MPN: SUR2.56/11
• Brand: Simpson Strong-Tie
• Skew Direction: Right (45 deg.)
• Member Size: 2-1/2 to 2-9/16 in. x 11-1/4 to 11-7/8 in.
• Width (W): 2-9/16 in.
• Obtuse Flange Length: 1-1/8 in.
• Acute Flange Length: 2-1/8 in.
• Height (H): 11-3/16 in.
• Seat Depth: 3-3/16 in.
• Seat Width: 2-9/16 in.
• Gauge: 16
• Coating/Finish: Zinc Galvanized, G90
• Country of Origin: United States
• Install With: (16) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (18) #9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What is the difference between the SUR and SUL hangers?

The SUR and SUL hangers are identical in design except that the SUR is skewed 45 deg. to the right and the SUL is skewed 45 deg. to the left. The SUR2.56/11 is the right-skewed version.

Can the SUR2.56/11 be field-modified to adjust the skew angle?

No. These hangers cannot be modified. However, the SUR2.56/11 will accommodate a joist skewed anywhere from 40 deg. to 50 deg., providing a degree of flexibility within that range.

What fasteners are required to install the SUR2.56/11?

Installation requires either (16) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (18) #9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112).

Do I need web stiffeners when installing this hanger?

No. The U-shaped design of the SUR2.56/11 encapsulates the top flange of the joist, so no web stiffeners are required for standard installation.

Note: Product dimensions and/or Screw or Nail holes may differ from picture. See item description for specifications.
