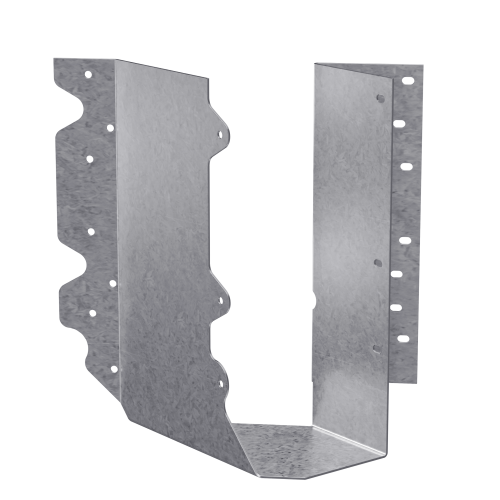

The Simpson SUR210-2Z SUR ZMAX Galvanized Joist Hanger for Double 2x10, Skewed Right by Simpson is engineered to create a strong, reliable connection between a joist and header where framing meets at an angle. Designed specifically for right-skewed framing applications, this hanger delivers a precise 45 deg. connection and is built from 16-gauge steel with ZMAX galvanization for lasting performance in exterior and treated-wood construction.

Key Features

• Skewed-right configuration - purpose-built for right-hand angled framing connections, eliminating the guesswork of field-skewing a standard hanger
• 45 deg. connection with 40 deg. to 50 deg. skew accommodation - provides built-in flexibility for real-world field conditions where framing angles may vary slightly
• Square cut or bevel cut joist end accepted - gives installers the freedom to work with the cut they have, reducing labor and material prep time
• Angled nail slots - guide nails into the correct position automatically, promoting consistent, code-compliant installation and reducing the chance of misdriven fasteners
• 16-gauge steel construction - delivers the structural strength needed to support double 2x10 or 2x12 joists in demanding framing applications
• ZMAX galvanization - provides an extra layer of corrosion resistance compared to standard galvanization, making this hanger a reliable choice for exterior framing and use alongside pressure-treated lumber

Why This Product

• Engineered for angled framing without field modification - the fixed 45 deg. skew-right design means contractors working on hip roofs, angled deck framing, or diagonal floor systems get a hanger that fits the application from the start, with no bending or adjusting required on site
• ZMAX coating adds meaningful durability where it counts - for projects involving treated lumber or outdoor exposure, the heavier ZMAX galvanization resists the accelerated corrosion that can compromise standard hangers over time
• Versatile joist sizing for double 2x10 or 2x12 members - a single hanger model handles two common joist dimensions, making it a practical choice for projects where member sizing may vary across a single structure
• Angled nail slots take the guesswork out of fastening - by directing nails automatically during installation, the hanger helps ensure proper load transfer and a connection that meets design requirements without relying on estimating nail angles by eye

Specifications

• Model Number: SUR210-2Z
• Skew Direction: Right
• Gauge: 16
• Width (W): 3-1/8 in.
• Height (H): 8-11/16 in.
• Bearing (B): 2-5/8 in.
• Member Size: Double 2x10 or 2x12
• Acute Flange Length: 2-3/8 in.
• Obtuse Flange Length: 1-7/16 in.
• Coating/Finish: ZMAX
• Country of Origin: United States
• Installation Fasteners: Install with (14) 0.162 in. x 3-1/2 in. nails in the face and (6) 0.162 in. x 2-1/2 in. nails in the joist (sold separately)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What skew angle does the SUR210-2Z accommodate?

The SUR210-2Z is designed to provide a 45 deg. connection between a joist and header and will normally accommodate a skew range of 40 deg. to 50 deg., offering some flexibility for field conditions.

Does the joist need to be cut at a specific angle for installation?

No. The joist end may be either square cut or bevel cut, giving installers flexibility depending on the framing situation.

Why is ZMAX galvanization important for this hanger?

ZMAX galvanization provides an extra layer of corrosion resistance, making the SUR210-2Z especially suitable for exterior applications and use with treated wood, where standard galvanization may not offer adequate protection against moisture and chemical exposure.

What fasteners are required to install the SUR210-2Z?

Installation requires (14) 0.162 in. x 3-1/2 in. nails in the face and (6) 0.162 in. x 2-1/2 in. nails in the joist. The hanger features angled nail slots that direct nails for proper installation.

Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
