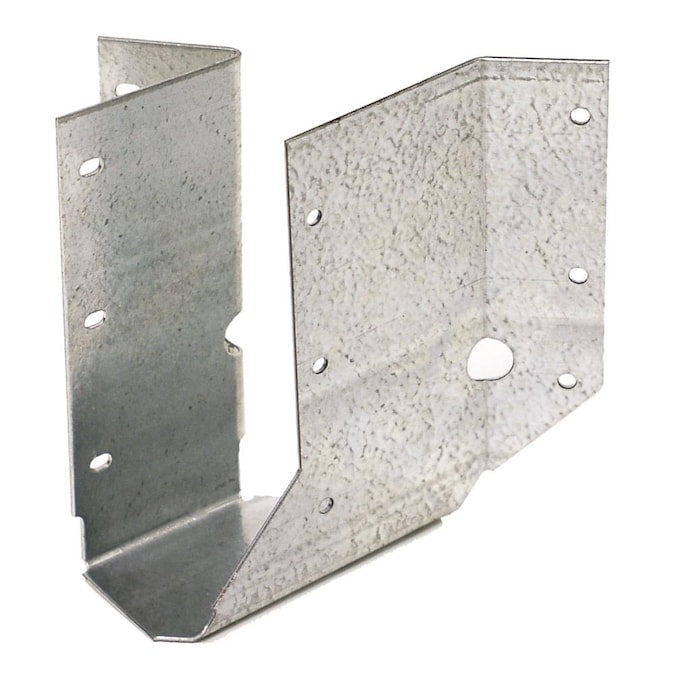

The Simpson SUL26SS SUL Stainless-Steel Joist Hanger for 2x6, Skewed Left is a 45 deg.-skewed U-shaped hanger from Simpson engineered to support solid sawn and engineered wood products in wood-framed construction. Designed specifically for left-hand skewed connections, this hanger encapsulates the top flange of the joist so no web stiffeners are required for standard installation, saving time and reducing hardware at the connection point. Built from 16-gauge stainless steel, it is well suited for exterior framing and installations involving pressure-treated lumber where long-term corrosion resistance is a priority.

Key Features

• SUL = skewed left orientation - pre-set at 45 deg. to the left, eliminating guesswork and ensuring a precise, code-consistent connection angle without any field modification.
• Obround nail holes on the acute side - allow nails to be driven parallel to the joist, giving installers cleaner access in tight framing conditions and reducing the risk of splitting.
• Accommodates 40 deg. to 50 deg. skew range - provides built-in flexibility for real-world framing variations without requiring the hanger to be altered or replaced.
• U-shaped design encapsulates the top joist flange - eliminates the need for web stiffeners in standard installations, simplifying the connection and reducing material costs.
• 16-gauge stainless steel construction - delivers the structural rigidity needed for load-bearing joist connections while providing superior resistance to corrosion in exterior and treated-wood environments.
• Compatible with solid sawn and engineered wood products - supports a broad range of modern framing materials, making it a versatile choice across residential and light commercial structural applications.
• Available in a version with the acute flange turned in (SULC) - accommodates end-of-wall installation conditions for solid sawn lumber sizes when standard clearance is limited.

Why This Product

• Purpose-built for left-skewed framing connections - unlike field-adjustable alternatives, this hanger arrives fixed at the correct 45 deg. left skew, ensuring consistent geometry at every connection point and reducing installation error on complex framing layouts.
• Stainless steel material is suited for demanding environments - the stainless steel finish provides extra corrosion resistance that makes this hanger a dependable choice for exterior decks, covered porches, and framing that contacts pressure-treated lumber over the long term.
• Installs with widely available fastener types - accepts stainless-steel nails or Strong-Drive SD Connector SS screws (SD9112), giving contractors flexibility to use the fastening method that best suits their workflow and tool availability.
• Supports a range of joist sizes in one SKU - the nominal member size accommodates both 2x6 and 2x8 joists, reducing the number of different hangers a builder needs to stock for a project with mixed joist dimensions.

Specifications

• MPN: SUL26SS
• Brand: Simpson Strong-Tie
• Skew Direction: Left
• Gauge: 16
• Material: Stainless Steel
• Finish: Stainless Steel
• Seat Width (W): 1-9/16 in.
• Height (H): 5 in.
• Depth (B): 2 in.
• Member Size: 2x6 or 2x8
• Acute Flange Length: 1-5/16 in.
• Obtuse Flange Length: 1-1/8 in.
• Country of Origin: United States

Approved Applications

• Connecting solid sawn lumber joists and rafters at a 45 deg. left-skewed angle in wood-framed construction
• Supporting engineered wood products in structural framing applications
• Exterior applications and installations involving pressure-treated lumber where corrosion resistance is required
• Framing conditions requiring a 40 deg. to 50 deg. skewed joist connection without field modification

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What fasteners are required to install the SUL26SS joist hanger?

Install with (6) 0.162 x 3-1/2-in. stainless-steel nails in the face and (6) 0.148 x 1-1/2-in. stainless-steel nails in the joist, OR (12) #9 x 1-1/2-in. Strong-Drive SD Connector SS screws (SD9112).

Can the SUL26SS be field-modified to adjust the skew angle?

No. These hangers cannot be modified. However, they will accommodate a joist skewed anywhere from 40 deg. to 50 deg., providing a degree of flexibility within that range without requiring any alterations to the hanger.

What is the difference between the SUR and SUL hangers?

The SUR and SUL hangers are identical in design except that the SUR is skewed 45 deg. to the right and the SUL is skewed 45 deg. to the left. Choose the appropriate model based on the direction of your joist connection.

Why is stainless steel recommended for this hanger, and does it require web stiffeners?

Stainless steel offers extra corrosion resistance, making this hanger well-suited for exterior environments and applications involving pressure-treated or chemically treated wood. No web stiffeners are required for standard installation because the U-shaped hanger encapsulates the top flange of the joist.

Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
