Product Features
Product Description

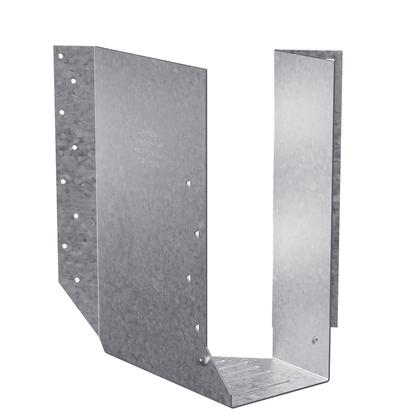

Simpson Strong-Tie 4-1/8 x 11-7/8 Heavy Skewed Right Joist Hanger, Galvanized (HSUR4.28/11) - is a heavy-duty, 45-degree right-skewed U-shaped hanger engineered by Simpson Strong-Tie to support large joist members or double I-joists in wood construction applications where standard perpendicular framing is not possible. The encapsulating U-shape design cradles the top flange of the joist, eliminating the need for web stiffeners in standard installations and delivering a strong, reliable connection without additional hardware.
Key Features
- 45-degree skewed right design (HSUR) for angled framing connections
- Heavy U-shaped profile encapsulates the top flange of the joist - no web stiffeners required for standard installation
- Engineered to support large joist members or double I-joists in wood construction
- 14-gauge steel construction for exceptional load-bearing strength
- Zinc Galvanized G90 coating for corrosion resistance
- Skewed right (HSUR) counterpart to the left-skewed HSUL, which is identical in design except for skew direction
- Compatible with concealed flange configuration options (HSURC/HSULC) for end-of-wall installation with solid sawn sizes
- Made in the United States
Specifications
- MPN: HSUR4.28/11
- Skew Direction: Right
- Gauge: 14
- W (Width): 4 5/16 in.
- H (Height): 11 1/8 in.
- B (Bearing): 3 in.
- Coating/Material: Zinc Galvanized, G90
- Acute Flange Length: 2-3/8 in.
- Obtuse Flange Length: 1-7/16 in.
- Country of Origin: United States
Options
Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC)
Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What is the difference between the HSUR and HSUL hanger?
- The HSUR and HSUL hangers are identical in design and dimensions except for the direction of their 45-degree skew. The HSUR is skewed to the right, while the HSUL is skewed to the left. Choose the appropriate model based on the direction your joist angles away from the header or beam.
- Are web stiffeners required when installing the HSUR4.28/11?
- No. Because the heavy U-shaped hanger encapsulates the top flange of the joist, web stiffeners are not required for standard installation, simplifying the installation process.
- What type of joist members is this hanger designed to support?
- The HSUR4.28/11 is designed to support large joist members or double I-joists in wood construction applications that require a 45-degree skewed connection.
- Is there an option for end-of-wall installation with this hanger series?
- Yes. The HSURC and HSULC versions are available with the A2 (acute) flange turned in to accommodate end-of-wall installation, but this configuration is available for solid sawn sizes only.
Related Products
- HSURC or HSULC
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
