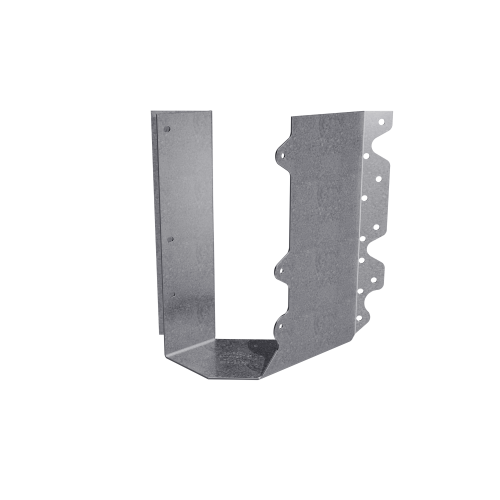

The Simpson HSUL46 Galvanized Joist Hanger for 4x6, Skewed Left is a purpose-built structural connector from Simpson Strong-Tie engineered to create a precise 45 deg. angled connection between a joist and header in wood framing. Constructed from 14-gauge steel with a G90 zinc galvanized finish, this left-skewed hanger is designed to provide reliable support underneath the joist while accommodating skew angles from 40 to 50 deg. - making it the right solution for angled framing layouts where a standard straight hanger simply cannot do the job.

Key Features

• HSUL designation indicates a left-skewed connection - matches framing layouts that require the joist to meet the header at a left-hand angle, eliminating the guesswork of field-modifying a straight hanger.
• Accommodates joists skewed 40 to 50 deg. - provides a practical range around a true 45 deg. angle, giving framers the flexibility to work with real-world framing tolerances on the jobsite.
• Angled nail slots direct nails for proper installation - guides fasteners into the correct position automatically, reducing installer error and helping ensure a code-consistent connection every time.
• Accepts square cut or bevel cut joist ends - no special milling or precision end cuts are required, saving time and labor during installation.
• Made from 14-gauge steel - delivers the structural strength and rigidity needed for dependable load transfer between the joist and header in demanding framing applications.
• G90 zinc galvanized finish - provides enhanced corrosion resistance, making this hanger well suited for use in environments where moisture exposure is a concern.
• Installed with 16d common nails - uses a standard, widely available fastener size so no specialty hardware is needed to complete the installation.

Why This Product

• Engineered specifically for left-hand angled framing - unlike adjustable or field-skewable hangers that require on-site bending, the HSUL46 arrives ready to handle left-skewed 4x6 connections at a true 45 deg. orientation, delivering a cleaner, more consistent result.
• Flexible joist end compatibility reduces prep work - because both square cut and bevel cut joist ends are accepted, installers can adapt to existing conditions without additional cutting steps, keeping projects on schedule.
• Built-in angled nail slots take the guesswork out of fastening - by physically guiding 16d common nails into proper position, the hanger helps ensure each connection is made correctly the first time, supporting structural integrity throughout the framed assembly.
• Heavy-gauge galvanized construction offers lasting durability - the combination of 14-gauge steel and a G90 zinc galvanized coating means this connector is built to hold up under both structural load and corrosive conditions, making it a reliable long-term choice for angled joist connections.

Specifications

• MPN: HSUL46
• Member Size: 4x6
• Acute Flange Length: 2-3/16 in.
• Obtuse Flange Length: 1 in.
• Gauge: 14
• Width (W): 3 9/16 in.
• Height (H): 4 3/4 in.
• Seat Width (B): 2 7/16 in.
• Coating / Finish: Zinc Galvanized, G90
• Install With: 16d common nails
• Country of Origin: United States

Options

Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only - see HSURC or HSULC.

Contact us for Configurable Options and Special orders.

Frequently Asked Questions

What does "HSUL" mean and how does it differ from "HSUR"?

HSUL indicates the hanger is skewed to the left, while HSUR indicates a skew to the right. Both hangers are otherwise identical in construction, providing a 45 deg. angled connection between a joist and header. Choose HSUL46 when your framing layout requires a left-skewed connection for a 4x6 member.

What range of skew angles does the HSUL46 accommodate?

The HSUL46 can accommodate joists skewed between 40 and 50 degrees, making it suitable for framing applications that require a connection close to a true 45 deg. angle.

Does the joist need a special cut to fit this hanger?

No special cut is required. The joist end may be either square cut or bevel cut, giving installers flexibility depending on the framing conditions at the jobsite.

What fasteners are recommended for installing the HSUL46?

This hanger is designed to be installed with 16d common nails. The angled nail slots built into the hanger help direct nails at the correct angle for a proper, code-compliant installation.
