Product Features
Product Description

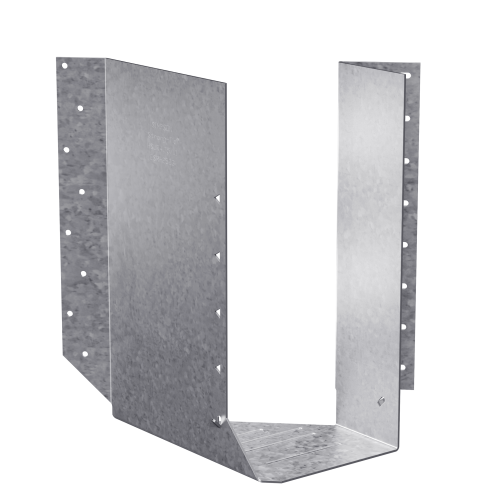

The Simpson Strong-Tie HSUL4.75/16 Heavy Skewed Left Joist Hanger is a 14-gauge, zinc galvanized U-shaped connector engineered to support large joist members or double I-joists in wood construction at a 45-degree left skew angle. Its heavy U-shaped design fully encapsulates the top flange of the joist, eliminating the need for web stiffeners in standard installations and delivering a reliable, efficient connection in demanding framing applications.
Key Features
- Skewed 45 degrees to the left for angled framing connections where standard hangers cannot be used
- Heavy U-shaped profile fully encapsulates the top flange of the joist - no web stiffeners required for standard installation
- Designed to support large joist members or double I-joists in wood construction
- 14-gauge steel construction for heavy-duty load carrying performance
- Zinc galvanized G90 coating provides corrosion resistance for long-term durability
- Made in the United States
Specifications
- Model Number: HSUL4.75/16
- Skew Direction: Left (45 degrees)
- Gauge: 14
- W (Width): 4-3/4 in.
- H (Height): 15-3/4 in.
- B: 2-3/4 in.
- Coating/Material: Zinc Galvanized, G90
- Acute Flange Length: 2-3/8 in.
- Obtuse Flange Length: 1-7/16 in.
- Country of Origin: United States
Options
Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only. See HSURC or HSULC for concealed flange options.
For configurable options and special orders, Contact us.
Frequently Asked Questions
- What is the difference between the HSUL and the HSUR?
- The HSUL and HSUR hangers are identical in design and construction, with the only difference being skew direction. The HSUL is skewed 45 degrees to the left, while the HSUR is skewed 45 degrees to the right. Both are used to support large joist members or double I-joists in wood construction at an angled connection.
- Are web stiffeners required when installing the HSUL4.75/16?
- No. Because the heavy U-shaped profile fully encapsulates the top flange of the joist, web stiffeners are not required for a standard installation with this hanger.
- What type of joist members is the HSUL4.75/16 designed to support?
- The HSUL4.75/16 is designed to support large joist members or double I-joists in wood construction applications requiring a 45-degree left-skewed connection.
- Is an end-of-wall installation option available for this hanger series?
- Yes. The HSUL series is available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only. This concealed-flange variant is designated as the HSULC.
Related Products
- - Heavy Skewed U-Shaped Hanger with Concealed Flanges
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
