Product Description

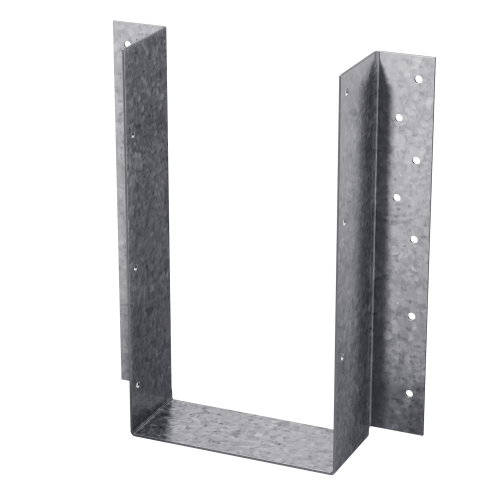

The Simpson Rough 4x4 Face-Mount Joist Hanger U44R by Simpson is a precision-formed face-mount hanger engineered specifically for rough 4x4 lumber in joist-to-header connections across wood-framed construction applications. Built to accommodate the full rough-sawn dimension of a 4x4 member, this U hanger delivers consistent structural performance and reliable load transfer for contractors and builders working with solid sawn lumber or engineered wood products.
Key Features
- Face-mount design sized for rough 4x4 lumber - the interior width is matched precisely to the full rough-sawn dimension, ensuring a snug, accurate fit that eliminates guesswork on the jobsite
- 16-gauge steel construction - provides the structural rigidity needed for dependable joist-to-header load transfer in wood-framed assemblies
- G90 zinc galvanized coating - delivers enhanced corrosion resistance, helping the hanger hold up over the long term in typical wood-framed construction environments
- Broad lumber compatibility - approved for use with Douglas Fir, Southern Pine, Spruce-Pine-Fir, Hem-Fir, and engineered wood products including I-Joists, Glulam, and Structural Composite Lumber, giving builders flexibility across a wide range of projects
- Domestic manufacturing - produced in the United States under consistent quality controls, supporting predictable performance from hanger to hanger
Why This Product
- Purpose-built for rough lumber - unlike standard hangers sized for dressed lumber, the U44R is specifically dimensioned for rough 4x4 members, meaning builders working with rough-sawn stock get a proper fit without shimming or modification
- Versatile across species and engineered products - with approved applications spanning multiple solid sawn lumber species as well as I-Joists, Glulam, and SCL, this single hanger model covers a wide variety of structural framing scenarios
- Corrosion-resistant finish for lasting reliability - the G90 zinc galvanized coating goes beyond a basic protective layer, making this hanger a sound long-term investment for framing connections that need to perform for the life of the structure
- Trusted Simpson engineering - backed by published load tables for multiple lumber categories and connection types, contractors have the documented performance data needed to spec and install with confidence
Specifications
- Model Number: U44R
- Gauge: 16
- Width (W): 4 in.
- Height (H): 2-5/8 in.
- Seat Depth (B): 2 in.
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Joist-to-header connections in wood-framed construction
- Solid sawn lumber - Douglas Fir (DF) and Southern Pine (SP)
- Solid sawn lumber - Spruce-Pine-Fir (SPF) and Hem-Fir (HF)
- Rough lumber - DF, SP, SPF, and HF species
- Engineered wood products including I-Joists, Glulam, and Structural Composite Lumber (SCL)
Options
- Contact us for Configurable Options and Special orders
- Refer to technical bulletin for ease of ordering a Custom U hanger
Load Tables / Values / Installation
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers - I-Joists, Glulam and SCL Tables
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers - I-Joists, Glulam and SCL Tables
Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What lumber size is the U44R designed to support?
The U44R is specifically sized for rough 4x4 lumber, with an interior width of 4 inches to accommodate the full rough-sawn dimension of the joist.
What gauge steel is used in the U44R, and what type of coating does it have?
The U44R is formed from 16-gauge steel and features a G90 zinc galvanized coating, which provides enhanced corrosion resistance suitable for wood-framed construction applications.
What are the key dimensions of the U44R hanger?
The U44R has a width (W) of 4 inches, a height (H) of 2-5/8 inches, and a seat depth (B) of 2 inches.
Is the U44R compatible with engineered wood products such as I-Joists or Glulam beams?
Yes. The U44R is compatible with a variety of lumber types including solid sawn lumber in multiple species groups as well as engineered wood products such as I-Joists, Glulam, and Structural Composite Lumber (SCL). Refer to the appropriate load tables in the Downloads section for specific values.
