Product Description

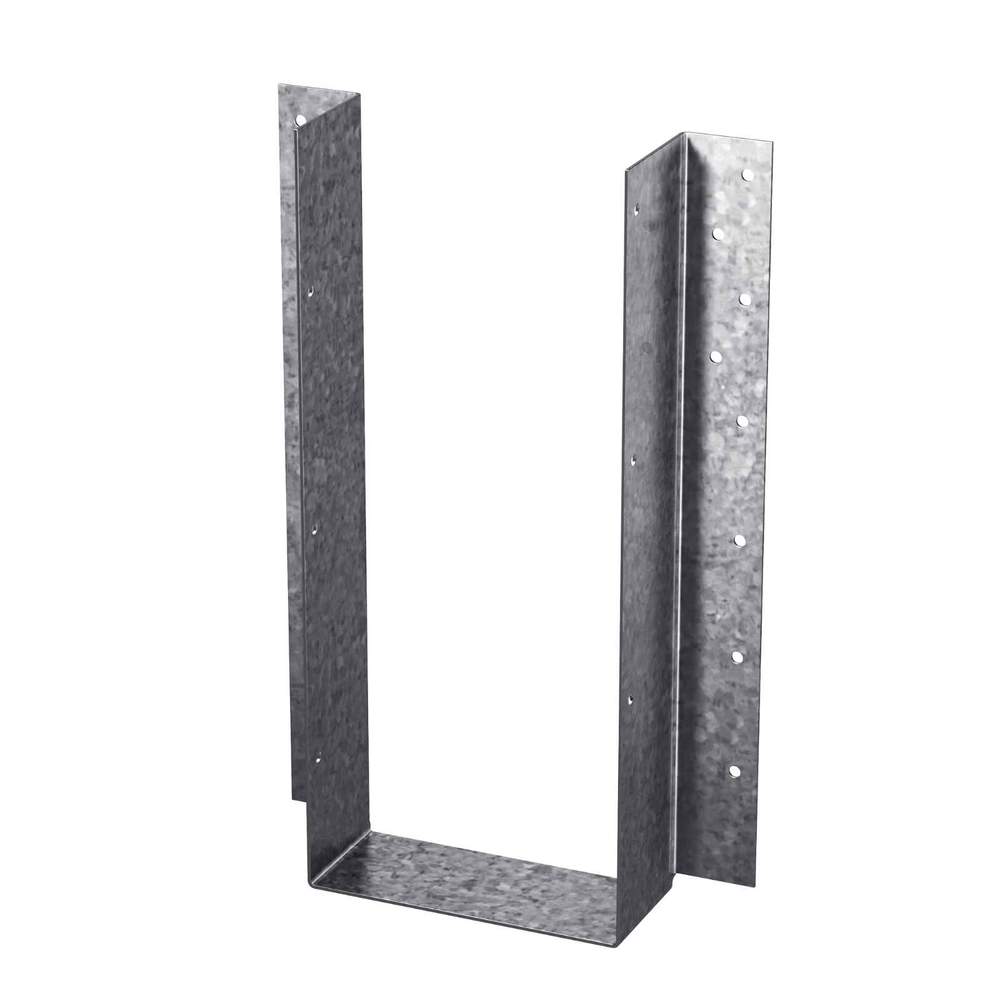

The Simpson Face-Mount Joist Hanger U3510-2 is a precision-formed U-style connector engineered to support joist-to-header connections in wood-framed construction. Built by Simpson, this galvanized face-mount hanger is sized to accommodate 4-5/8 x 9-1/4 to 9-1/2 lumber and delivers consistent, dependable load transfer across a wide range of solid sawn, rough, and engineered wood applications.
Key Features
- Face-mount U-style design - attaches directly to the header face to securely cradle the joist from below, making alignment straightforward during framing
- 16-gauge steel construction - provides a consistent, precision fit and the structural rigidity needed for dependable load transfer in joist-to-header connections
- G90 zinc galvanized coating - delivers corrosion resistance that helps the hanger hold up in environments where moisture exposure is a concern, extending service life
- Compatible with multiple lumber types - approved for solid sawn lumber, rough lumber, I-Joists, Glulam, and Structural Composite Lumber (SCL), giving contractors flexibility across framing projects
- Covers both DF/SP and SPF/HF species groups - load-rated for Douglas Fir/Southern Pine and Spruce-Pine-Fir/Hem-Fir, so one hanger works across the most common framing lumber species
Why This Product
- Broad application coverage in a single hanger - rated for solid sawn, rough, and engineered wood products including I-Joists, Glulam, and SCL, reducing the need to source different connectors for different framing materials
- Trusted name in structural connectors - Simpson is a widely recognized brand in wood-framed construction, and the U3510-2 reflects the precise forming and consistent quality that framing crews rely on job after job
- Corrosion-resistant finish for lasting performance - the G90 zinc galvanized coating helps protect the connection point over the long term, an important consideration in framing assemblies that are difficult to access after construction
- Made in the United States - domestic manufacturing supports consistent quality control, giving buyers confidence in the dimensional accuracy and material integrity of each hanger
Specifications
- Model No.: U3510-2
- Gauge (Ga.): 16
- Width (W): 4-3/4 in.
- Height (H): 8-3/4 in.
- Seat Depth (B): 2 in.
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Joist-to-header connections in wood-framed construction
- Solid sawn lumber applications including Douglas Fir/Southern Pine (DF/SP)
- Solid sawn lumber applications including Spruce-Pine-Fir/Hem-Fir (SPF/HF)
- Rough lumber applications (DF/SP/SPF/HF)
- Engineered wood products including I-Joists, Glulam, and Structural Composite Lumber (SCL)
- Contact us for Configurable Options and Special orders
- Refer to technical bulletin for ease of ordering a Custom U hanger
Load Tables / Values / Installation
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers - I-Joists, Glulam and SCL Tables
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - I-Joists, Glulam and SCL Tables
Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What type of installation is the U3510-2 designed for?
The U3510-2 is a face-mount joist hanger specifically designed for joist-to-header installation in wood-framed construction. It attaches directly to the face of the header to support the joist from below.
What gauge steel is used in the U3510-2, and what are its dimensions?
The U3510-2 is precision-formed from 16-gauge steel. It measures 4-3/4 in. wide (W), 8-3/4 in. tall (H), and has a seat depth (B) of 2 in.
What corrosion protection does the U3510-2 hanger have?
The U3510-2 features a G90 zinc galvanized coating, which provides a durable layer of corrosion resistance suited for typical wood-framed construction environments.
Is the U3510-2 compatible with engineered wood products?
Yes. Load tables are available for use with I-Joists, Glulam, and Structural Composite Lumber (SCL), in addition to solid sawn lumber species groups such as DF/SP and SPF/HF, and rough lumber applications. Refer to the applicable load tables linked above for specific allowable load values.
