Product Description

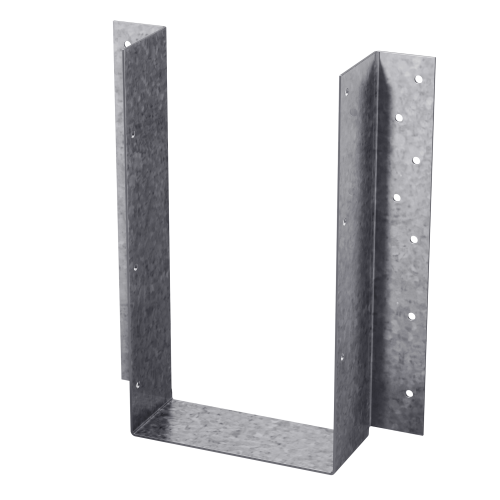

The Simpson 3x14 Face-Mount Joist Hanger, Galvanized U314 from Simpson is a precision-formed joist hanger built for face-mount, joist-to-header connections in wood-framed construction. Formed from 16-gauge steel with a G90 zinc galvanized coating, this hanger delivers dependable structural performance and a consistent fit for 3x14 lumber applications across a wide range of framing projects.
Key Features
- Face-mount design - connects joists directly to headers in wood-framed construction, keeping installation straightforward and the structural connection secure
- Precision-formed 16-gauge steel construction - provides a consistent fit and reliable structural integrity, reducing the chance of installation errors on the job
- G90 zinc galvanized coating - resists corrosion over time, making this hanger suitable for applications where long-term durability matters
- Sized for 3x14 lumber - designed to accommodate the exact lumber dimensions specified, eliminating guesswork when selecting the right hanger for your framing layout
- Made in the United States - manufactured domestically to consistent quality standards buyers can rely on
Why This Product
- A trusted name in structural connectors - Simpson is a well-recognized brand in wood-framed construction, and the U314 reflects that reputation for precision engineering and dependable performance
- Purpose-built for 3x14 joist applications - rather than a generic fit, this hanger is specifically sized for 3x14 lumber, so contractors and builders get a proper connection without modification or improvisation
- Corrosion-resistant coating for lasting performance - the G90 zinc galvanized finish helps protect the hanger from moisture and environmental wear, supporting the long-term integrity of the framed structure
- Load table support across multiple lumber types - performance values are available for solid sawn lumber, rough lumber, I-joists, glulam, and SCL, giving builders the data they need to verify the connection meets structural requirements for their specific application
Specifications
- Model No.: U314
- Gauge (Ga.): 16
- Width - W: 2-9/16 in.
- Height - H: 10-1/2 in.
- Bearing Width - B: 2 in.
- Coating/Material: Zinc Galvanized, G90
- Height (H): 10-1/2 in.
- Width (W): 2-9/16 in.
- Seat Depth: 2 in.
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
- Refer to technical bulletin for ease of ordering a Custom U hanger
Load Tables / Values / Installation
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers - I-Joists, Glulam and SCL Tables
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers - I-Joists, Glulam and SCL Tables
Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What type of installation is the U314 joist hanger designed for?
The U314 is designed for face-mount, joist-to-header installation in wood-framed construction, providing a strong and reliable connection between the joist and the supporting header.
What gauge steel is used in the U314, and what coating does it have?
The U314 is precision-formed from 16-gauge steel and features a G90 zinc galvanized coating, which provides corrosion resistance for long-term durability.
What are the dimensions of the U314 joist hanger?
The U314 has a width (W) of 2-9/16 in., a height (H) of 10-1/2 in., and a bearing width (B) of 2 in., making it suitable for 3x14 lumber applications.
Are load tables available for the U314 to verify structural performance?
Yes. Load tables are available for solid sawn lumber (DF/SP and SPF/HF), rough lumber (DF/SP/SPF/HF), and engineered lumber including I-Joists, Glulam, and SCL. See the Downloads and Resources section below for access to these reference documents.
