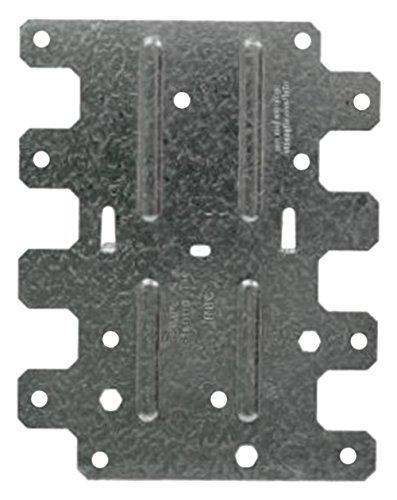

The Simpson RBC Roof Boundary Clip is engineered to aid installation and transfer shear loads between the roof diaphragm and wall, making it a dependable choice for structural connections in both residential and commercial framing. Built-in locator tabs simplify proper positioning during installation, and the clip is compatible with wood or masonry walls across roof pitches from 0/12 to 12/12. Field-bendable to match the required angle, the RBC adapts to job-site conditions while maintaining the structural performance that demanding diaphragm-to-wall connections require.

Key Features

• Field bend to desired angle (one time only) - allows on-site adjustment to match the exact roof pitch without the need for additional hardware or pre-fabricated variants
• 20-gauge steel construction - provides the rigidity and load-handling capacity needed for reliable shear transfer at the roof-to-wall connection
• G90 zinc galvanized finish - delivers extra corrosion resistance, helping the clip hold up in moisture-exposed framing environments over the long term
• Built-in locator tabs - take the guesswork out of positioning, ensuring consistent and code-conforming placement on every installation
• Compatible with wood or masonry walls - gives builders flexibility to use a single clip type across different wall assemblies and construction methods
• Handles roof pitches from 0/12 to 12/12 - covers the full range from flat commercial roofs to steeply pitched residential applications with one versatile clip design

Why This Product

• Dual-substrate versatility - because the RBC works on both wood and masonry walls, contractors can stock a single clip model and deploy it confidently across a wide range of structural wall types and project scopes
• Pitch-range coverage from flat to steep - with compatibility spanning 0/12 to 12/12, this roof boundary clip eliminates the need to source different connectors for different roof geometries on the same job
• Faster, more accurate placement - the integrated locator tabs guide the installer to the correct position immediately, reducing layout time and the risk of misalignment during roof diaphragm attachment
• Built for lasting performance - the G90 galvanized coating on 20-gauge steel means the clip resists corrosion in real-world framing conditions, supporting the structural integrity of the shear connection well beyond initial installation

Specifications

• MPN: RBC
• Width: 4-1/2 in.
• Height: 5-3/4 in.
• Gauge: 20
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Country of Origin: United States
• Installation Hardware: 10d x 1-1/2 in. nails or Titen screws depending on the type of connection

Approved Applications

• Transferring shear loads between the roof diaphragm and wall
• Wood wall connections
• Masonry wall connections
• Roof pitches from 0/12 to 12/12

Frequently Asked Questions

Can the RBC Roof Boundary Clip be used on both wood and masonry walls?

Yes, the RBC is designed to be used on both wood and masonry walls, making it a versatile choice for a variety of construction applications.

What range of roof pitches is the RBC compatible with?

The RBC handles roof pitches from 0/12 to 12/12, covering flat roofs through steep-pitched roofs.

How is the RBC field adjusted to the correct angle?

The RBC can be field bent to the desired angle, but this bending should be performed one time only to maintain the structural integrity of the clip.

What fasteners are recommended for installing the RBC?

Install with 10d x 1-1/2 in. nails or Titen screws depending on the type of connection being made.
