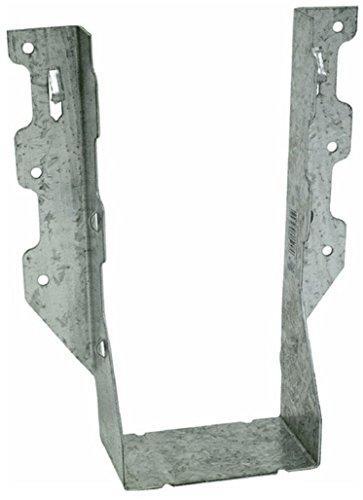

The Simpson LUS28-2Z LUS ZMAX Galvanized Face-Mount Joist Hanger is an economical, easy-to-install connector from Simpson engineered for double 2x8 and double 2x10 solid sawn lumber members. Built from 18-gauge steel with a ZMAX galvanized finish, this face-mount hanger features a patented double-shear nailing design that distributes load through two points on each joist nail, delivering a stronger connection with fewer fasteners and faster installation time. Its enhanced corrosion resistance makes it a reliable choice for exterior framing and pressure-treated wood applications where standard hardware may fall short.

Key Features

• Patented double-shear nailing design - distributes load through two points on each joist nail, so you get greater structural strength while using fewer nails and spending less time on installation
• Speed prongs - hold the hanger in position during installation, reducing the need for extra hands and keeping the workflow moving on the job site
• Angled joist nailing - allows fasteners to be driven at an angle, making it easier to complete connections in confined or tight framing spaces
• ZMAX galvanized coating - provides extra corrosion resistance beyond standard galvanization, protecting the hanger in exterior environments and when paired with treated lumber
• 18-gauge steel construction - delivers a durable, rigid connector that handles the structural demands of common joist and rafter framing applications
• Compatible with common fasteners - installs using widely available Strong-Drive SD Connector screws or Strong-Drive SCN Smooth-Shank Connector nails, so you are not forced to source specialty hardware

Why This Product

• Fewer nails, stronger connection - the patented double-shear design means each joist nail carries load at two shear planes, so you achieve a high-strength connection without overdriving fasteners or slowing down your crew
• Built for treated-wood and outdoor framing - ZMAX galvanization offers a level of corrosion protection specifically suited to exterior decks, pergolas, and pressure-treated framing where moisture and chemical exposure are ongoing concerns
• Versatile member sizing - a single hanger accommodates both double 2x8 and double 2x10 lumber, reducing the number of different connector SKUs you need to keep on hand for a project
• Faster, simpler installation - speed prongs, angled joist nailing, and compatibility with all-common nails mean less setup time per connection and a more efficient installation process overall

Specifications

• Model Number: LUS28-2Z
• Member Size: Double 2x8 and Double 2x10
• Width: 3-1/8 in.
• Height: 7 in.
• Seat Depth: 2 in.
• Gauge: 18
• Coating: ZMAX
• Finish: ZMAX
• Country of Origin: United States

Approved Applications

• Face-mount joist hanger applications for double 2x8 and double 2x10 solid sawn lumber members
• Exterior construction requiring enhanced corrosion resistance
• Applications involving treated wood where ZMAX galvanization provides added protection
• Common framing connections where double-shear nailing is specified for greater load capacity

Frequently Asked Questions

What fasteners should be used to install the LUS28-2Z?

Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (6) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (10) 0.162 in. x 3-1/2 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 16DHDG).

What is the benefit of the double-shear nailing design on this hanger?

The patented double-shear nailing design distributes the load through two points on each joist nail, providing greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection.

Why is ZMAX galvanization important for this hanger?

ZMAX galvanization offers extra corrosion resistance, making the LUS28-2Z suitable for exterior and treated-wood applications where standard galvanization may not provide sufficient protection against the elements or chemicals present in treated lumber.

Can the tabs on the LUS28-2Z be bent or removed for easier installation?

No. The tabs on the LUS28-2Z must not be bent or removed. Modifying the tabs can compromise the structural integrity and load-rated performance of the hanger.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
