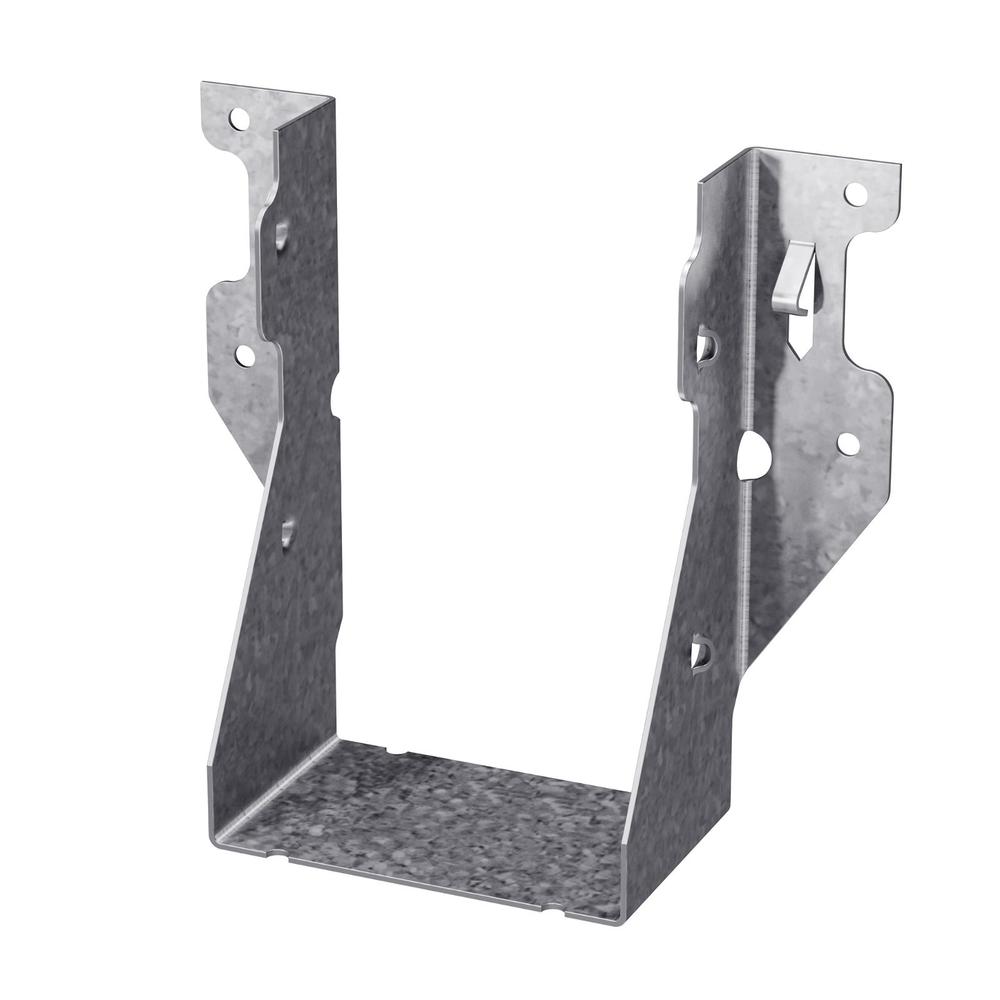

The Simpson LUS26-3 Face-Mount Joist Hanger for Triple 2x6 by Simpson is an economical, easy-to-install connector engineered to provide reliable structural support beneath triple 2x6 joists, rafters, and beams in a wide range of framing applications. Its patented double-shear nailing design distributes load through two points on each joist nail, delivering greater connection strength while allowing for fewer nails and faster installation. Built from 18-gauge steel with a G90 zinc galvanized finish, this face-mount hanger is a dependable choice for residential and light commercial framing where both performance and corrosion resistance matter.

Key Features

• Patented double-shear nailing design - distributes load through two points on each joist nail, providing greater strength with fewer nails so installation goes faster without sacrificing structural performance
• Speed prongs - hold the hanger in position during installation, freeing both hands and reducing the time needed to complete each connection
• Angled joist nailing - allows nails to be driven at an angle, making it easier to fasten joists in tight or confined framing spaces where a straight swing is difficult
• 18-gauge steel construction - provides a sturdy, rigid connector body capable of handling the combined load of triple 2x6 lumber without flex or deformation
• G90 zinc galvanized finish - delivers an elevated level of corrosion resistance, helping the hanger hold up in moisture-prone environments over the long term
• Tabs must not be bent or removed - preserving the factory geometry protects the rated load capacity and keeps the connection code-compliant
• Compatible with common fasteners - accepts widely available Strong-Drive SD Connector screws and SCN Smooth-Shank Connector nails, reducing the need to source specialty hardware

Why This Product

• Engineered for triple 2x6 framing specifically - the LUS26-3 is sized and rated for triple 2x6 members, giving structural framers a purpose-built hanger rather than a workaround, which supports accurate load calculations and confident inspections
• Double-shear technology means fewer nails, same strength - by spreading each nail's load across two shear planes, the hanger meets required load values with a reduced nail count, cutting material use and speeding up repetitive installations
• Speed prongs and angled nailing slots reduce labor time - built-in positioning prongs and angled nail holes are practical time-savers on busy job sites, particularly in tight bays where standard face nailing is awkward
• G90 galvanized coating adds long-term durability - the enhanced corrosion protection makes this hanger suitable for covered decks, crawl spaces, and other framing environments where moisture exposure is an ongoing concern

Specifications

• MPN: LUS26-3
• Member Size: Triple 2x6
• Width: 4-5/8 in.
• Height: 4-1/8 in.
• Seat Depth: 2 in.
• Gauge: 18
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Country of Origin: United States

Frequently Asked Questions

What fasteners should be used to install the LUS26-3?

Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (4) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (8) 0.162 in. x 3-1/2 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 16DHDG).

What is the double-shear nailing design and why does it matter?

The patented double-shear nailing design distributes the load through two points on each joist nail, resulting in greater connection strength. This allows for fewer nails and faster installation while still meeting required load values.

Can the tabs on the LUS26-3 be bent or removed to fit a specific application?

No. The tabs on the LUS26-3 must not be bent or removed. Modifying the hanger in this way can compromise the structural integrity and load capacity of the connection.

What corrosion protection does the LUS26-3 offer?

The LUS26-3 features a G90 zinc galvanized coating, which provides an extra level of corrosion resistance, making it suitable for applications where moisture exposure is a concern.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specific details.
