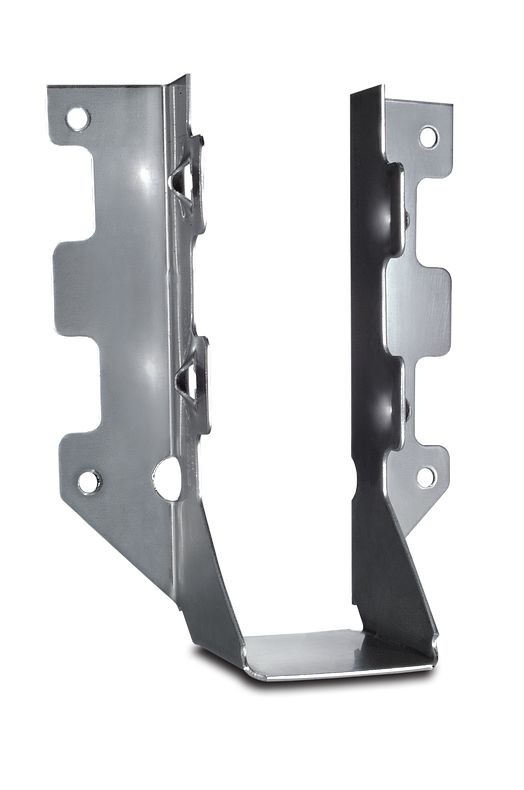

The Simpson LUS26SS LUS Stainless-Steel Face-Mount Joist Hanger by Simpson is an economical, easy-to-install hanger engineered to support joists, rafters, and beams in common lumber framing applications. Its patented double-shear nailing design distributes the load through two points on each joist nail, delivering greater connection strength with fewer fasteners and faster installation. Built from 18-gauge stainless steel, this face-mount hanger provides high and severe corrosion resistance, making it a reliable choice for demanding environments where long-term structural performance is essential.

Key Features

• Patented double-shear nailing design - distributes the load through two points on each joist nail, providing greater strength while allowing for fewer nails and faster installation
• Speed prongs - hold the hanger in place during installation for quick, accurate positioning without extra hands
• Angled joist nailing - allows fasteners to be driven more easily in tight or confined framing spaces, reducing frustration on the job
• 18-gauge stainless steel construction - delivers high and severe corrosion resistance, keeping the connection structurally sound in harsh or moisture-prone environments
• Fits nominal 2x6 and 2x8 lumber - supports the most common joist and rafter sizes used in residential and light commercial framing
• Tabs must not be bent or removed - preserving the factory geometry protects the load rating and structural integrity of the connection

Why This Product

• More strength, fewer fasteners - the patented double-shear nailing design achieves a stronger joist connection than conventional single-shear hangers while actually reducing the number of nails required, saving both time and material cost on every installation
• Built for corrosive environments - stainless steel construction makes this hanger the appropriate choice where standard galvanized connectors are insufficient, including coastal, high-humidity, and chemically exposed framing applications
• Fast, intuitive installation - speed prongs and angled joist nailing work together so contractors and builders can set and fasten the hanger quickly, even in tight bays, without sacrificing connection quality
• Versatile fit for standard lumber framing - compatibility with both 2x6 and 2x8 nominal members means one hanger model covers a range of common rafter, joist, and beam framing scenarios without requiring multiple SKUs on site

Specifications

• MPN: LUS26SS
• Brand: Simpson Strong-Tie
• Member Size: 2x6 and 2x8
• Seat Depth: 1-3/4 in.
• Width: 1-9/16 in.
• Height: 4-3/4 in.
• Gauge: 18
• Material: Stainless Steel
• Finish: Stainless Steel
• Country of Origin: United States

Approved Applications

• Face-mount joist, rafter, and beam connections requiring support underneath the member
• Common lumber framing applications with 2x6 and 2x8 nominal lumber sizes
• High and severe corrosion environments where stainless steel construction is required
• Applications requiring tested, load-rated, and code-compliant hanger connections

Frequently Asked Questions

What fasteners are required to install the LUS26SS?

Stainless-steel connectors require stainless-steel fasteners. Install with Simpson Strong-Tie Strong-Drive SD Connector SS screws: (4) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (8) 0.148 in. x 3 in. Strong-Drive SCNR Ring-Shank Connector nails. Compatible models include: SD9112SS, SD9212SS, and SSA10D.

What is the benefit of the double-shear nailing design?

The patented double-shear nailing design distributes the load through two points on each joist nail, providing greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection.

Can the tabs on the LUS26SS be bent or removed during installation?

No. The tabs on the LUS26SS must not be bent or removed. Modifying the tabs can compromise the structural integrity and load performance of the hanger.

Why should stainless steel fasteners be used with the LUS26SS?

Because the LUS26SS is made from stainless steel for high and severe corrosion resistance, using non-stainless fasteners would introduce dissimilar metals that are susceptible to corrosion and could undermine the performance and longevity of the connection. Always pair stainless-steel connectors with stainless-steel fasteners.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
