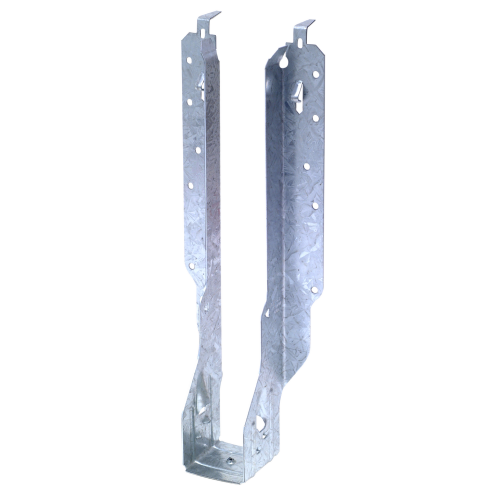

The Simpson IUS2.06/11.88 IUS Galvanized Face-Mount Joist Hanger is a hybrid connector engineered to support 2 in. x 11-7/8 in. engineered wood I-joists by combining the advantages of both face-mount and top-mount hanger designs. Fully compatible with shallow-flange I-joists, this hanger from Simpson delivers a strong, secure connection through an innovative Strong-Grip seat that lets the I-joist snap into place quickly and reliably - making it a practical choice for residential and light commercial framing applications.

Key Features

• Strong-Grip seat with self-jigging locator tabs - positions the I-joist automatically and snaps it securely into place, reducing installation time and minimizing the chance of misalignment
• Easy-to-reach face nail placement - allows fasteners to be driven without awkward repositioning, keeping installation straightforward and efficient
• Hybrid face-mount and top-mount design - delivers the structural benefits of both hanger styles in a single connector, making it fully compatible with shallow-flange I-joists
• 18-gauge steel construction - provides a sturdy, load-bearing connection suited to engineered lumber framing without adding unnecessary bulk
• Zinc Galvanized G90 coating - provides extra corrosion resistance, extending the service life of the connector in moisture-prone environments

Why This Product

• Faster installs with fewer steps - the Strong-Grip seat and self-jigging locator tabs mean the hanger practically positions itself, so framers can fasten the hanger to the header, drop the I-joist in, and snap it into place without extra fussing or joist nails at the seat
• Purpose-built for engineered wood - the IUS series is specifically designed for I-joist construction and is fully compatible with shallow-flange I-joists, so there is no guesswork about fit or performance with engineered lumber
• Durable protection where it counts - the G90 galvanized finish goes beyond basic corrosion resistance, making this hanger a dependable long-term choice in applications where moisture exposure is a real concern
• Trusted manufacturer, domestic production - engineered and produced by Simpson, a widely recognized name in structural connectors, this hanger is made in the United States to consistent quality standards

Specifications

• MPN: IUS2.06/11.88
• Brand: Simpson Strong-Tie
• Member Size: 2 in. x 11-7/8 in.
• Seat Width (W): 2-1/8 in.
• Height (H): 11-7/8 in.
• Gauge: 18
• Coating/Finish: Zinc Galvanized, G90
• Install With: 10d common nails (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of joist is this hanger designed to support?

This hanger is designed to support 2 in. x 11-7/8 in. engineered wood I-joists. It is fully compatible with shallow-flange I-joists and functions as a hybrid that incorporates the advantages of both face-mount and top-mount hanger designs.

What fasteners are required to install the IUS2.06/11.88?

This hanger should be installed with 10d common nails. The design features easy-to-reach face nails that contribute to fast, straightforward installation.

How does the Strong-Grip seat work?

The Strong-Grip seat allows the I-joist to snap securely into place after the hanger has been fastened to the header. This eliminates the need for joist nails at the seat, reducing installed cost and speeding up the installation process.

What corrosion protection does this hanger have?

The IUS2.06/11.88 is coated with a Zinc Galvanized G90 finish, which provides extra corrosion resistance, making it suitable for applications where moisture exposure is a concern.

Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
