Product Description

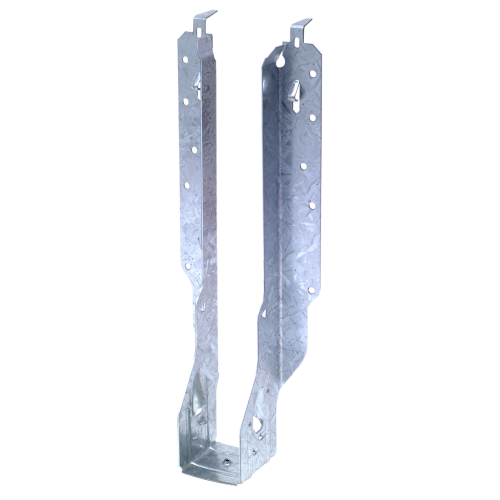

The Simpson IUS1.81/11.88 IUS Galvanized Face-Mount Joist Hanger is a hybrid connector from Simpson that brings together the strengths of both face-mount and top-mount hanger designs into a single solution engineered for 1-3/4 in. x 11-7/8 in. engineered wood members. Fully compatible with shallow-flange I-joists, it delivers a strong, reliable connection while keeping installation straightforward thanks to its Strong-Grip seat, self-jigging locator tabs, and easy-to-reach face nail positions. Built from 18-gauge steel with a G90 zinc galvanized coating, this I-joist hanger is a dependable choice for framing applications where performance and corrosion resistance both matter.
Key Features
- Strong-Grip seat with self-jigging locator tabs - lets the I-joist snap securely into place during installation, reducing positioning time and keeping the hanger properly aligned without extra effort.
- Easy-to-reach face nail locations - speeds up fastening so crews spend less time on each connection and more time moving the job forward.
- Hybrid face-mount and top-mount design - combines the best of both hanger styles in one product, giving installers greater flexibility and a secure connection suited to shallow-flange I-joists.
- 18-gauge steel construction - provides the structural integrity needed to support joist, rafter, and beam loads in residential and light commercial framing.
- G90 zinc galvanized coating - adds an extra layer of corrosion resistance to help the hanger hold up over the long term, even in more demanding environments.
- Installs with 10d common nails - uses a widely available, standard fastener so there is no need to source specialty hardware before getting to work.
Why This Product
- Two hanger technologies in one - the IUS hybrid design incorporates the advantages of both face-mount and top-mount hangers, meaning buyers get greater installation flexibility without needing separate products for different framing conditions.
- Faster installation from start to finish - the Strong-Grip seat, self-jigging tabs, and accessible face nail positions all work together to simplify the connection process, which translates directly to time saved on the job site.
- Built specifically for engineered wood and I-joists - sized precisely for 1-3/4 in. x 11-7/8 in. members and fully compatible with shallow-flange I-joists, so the fit is correct and the connection performs as intended without field modification.
- Long-term durability through G90 galvanization - the zinc galvanized finish provides extra corrosion resistance that helps protect the connection over the life of the structure, making this hanger a sound investment in lasting performance.
Specifications
- MPN: IUS1.81/11.88
- Brand: Simpson Strong-Tie
- Member Size: 1-3/4 in. x 11-7/8 in.
- Seat Width (W): 1-7/8 in.
- Height (H): 11-7/8 in.
- Gauge: 18
- Coating/Finish: Zinc Galvanized, G90
- Install With: 10d common nails (sold separately)
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What type of lumber or engineered wood is this hanger designed for?
- This hanger is designed for engineered wood members with an actual joist size of 1-3/4 in. x 11-7/8 in., and is fully compatible with shallow-flange I-joists.
- What makes the IUS series a hybrid hanger?
- The IUS series incorporates the advantages of both the face-mount and top-mount hanger designs into a single product, providing greater installation flexibility and a strong, secure connection.
- What fasteners are required to install this joist hanger?
- This hanger is installed with 10d common nails. The Strong-Grip seat allows the I-joist to snap into place without the need for joist nails, reducing installation time and cost.
- What corrosion protection does this hanger offer?
- This hanger features a G90 zinc galvanized coating, which provides extra corrosion resistance to help ensure long-term performance in demanding environments.
Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
