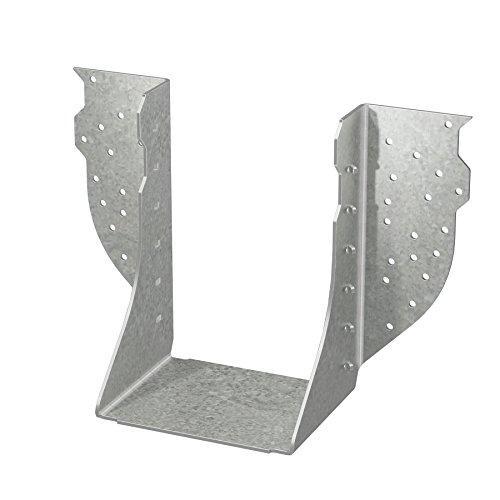

The Simpson HGUS28-3 Face-Mount Joist Hanger is a heavy-duty structural connector engineered by Simpson Strong-Tie for applications where higher load values are needed. Built to support triple 2x8 framing members, this 12-gauge face-mount hanger delivers a strong, reliable connection underneath the joist, rafter, or beam - making it a dependable choice for demanding residential and commercial framing projects. Its double-shear nailing design and G90 zinc galvanized coating combine structural performance with long-term durability.

Key Features

• Double-shear nailing design - distributes the load through two points on each joist nail, giving you greater strength and connection integrity at every fastening point
• Fewer nails required with standard 16d common nails - speeds up installation and eliminates the need for specialty fasteners, reducing both labor time and material costs
• Engineered for triple 2x8 framing members - sized precisely to accommodate three 2x8 members side by side, ensuring a secure and properly fitted connection without field modification
• 12-gauge steel construction - provides the structural rigidity and load-carrying capacity needed for high-demand framing applications
• G90 zinc galvanized coating - offers extra corrosion resistance to help extend the service life of the hanger in tough jobsite and environmental conditions
• Tabs must not be bent or removed - preserving the hanger's original form is essential to maintaining its rated load capacity and engineered performance

Why This Product

• Built for high-load applications - the HGUS series is specifically designed for situations where standard hangers fall short, making this an ideal choice when your framing calls for higher load values at the connection point
• Faster, simpler installation without sacrificing strength - the double-shear nailing system allows fewer nails and the use of standard common nails for all connections, so crews can work efficiently without compromising structural integrity
• Long-term corrosion protection built in - the G90 zinc galvanized finish provides extra resistance against corrosion, helping protect your structural investment over the life of the build
• Trusted Simpson Strong-Tie engineering - part of a diverse line of Simpson Strong-Tie face-mount hangers designed to handle demanding structural applications with consistent, code-compliant performance

Specifications

• MPN: HGUS28-3
• Member Size: Triple 2x8
• Gauge: 12
• Coating/Finish: Zinc Galvanized, G90
• Install With: 16d common nails
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size framing member is the HGUS28-3 designed to support?

The HGUS28-3 is designed for a nominal joist size of Triple 2x8, making it suitable for applications requiring a face-mount hanger that accommodates three 2x8 framing members side by side.

What type of nails should be used to install the HGUS28-3?

The HGUS28-3 should be installed with 16d common nails. The double-shear nailing design allows for the use of fewer nails while still achieving strong, reliable connections.

What is the corrosion resistance of the HGUS28-3?

The HGUS28-3 features a G90 zinc galvanized coating, which provides extra corrosion resistance and helps extend the service life of the hanger in demanding environments.

Are there any important handling precautions to keep in mind during installation?

Yes - do not bend or remove the tabs on the HGUS28-3. Maintaining the hanger's original form is essential to ensuring it performs as engineered and delivers the rated load capacity.

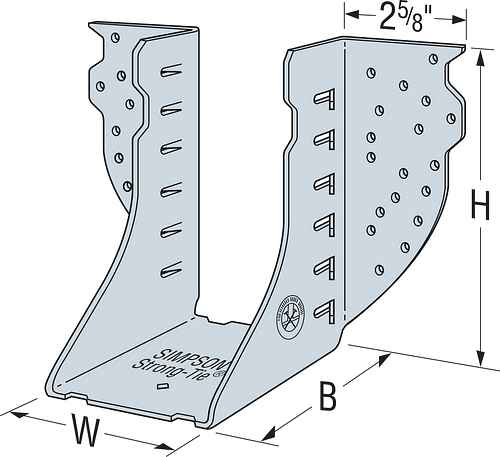

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
