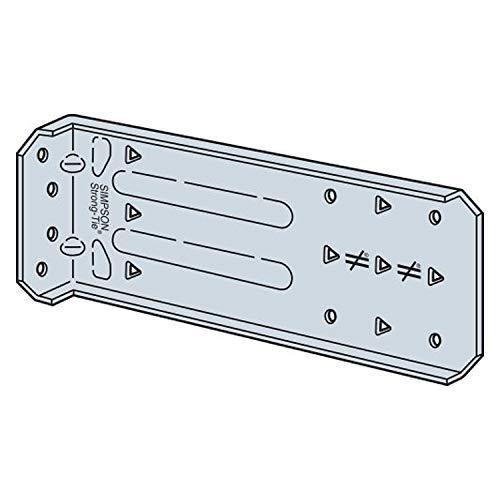

The Simpson FCB 9-1/2 in. Bypass Framing Fixed-Clip Connector is an economical, high-performance clip connector from Simpson built for a wide range of cold-formed steel framing applications. Drawing on more than 50 years of structural product design and testing experience, Simpson engineered this fixed-clip connector to deliver reliable performance across tension, compression, shear, and in-plane load conditions - giving structural designers a versatile, code-friendly solution for steel-to-steel bypass framing connections. This package includes 25 connectors.

Key Features

• Rated for tension, compression, shear, and in-plane loads - covers the full range of structural load demands in cold-formed steel framing, so one connector works across multiple application types
• Varying screw and anchorage patterns achieve different load levels - gives engineers and designers the flexibility to dial in the exact load performance required without swapping to a different product
• Strategically placed stiffeners, embossments, and anchor holes - these engineered details maximize connector performance, reducing the need for supplemental hardware or oversized fastener schedules
• Made from 54 mil (16-gauge) steel - heavy-gauge construction provides robust structural capacity suited for demanding CFS framing conditions
• Zinc Galvanized, G90 coating and finish - provides corrosion resistance for long-term durability in framing environments where moisture exposure is a concern
• Installs with #12 self-drilling screws to CFS framing - compatible with standard cold-formed steel installation methods, keeping the fastening process straightforward on the job site

Why This Product

• One connector, multiple load scenarios - because the FCB clip is rated for tension, compression, shear, and in-plane loads simultaneously, specifiers can use a single connector family across varied cold-formed steel framing conditions rather than sourcing multiple product types
• Built-in design flexibility reduces engineering workarounds - the ability to vary screw and anchorage patterns to conform to desired load levels means the connector adapts to project requirements, not the other way around
• Performance-engineered geometry, not just raw steel - the strategically placed stiffeners, embossments, and anchor holes are purposefully designed to maximize structural output from a 16-gauge profile, delivering high performance in a compact, economical form factor
• Backed by Simpson's cold-formed steel expertise - with more than 50 years dedicated to structural connector design, testing, and manufacturing, Simpson brings proven engineering rigor to every FCB clip, giving designers confidence in published load values and installation requirements

Specifications

• MPN: FCB49.5-R25
• Brand: Simpson Strong-Tie
• Length: 9-1/2 inches
• Thickness: 54 mil
• Gauge: 16
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Installation: Install with (4 - 12) #12 self-drilling screws to CFS framing
• Dimensions: 1-1/2 in. x 4 in.
• Country of Origin: United States
• Package Quantity: 25

What's Included

• 25 FCB49.5 bypass framing fixed-clip connectors (screws not included)

Frequently Asked Questions

What load types is the Simpson FCB49.5 connector rated for?

The FCB49.5 connector is rated for tension, compression, shear and in-plane loads, making it suitable for a variety of demanding cold-formed steel framing applications.

What gauge and thickness is the FCB49.5 connector made from?

The FCB49.5 is made from 54 mil (16-gauge) steel, providing robust structural performance in cold-formed steel construction.

What corrosion protection does the FCB49.5 connector offer?

The connector features a Zinc Galvanized, G90 coating and finish, which provides corrosion resistance for long-term durability in framing applications.

How is the FCB49.5 connector installed?

The FCB49.5 is installed with (4 - 12) #12 self-drilling screws to CFS framing. Screws are not included in the package. The varying screw and anchorage patterns allow designers to conform to desired load levels.

Note: Product dimensions may differ from picture. Please see item description for specifications.
