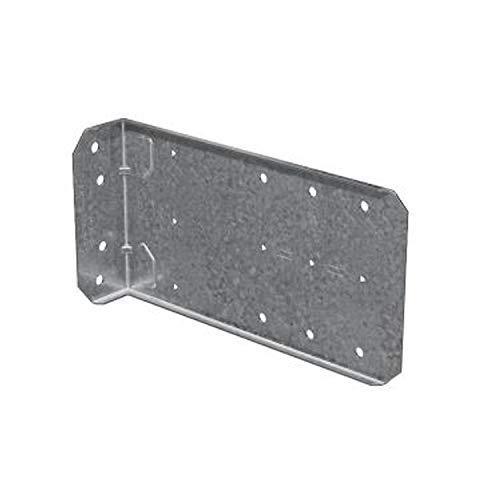

The Simpson FCB47.5 Bypass Framing Fixed-Clip Connector is an economical, high-performance clip connector engineered for cold-formed steel framing applications where reliable multi-directional load resistance is essential. Built by Simpson Strong-Tie - a manufacturer with more than 50 years of experience in structural product design, testing, and manufacturing - this 7-1/2 in. connector is rated for tension, compression, shear, and in-plane loads, giving structural designers the flexibility to specify different screw and anchorage patterns that conform to desired load levels. Fabricated from 54 mil (16-gauge) steel with a G90 zinc galvanized finish, it is a dependable choice for steel-to-steel bypass framing connections in demanding CFS construction environments.

Key Features

• Rated for tension, compression, shear, and in-plane loads - provides comprehensive load resistance in a single connector, reducing the need for supplemental hardware across multiple load directions.
• Varying screw and anchorage patterns achieve different load levels - gives engineers and designers the ability to fine-tune connection performance to meet project-specific structural requirements without changing the connector itself.
• Strategically placed stiffeners, embossments, and anchor holes - engineered details that maximize connector performance and structural efficiency in cold-formed steel framing assemblies.
• 54 mil (16-gauge) steel construction - delivers the material thickness needed for dependable performance in structural CFS bypass framing connections.
• G90 zinc galvanized finish - provides corrosion resistance suitable for galvanized cold-formed steel framing environments, helping extend connector service life.
• Installs with 4 to 12 #12 self-drilling screws - compatible with standard CFS installation practices, allowing fastener count to be adjusted in line with the required load level.

Why This Product

• One connector, multiple load paths - rated for tension, compression, shear, and in-plane loads simultaneously, the FCB47.5 simplifies specification and reduces the complexity of detailing bypass framing connections in cold-formed steel structures.
• Flexible by design - the ability to vary both screw patterns and anchorage configurations means a single connector model can meet a range of load level requirements, making it a versatile choice across different CFS framing projects.
• Performance-engineered details - stiffeners, embossments, and anchor holes are not incidental features but purposefully positioned elements that work together to maximize the structural output of each connector.
• Backed by over 50 years of CFS expertise - Simpson Strong-Tie developed this connector as part of a comprehensive cold-formed steel product line built on decades of dedicated structural testing and manufacturing, giving specifiers and installers confidence in its real-world performance.

Specifications

• Manufacturer Part Number (MPN): FCB47.5-R25
• Series: FCB
• Length: 7-1/2 in.
• Thickness: 54 mil
• Gauge: 16
• Coating / Finish: Zinc Galvanized, G90
• Load Ratings: Tension, Compression, Shear, In-Plane
• Installation Fasteners: Install with (4 - 12) #12 self-drilling screws to CFS framing
• Packaging Quantity: 25 per package
• Dimensions: 1-1/2 in. x 4 in.
• Country of Origin: United States

Approved Applications

• Bypass framing connections in cold-formed steel construction
• Steel-to-steel framing connections requiring tension, compression, shear, and in-plane load ratings
• Framing applications where varying screw and anchorage patterns are needed to meet specific load level requirements
• Applications requiring a corrosion-resistant connector suitable for G90 galvanized environments

What's Included

• 25 x Simpson Strong-Tie FCB 7-1/2-in. Bypass Framing Fixed-Clip Connectors (FCB47.5)

Note: Screws are not included.

Note: Product dimensions may differ from picture. Please see item description for specifications.

Frequently Asked Questions

What types of loads is the FCB47.5 connector rated for?

The FCB47.5 is rated for tension, compression, shear, and in-plane loads, making it suitable for a variety of structural framing applications in cold-formed steel construction.

What fasteners are required to install the FCB47.5 connector?

The FCB47.5 should be installed using 4 to 12 #12 self-drilling screws to cold-formed steel (CFS) framing. The ability to vary the screw and anchorage pattern allows designers to achieve different desired load levels.

What material and finish is the FCB47.5 made from?

The FCB47.5 is fabricated from 54 mil (16-gauge) steel and features a G90 zinc galvanized finish for corrosion resistance.

How many connectors are included in the FCB47.5-R25 package?

The FCB47.5-R25 package contains 25 connectors, each measuring 7-1/2 inches in length.
