Simpson BPS 5/8-6 Slotted Bearing Plate for 5/8 in. Anchor Bolts is engineered to deliver a greater bearing surface than standard cut washers, strengthening and distributing load at critical foundation connections. Designed as a direct replacement for cut washers on foundation anchor bolts, this heavy-duty sill plate washer features a slotted hole that accommodates real-world bolt placement variations, making it a practical and code-compliant choice for both 2x4 and 2x6 wall framing applications.

Key Features

• Slotted hole design - allows lateral adjustability during installation, so the plate seats properly even when anchor bolts are not perfectly centered in the sill plate
• Compatible with 2x4 and 2x6 wall members - offers increased flexibility while meeting the latest code requirements for common residential and light commercial framing configurations
• 3-gauge steel construction - provides the thickness and rigidity needed to effectively distribute load at high-stress anchor bolt connections, outperforming thinner cut washers
• Uncoated steel finish - delivers solid structural performance in standard interior and protected applications where additional coating is not required
• Plate dimensions of 3 in. x 4-1/2 in. - provide a broader bearing footprint than standard cut washers, helping to spread the load across a larger area of the sill plate for a stronger connection

Why This Product

• Built-in adjustability solves a common field problem - the slotted hole lets installers account for anchor bolts that land off-center in the sill plate, reducing the need for rework and keeping projects moving
• Engineered for load distribution, not just fastening - unlike standard cut washers, this bearing plate is specifically designed to strengthen and distribute load at critical foundation-to-framing connections
• Code-compliant flexibility for the two most common wall sizes - verified compatibility with both 2x4 and 2x6 framing means a single plate works across the wall configurations most frequently specified in residential construction
• Simpson quality in heavy-gauge domestic steel - manufactured from 3-gauge steel, this anchor bolt plate brings the structural reliability that contractors and builders expect from Simpson hardware on demanding connection points

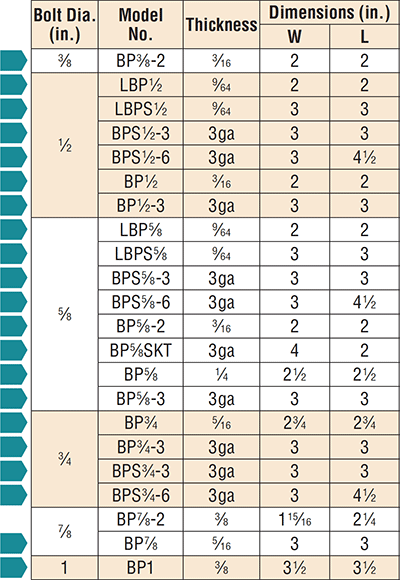

Specifications

• MPN: BPS 5/8-6
• Bolt/Rod Diameter: 5/8 in.
• Plate Width (W): 3 in.
• Plate Length (L): 4-1/2 in.
• Gauge: 3
• Finish: Uncoated Steel
• Coating: None
• Compatible Member Sizes: 2x4, 2x6
• Country of Origin: United States

Frequently Asked Questions

What is the purpose of a bearing plate like the BPS 5/8-6?

Bearing plates give greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at critical connections and are typically used on foundation anchor bolts in place of cut washers.

Why does the BPS 5/8-6 feature a slotted hole instead of a round hole?

The slotted hole allows for adjustability to account for bolts that are not in the middle of the sill plate, making installation more practical in real-world conditions where anchor bolt placement may vary slightly.

What wall member sizes is the BPS 5/8-6 compatible with?

The BPS 5/8-6 offers increased flexibility while meeting the latest requirements of the code for 2x4 and 2x6 walls.

What material and finish does the BPS 5/8-6 have?

The BPS 5/8-6 is made from 3-gauge steel with an uncoated steel finish and no additional coating applied.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
