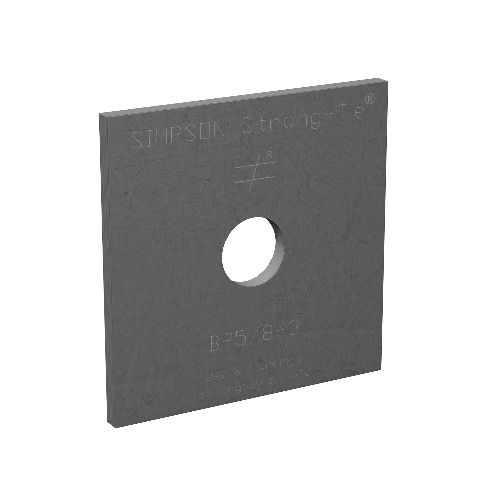

Simpson BP 5/8-3 Bearing Plate is engineered to give a greater bearing surface than standard cut washers, helping to strengthen and distribute the load at critical structural connections. Built from heavy 3-gauge uncoated steel and sized at 3 in. x 3 in. with a 5/8 in. bolt hole, this bearing plate is a dependable upgrade over cut washers wherever foundation anchor bolts must transfer concentrated compressive forces reliably into the surrounding structure.

Key Features

• 5/8 in. bolt diameter compatibility - fits standard 5/8 in. anchor bolts, making it a direct, no-modification replacement for cut washers at foundation connections.
• 3 in. x 3 in. plate size - the larger footprint spreads load across a wider surface area, reducing the risk of localized stress and bearing failure at anchor points.
• 3-gauge steel construction - the heavy plate thickness delivers the rigidity needed to handle demanding compressive loads without deforming under pressure.
• Uncoated steel finish - the bare steel surface is ready for field application or additional treatment as required by the project, with no coating to interfere with custom finishing.

Why This Product

• More effective load distribution than cut washers - the 3 in. x 3 in. bearing area is significantly larger than a standard cut washer, putting more material between the bolt and the substrate to spread force and protect the connection.
• Purpose-built for foundation anchor bolt applications - designed specifically to replace cut washers on foundation anchor bolts, this plate addresses one of the most load-critical connection points in structural assemblies.
• Heavy-gauge steel for high-load reliability - 3-gauge construction means the plate resists bending and compression at the connection, giving builders confidence in structural integrity where it matters most.
• Trusted Simpson engineering - backed by Simpson's reputation for structural connector design, this bearing plate is built to consistent dimensional standards that professionals can count on for critical connections.

Specifications

• MPN: BP 5/8-3
• Bolt/Rod Diameter: 5/8 in.
• Width: 3 in.
• Length: 3 in.
• Gauge: 3
• Material: Uncoated Steel
• Coating: None
• Finish: Uncoated Steel
• Country of Origin: United States

Downloads and Resources

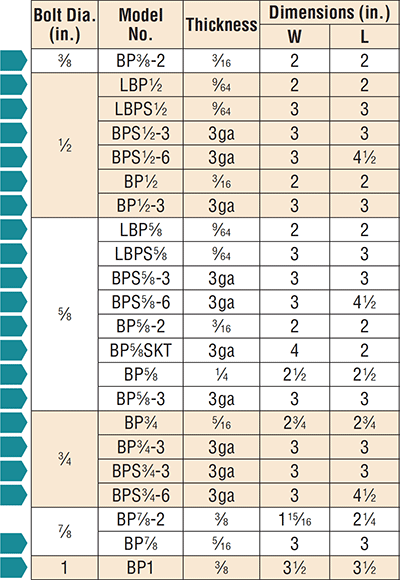

• Model No. BP 5/8-3 Bolt Dia. (in.) 5/8 in Thickness 3 ga. W (in.) 3 L (in.) 3 Coating/Material NoneView Spec Sheet

Frequently Asked Questions

What is the purpose of a bearing plate compared to a standard cut washer?

Bearing plates give greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at critical connections, making them a more effective solution for high-load applications such as foundation anchor bolts.

What bolt diameter is this bearing plate designed to accommodate?

The BP 5/8-3 is designed for use with a 5/8 in. bolt diameter.

What are the dimensions of the BP 5/8-3 bearing plate?

The bearing plate measures 3 in. x 3 in. and is made from 3-gauge steel.

Where is the BP 5/8-3 bearing plate typically used?

Bearing plates are typically used on foundation anchor bolts in place of cut washers, providing improved load distribution at these critical structural connections.

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
