The Simpson BPS 1/2-6HDG Slotted Bearing Plate is a heavy-duty foundation hardware solution engineered to provide a greater bearing surface than standard cut washers, strengthening and distributing the load at critical sill plate and anchor bolt connections. Built from 3-gauge steel with a hot-dip galvanized finish, this slotted bearing plate is designed for use on foundation anchor bolts in 2x4 and 2x6 wall applications where both code compliance and corrosion resistance are non-negotiable.

Key Features

• Slotted hole design - allows adjustability to account for anchor bolts that are not centered in the sill plate, saving time and reducing installation headaches on the job site
• Compatible with 2x4 and 2x6 walls - offers increased flexibility while meeting the latest code requirements for both member sizes, making it a versatile choice across common wall configurations
• Hot-dip galvanized (HDG) finish - delivers extra corrosion resistance for exterior applications and treated-wood environments where standard hardware coatings may fall short
• 3-gauge steel construction - provides the structural thickness needed to strengthen and distribute loads at foundation anchor bolt connections more effectively than a standard cut washer
• 3 in. x 4-1/2 in. plate footprint - offers a broader bearing surface that spreads load over a larger area of the sill plate, reducing stress concentration at the connection point

Why This Product

• Purpose-built for anchor bolt connections - designed specifically to replace standard cut washers at foundation anchor bolt locations, this bearing plate delivers measurably greater load distribution where structural performance matters most
• Built-in adjustability for real-world conditions - the slotted hole accommodates off-center bolt placement, a common field reality, so installers are not forced to modify plates or reposition hardware during framing
• Reliable protection in demanding environments - the hot-dip galvanized coating makes this plate a dependable choice for exterior installations and treated-wood applications where moisture and chemical exposure can degrade unprotected steel over time
• Code-compliant for 2x4 and 2x6 wall systems - meets the latest requirements for both member sizes, giving builders and inspectors confidence that the connection is engineered and approved for its intended application

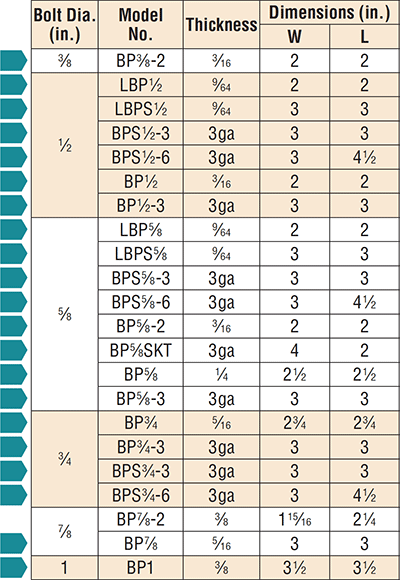

Specifications

• MPN: BPS 1/2-6HDG
• Bolt Diameter: 1/2 in.
• Plate Width: 3 in.
• Plate Length: 4-1/2 in.
• Gauge: 3
• Coating: Hot-Dip Galvanized
• Finish: Hot-Dip Galvanized
• Compatible Member Size: 2x4, 2x6
• Country of Origin: United States

Approved Applications

• Foundation anchor bolt connections in place of standard cut washers
• Sill plate connections on 2x4 and 2x6 walls
• Exterior applications requiring enhanced corrosion resistance
• Treated-wood applications where hot-dip galvanized hardware is required

Downloads and Resources

• View Spec Sheet

Frequently Asked Questions

What is the advantage of using this bearing plate over a standard cut washer?

Bearing plates give greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at these critical connections, making them a more robust solution for foundation anchor bolt applications.

Why does this bearing plate have a slotted hole instead of a round hole?

The slotted hole allows for adjustability to account for bolts that are not in the middle of the sill plate, offering increased flexibility during installation.

What wall sizes is the BPS 1/2-6HDG compatible with?

This bearing plate is compatible with 2x4 and 2x6 walls, and it meets the latest code requirements for both of those member sizes.

Why is hot-dip galvanization important for this bearing plate?

Hot-dip galvanization (HDG) offers extra corrosion resistance, making this bearing plate suitable for exterior and treated-wood applications where standard finishes may not hold up over time.
