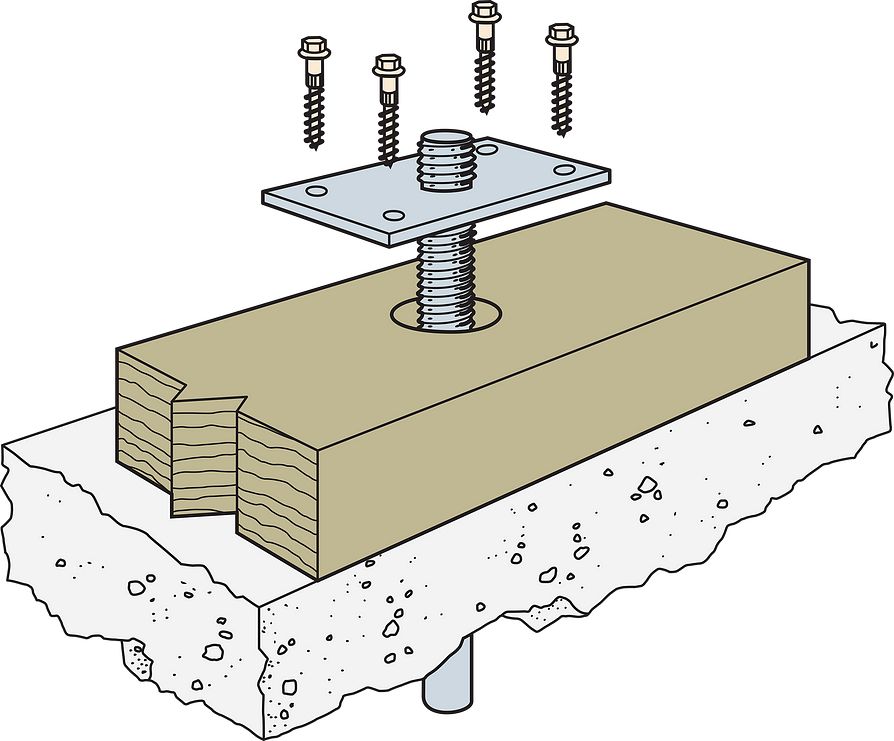

The Simpson Bearing Plate with 5/8 in. Hole, 4x2, Hot-Dip Galvanized with Screws is a structural connector designed to deliver a greater bearing surface than standard cut-washers, helping to distribute load at critical connections where concentrated compressive forces must be transferred between two structural elements. The hot-dip galvanized coating provides robust corrosion resistance, making this plate well-suited for outdoor, exposed, and treated-lumber applications. Screws are included with each pack, and the product is made in the United States.

Key Features

• Greater bearing surface than standard cut-washers - spreads load across a wider footprint at structural connections, reducing the risk of localized stress and connection failure
• Engineered for compressive force transfer - moves concentrated loads between two structural elements reliably, keeping load-bearing assemblies stable and code-consistent
• Hot-dip galvanized coating - delivers robust corrosion resistance for outdoor exposure and compatibility with certain types of treated lumber, extending the service life of the connection
• Compatible with common anchor bolt sizes including 5/8 in. - fits a wide range of structural applications without requiring custom hardware or adapters
• Screws included - everything needed for installation arrives together, reducing trips to the supply house and keeping projects on schedule
• Made in the United States - consistent manufacturing standards support predictable performance across structural applications

Why This Product

• A complete, ready-to-install solution - the bearing plates ship with screws already included, so contractors and builders have the full hardware set in hand without sourcing fasteners separately
• Built for demanding environments - the hot-dip galvanized finish resists corrosion in outdoor and exposed conditions and holds up where certain treated lumber products would compromise an uncoated plate
• Broader load distribution where it counts - the larger footprint compared to standard cut-washers means compressive forces are spread more effectively at critical structural connections, supporting stronger, longer-lasting assemblies
• Versatile across anchor bolt sizes - approved for use with bolt diameters ranging from 3/8 in. through 1 in., this plate fits a wide variety of structural scenarios without requiring a different product for each application

Specifications

• Model Number: BP5/8SKTHDG
• Bolt Diameter: 5/8 in.
• Thickness: 3 ga.
• Width (W): 4 in.
• Length (L): 2 in.
• Coating / Material: Hot-Dip Galvanized (HDG)
• Package Quantity: 50 Bearing Plates with Screws
• Country of Origin: United States

Approved Applications

• Structural connections requiring load distribution beyond what standard cut-washers provide
• Transfer of concentrated compressive forces between two structural elements
• Outdoor and exposed environments where corrosion resistance is required
• Connections involving certain types of treated lumber
• Installations utilizing common anchor bolt sizes: 3/8", 1/2", 5/8", 3/4", 7/8", and 1"

What's Included

• 50 x Hot-Dip Galvanized Bearing Plates (BP5/8SKTHDG)
• Screws included with each pack

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.

Frequently Asked Questions

What is the advantage of using this bearing plate over a standard cut-washer?

This bearing plate provides a greater bearing surface than standard cut-washers, which improves load distribution at critical structural connections. Its 4 in. x 2 in. footprint and 3 gauge thickness help transfer concentrated compressive forces between two structural elements more effectively than a smaller cut-washer would.

Is this bearing plate compatible with treated lumber?

Yes. The hot-dip galvanized (HDG) coating provides robust corrosion resistance that makes this plate suitable for use with certain types of treated lumber, in addition to general outdoor exposure.

What bolt size does this bearing plate accommodate?

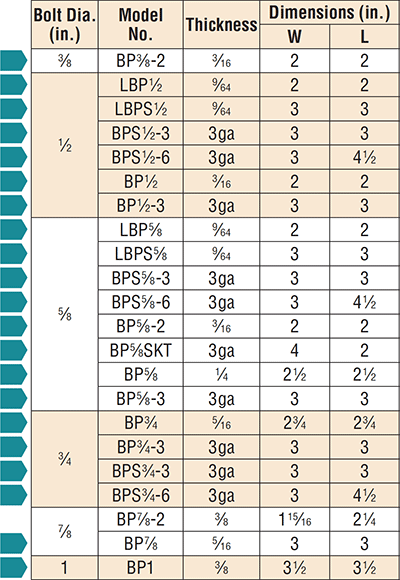

This bearing plate is designed with a 5/8 in. hole, making it sized for a 5/8 in. anchor bolt. Simpson bearing plates of this style are also available in other hole sizes to accommodate most common anchor bolt sizes ranging from 3/8 in. up to 1 in.

Does this package include everything needed for installation?

Yes. Each 50-pack of the BP5/8SKTHDG includes screws along with the bearing plates, providing a complete, ready-to-install solution without the need to source additional fasteners separately.
