Product Description

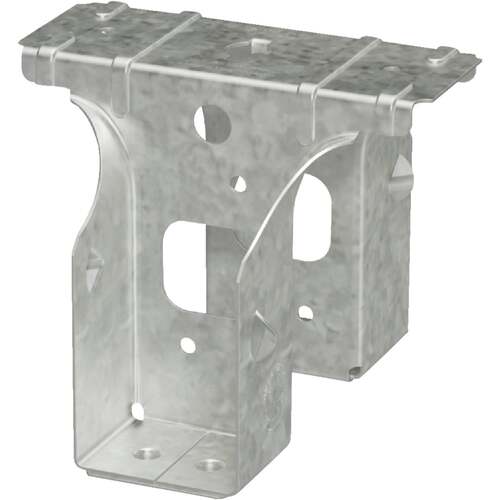

The Simpson 2x8 Post Frame LVL Saddle Hanger is a top-flange saddle hanger engineered specifically for LVL joists in post-frame construction. Built as a solid, one-piece unit with a G90 zinc galvanized coating, this hanger is designed to deliver reliable structural connections, efficient installation, and long-term performance in demanding post-frame applications.
Key Features
- Top-flange saddle design for post-frame construction - positions the hanger at the top of the header for accurate, fast seating of LVL joist members without extra shimming or adjustment
- Engineered specifically for LVL joists - ensures a proper, code-consistent fit for laminated veneer lumber, eliminating the guesswork of using a generic hanger with engineered lumber
- Dome-shaped joist nail holes - guide nails into the correct installation angle automatically, promoting consistent fastening and reducing the chance of misdriven fasteners on the job site
- Folded seat raises the joist slightly above the seat radius - allows for a tighter, more secure connection against the back of the hanger, improving overall connection integrity
- Solid one-piece top flange - simplifies placement and speeds up installation by giving installers a stable, self-supporting unit that stays in position while fasteners are driven
- Installation prongs - hold the hanger in place during fastening, keeping both hands free and reducing fumbling on the framing crew
- G90 zinc galvanized coating - provides enhanced corrosion resistance suited to post-frame environments where long-term exposure to the elements is a real concern
Why This Product
- Purpose-built for LVL post-frame applications - this hanger is not a general-purpose connector adapted for engineered lumber; it is designed from the ground up for LVL joists in post-frame construction, which means a more reliable fit and connection from the start
- Faster, more consistent installation - the combination of a solid one-piece top flange, built-in installation prongs, and dome-shaped nail holes works together to reduce installation time and keep fastening angles correct, which matters on large post-frame projects with many hangers to set
- Corrosion resistance where it counts - the G90 zinc galvanized coating goes beyond basic protection, making this hanger a practical choice for post-frame structures that face ongoing moisture exposure over their service life
- Made in the United States by Simpson - the hanger is produced domestically under the Simpson brand, giving contractors confidence in consistent manufacturing quality and material traceability for inspections and project documentation
Specifications
- Model No.: PFDL28B
- Joist Size: 2x8
- Gauge: 20
- Width (in.): 1 9/16
- Height (in.): 7
- B (in.): 1 1/4
- TF (in.): 1 13/16
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Post-frame construction with LVL joists
- Structural connections requiring top-flange saddle hanger support
- Applications utilizing 2x8 LVL joist members
Note: Product dimensions may differ from picture.
Frequently Asked Questions
What type of joist is the PFDL28B designed for?
The PFDL28B is designed specifically for LVL (Laminated Veneer Lumber) joists. PFDLB saddle models are intended for LVL joists, while PFDSB saddle models are for back-to-back 2x joists.
What fasteners are required to install the PFDL28B?
Installation requires 0.148 in. x 1-1/2 in. nails or 0.148 in. x 3 in. nails. The 0.148" x 3" purlin nails must be driven at an angle through the purlin into the header and combined with top nails to achieve table loads. The 0.148" x 1-1/2" purlin nails must be driven at an angle into the purlin but do not penetrate into the header, and must be combined with back face nailing.
What is the coating on the PFDL28B and why does it matter?
The PFDL28B features a Zinc Galvanized, G90 coating. This level of galvanization provides enhanced corrosion resistance, making the hanger suitable for use in post-frame structures where long-term durability and protection against the elements are important.
How does the double-shear nailing design benefit the installation?
The double-shear nailing design distributes the load through two points on each joist, providing greater strength with fewer nails. This results in a stronger, more efficient connection while simplifying the fastening process during installation.
