Product Description

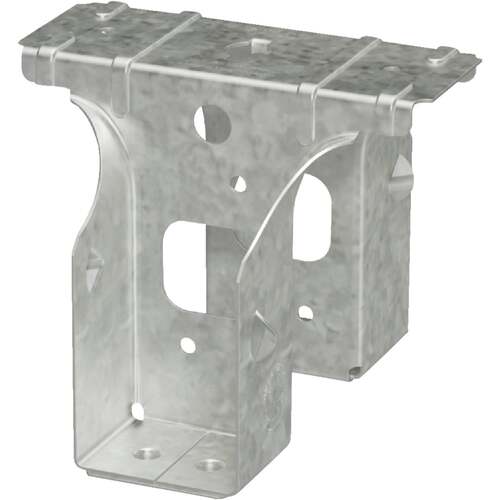

The Simpson PFDL26B 2x6 LVL Galvanized Post Frame Double Saddle Hanger is a top-flange saddle hanger engineered specifically for post-frame construction applications that call for LVL joist connections. Built in the United States and finished with a Zinc Galvanized G90 coating, this hanger is purpose-built for contractors and builders who need a reliable, corrosion-resistant connection in demanding post-frame environments.
Key Features
- Top-flange saddle hanger design for post-frame construction - seats the joist from above the header, making it well suited for the framing sequences common in post-frame building systems without requiring face-nailing access from below.
- PFDLB saddle model engineered for LVL joists - matches the specific dimensional and structural characteristics of Laminated Veneer Lumber, ensuring a properly fitted connection rather than a generic approximation.
- Dome-shaped joist nail holes - guide nails into the correct installation angle automatically, reducing the chance of misdriven fasteners and helping ensure a structurally sound connection every time.
- Folded seat raises the 2x joist slightly above the seat radius - this deliberate lift pulls the joist tight against the back of the hanger, producing a snug, flush fit that eliminates unwanted movement at the connection point.
- Solid one-piece top flange - provides a stable, continuous bearing surface that speeds up installation and supports accurate positioning of the hanger on the header in a single step.
- Double-shear nailing design - distributes load through two points on each fastener, which increases the load-carrying capacity of each nail and contributes to a stronger overall connection.
- Zinc Galvanized G90 coating on 20-gauge steel - delivers corrosion resistance appropriate for post-frame environments where moisture exposure is a routine concern, helping the hanger maintain structural integrity over time.
Why This Product
- Purpose-built for LVL joists in post-frame systems - unlike general-purpose hangers, the PFDLB saddle model is specifically sized and engineered for LVL joist installations, so builders get a connection designed around the actual material they are using rather than a workaround solution.
- Installation features that reduce error on the job site - the dome-shaped nail holes and solid one-piece top flange work together to guide proper fastener angle and hanger positioning, which shortens install time and reduces the risk of mistakes in the field.
- Corrosion-resistant finish suited for post-frame environments - the G90 galvanized coating on this Simpson hanger addresses one of the most common durability concerns in agricultural and commercial post-frame construction, where exposure to moisture and condensation is expected.
- Made in the United States - the PFDL26B is domestically produced, which can support project specifications or procurement requirements that prioritize domestic manufacturing.
Specifications
- Model No.: PFDL26B
- Joist Size: 2x6
- Gauge: 20
- Width (in.): 1 9/16
- Height (in.): 5 1/4
- B (in.): 1 1/4
- TF (in.): 1 13/16
- Coating/Material: Zinc Galvanized, G90
- Fasteners Required: 0.148 in. x 1-1/2 in. nails or 0.148 in. x 3 in. nails (sold separately)
- Country of Origin: United States
Approved Applications
- Post-frame construction requiring top-flange saddle hanger connections
- LVL joist installations in post-frame building systems
Note: Product dimensions may differ from picture.
Frequently Asked Questions
What type of joists is the PFDL26B designed to support?
The PFDL26B is a PFDLB saddle model, which is specifically designed for use with LVL (Laminated Veneer Lumber) joists. It is sized for 2x6 LVL joists in post-frame construction applications.
What fasteners are required to install the PFDL26B?
Installation requires either 0.148 in. x 1-1/2 in. nails or 0.148 in. x 3 in. nails. Note that 0.148" x 3" purlin nails must be driven at an angle through the purlin into the header and combined with top nails to achieve table loads. The 0.148" x 1-1/2" purlin nails must be driven at an angle into the purlin but do not penetrate into the header.
What is the gauge and coating of the PFDL26B?
The PFDL26B is fabricated from 20-gauge steel and features a Zinc Galvanized G90 coating, which provides corrosion resistance well suited for post-frame construction environments.
How does the double-shear nailing design benefit this hanger's performance?
The double-shear nailing design distributes the load through two points on each joist, providing greater strength with fewer nails compared to single-shear configurations. This results in a more efficient and robust connection in post-frame applications.
