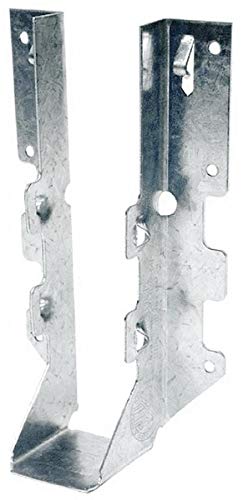

The Simpson LUS28Z LUS ZMAX Galvanized Face-Mount Joist Hanger from Simpson is an economical, easy-to-install connector engineered to deliver strong, reliable support underneath joists, rafters, or beams in residential and light commercial construction. Built from 18-gauge steel with a ZMAX galvanized finish, this face-mount hanger is purpose-built for exterior applications and connections involving ACQ, CA, or other treated lumber where enhanced corrosion resistance is critical. Its patented double-shear nailing design distributes load through two points on each joist nail, reducing the total number of fasteners needed while maintaining a high-strength connection - making it a practical choice for contractors and builders working with common 2x8 and 2x10 lumber sizes.

Key Features

• Patented double-shear nailing design - distributes load through two points on each joist nail, delivering greater strength with fewer nails and faster overall installation
• Speed prongs - hold the hanger in position during layout so installers can work efficiently without a second set of hands
• Angled joist nailing - allows fasteners to be driven more easily in confined or tight framing spaces where straight-on access is limited
• ZMAX galvanized coating - provides extra corrosion resistance beyond standard galvanization, making this hanger well suited for exterior conditions and treated-wood connections where moisture and chemical exposure are concerns
• 18-gauge steel construction - offers a durable, sturdy build while keeping the hanger lightweight enough for quick, single-person handling on the job site
• Compatible with common nail and screw fasteners - accepts all common nails as well as Simpson Strong-Drive SD Connector screws and SCN Smooth-Shank Connector nails, giving installers flexibility in fastener choice
• Fits nominal 2x8 and 2x10 members - accommodates two of the most widely used joist sizes in residential framing, reducing the need to stock multiple hanger models

Why This Product

• Fewer nails, no compromise on strength - the patented double-shear nailing design means each nail works harder by carrying load at two shear planes, so you drive fewer fasteners while meeting the same connection requirements - saving time on every install
• Built specifically for treated-wood and exterior use - the ZMAX galvanized finish is designed to hold up against the corrosive chemistry of ACQ and CA treated lumber, making this hanger a dependable long-term choice where a standard hanger may degrade prematurely
• Speeds up installation without sacrificing accuracy - speed prongs grip the header to keep the hanger positioned correctly before any fasteners are driven, and angled joist nailing ports make driving nails manageable even in tight framing bays
• Versatile fit for the most common joist sizes - designed for both 2x8 and 2x10 nominal lumber, this single hanger model covers the majority of standard floor and roof framing scenarios, simplifying procurement and jobsite inventory

Specifications

• MPN: LUS28Z
• Member Size: 2x8 and 2x10
• Seat Depth: 1-3/4 in.
• Gauge: 18
• Coating: ZMAX
• Finish: ZMAX
• Width: 1-9/16 in.
• Height: 6-5/8 in.
• Country of Origin: United States

Approved Applications

• Face-mount joist and rafter connections in residential and light commercial construction
• Exterior applications requiring enhanced corrosion resistance
• Connections involving ACQ, CA, or other treated-wood lumber where ZMAX coating is recommended
• Common lumber sizes including 2x8 and 2x10 members

Frequently Asked Questions

What fasteners should be used to install the LUS28Z?

Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (6) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (10) 0.148 in. x 3 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 10DHDG).

What is the benefit of the double-shear nailing design on the LUS28Z?

The patented double-shear nailing design distributes the load through two points on each joist nail, providing greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection.

Why is ZMAX galvanization used on this hanger?

ZMAX galvanization offers extra corrosion resistance, making the LUS28Z well suited for exterior applications and connections involving treated wood where standard galvanization may not provide adequate protection.

Can the tabs on the LUS28Z be bent or removed to fit a specific application?

No. The tabs on the LUS28Z must not be bent or removed. Modifying the tabs can compromise the structural integrity and load-rated performance of the hanger.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
