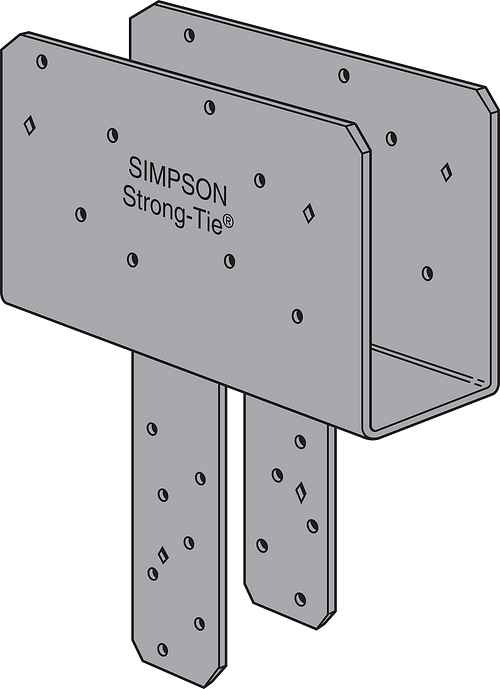

The Simpson CCQ76SDS2.5ROT Column Cap is a heavy-duty connector designed to create strong, reliable column-to-beam connections in wood framing applications. Built to accept a 6-3/4 in. beam and a 6x post, this column cap features 90 deg. rotated straps and is fastened with Strong-Drive SDS Heavy-Duty Connector screws, making it a practical choice for residential and commercial projects where framing conditions call for a non-standard strap orientation and a lower-profile fastening solution.

Key Features

• 90 deg. Rotated Straps - Allows secure attachment in framing layouts where the standard strap orientation cannot be accommodated, giving installers the flexibility to work around obstructions or unusual site conditions.
• Strong-Drive SDS Heavy-Duty Connector Screws Included - Screws are provided with the column cap, enabling faster installation without the need to source separate fasteners or drill through-bolt holes.
• Extended Bearing Seat - The seat extends beyond each side of the column to distribute load from the beam across a greater surface area, supporting the integrity of the column-to-beam connection.
• Greater Net Section Attachment - SDS screw attachment engages a larger net section area of the column compared to a standard through-bolt connection, while keeping a lower profile at the joint.
• 3 Gauge Steel Construction with Gray Paint Finish - Heavy-gauge steel with a durable painted finish provides the structural strength needed for demanding residential and commercial column-to-beam connections.
• Approved for Earthquake and Wind Loading Applications - Engineered for installations requiring enhanced uplift resistance, making it suitable for projects in high-wind or seismic zones.

Why This Product

• Built-In Installation Flexibility - The 90 deg. rotated strap configuration directly addresses job sites where standard column cap orientations are blocked by framing members or other obstructions, reducing the need for field modifications.
• Fasteners Included for a Complete Connection - The Strong-Drive SDS Heavy-Duty Connector screws ship with the cap, so installers have everything needed to complete the column-to-beam connection without sourcing additional hardware.
• Lower Profile Than Through-Bolt Alternatives - The SDS screw-fastened design keeps the connector close to the wood members, which is an advantage in tight framing conditions and for a cleaner finished appearance.
• Domestically Produced by Simpson - This column cap is a Simpson product made in the United States, giving buyers confidence in consistent quality control for structural framing connectors used in load-bearing applications.

Specifications

• Model Number: CCQ76SDS2.5ROT
• Strap Orientation: 90 deg. Rotated Straps
• Beam Size: 6-3/4"
• Post Size: 6"
• Thickness (Gauge): 3 Gauge
• Finish: Gray Paint
• Beam Width: 6-3/4 in.
• Width 1: 6-7/8 in.
• Width 2: 5-1/2 in.
• Length 1: 11 in.
• Height 1: 7 in.
• Country of Origin: United States

Approved Applications

• Wood column-to-beam connections in residential and commercial construction
• Applications requiring enhanced uplift resistance for earthquake or wind loading
• Installations where rotated strap orientation (90 deg.) is required due to framing conditions
• Projects requiring a lower-profile fastener solution compared to standard through bolts

What's Included

• 1 x CCQ76SDS2.5ROT Column Cap
• 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws (provided with the column cap)

Options

• Contact us for Configurable Options and Special orders
• The CCOQ and ECCOQ column cap only (no straps) may be ordered for field-welding to pipe or other columns. Dimensions are the same as the CCQ and ECCQ.

Frequently Asked Questions

What does "rotated straps" mean on the CCQ76SDS2.5ROT, and when would I need this feature?

The straps on this column cap are rotated 90 deg. from the standard orientation. This is useful in installations where the standard strap orientation cannot be accommodated due to framing layout, obstructions, or other site-specific conditions that require a different attachment angle.

Why use SDS screws instead of through bolts for this column cap?

The Strong-Drive SDS Heavy-Duty Connector screws used with this column cap offer several advantages over standard through bolts. They provide faster installation, maintain a lower profile than through bolts, and attach to a greater net section area of the column than a bolt attachment normally entails - helping preserve the structural integrity of the wood.

Is this column cap suitable for high-wind or seismic applications?

Yes. The CCQ76SDS2.5ROT features enhanced uplift loads specifically increased for earthquake or wind loading applications, making it appropriate for use in regions or projects where these forces must be accounted for in the structural design.

What column and beam sizes is this column cap designed to fit?

This column cap is designed for a 6-3/4 x 6 column-to-beam connection. The extended bearing seat goes beyond each side of the column to help distribute beam loads and provide additional support at the connection point.
