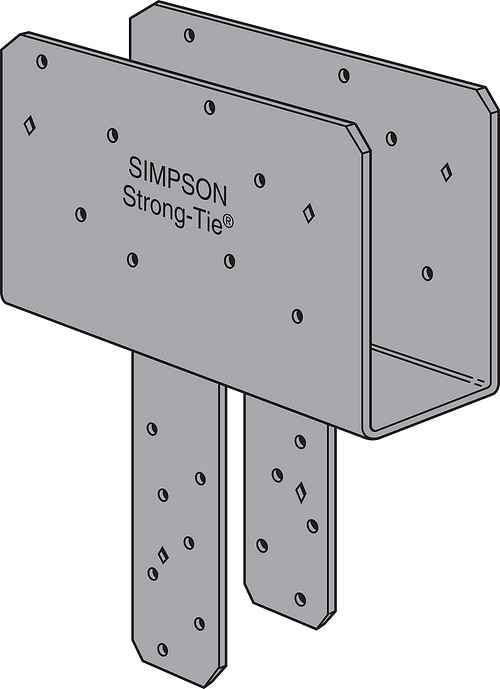

The Simpson 6-3/4 x 4 Column Cap with SDS Screws Rotated Straps is a Simpson engineered connector built to create reliable, load-bearing column-to-beam connections in structural wood framing. Sized for a 6-3/4 in. beam and a 4x post, this cap features 90 deg. rotated straps and is installed using included Strong-Drive SDS Heavy-Duty Connector screws, making it a practical choice for demanding framing applications where uplift resistance and structural integrity are critical.

Key Features

• 90 deg. rotated strap orientation - positions the straps to suit specific framing layouts where standard strap orientation would conflict with adjacent structural members, giving builders greater flexibility on the job site.
• Extended seat bearing surface - the seat projects beyond each side of the post, spreading the beam load across a larger area and improving the overall strength of the column-to-beam connection.
• Strong-Drive SDS Heavy-Duty Connector screws included - fasteners are provided with the cap, streamlining procurement and ensuring the correct hardware is on hand for code-compliant installation from the start.
• SDS screw attachment engages greater net section area - compared to a bolted connection, the SDS screws attach to more of the column's cross-section, contributing to stronger load transfer and a lower-profile installation.
• Increased uplift load values - engineered to perform under earthquake and high-wind loading conditions, making this column cap well-suited for projects in seismic or wind-sensitive zones.
• Gray paint finish - provides a consistent, clean appearance and a baseline level of surface protection suited to typical covered structural applications.

Why This Product

• Purpose-built hardware included - the 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws come with the cap, so installers have the correct, performance-matched fasteners without sourcing them separately.
• Engineered for high-load environments - the uplift resistance built into this connector makes it a dependable choice for post-and-beam framing in regions subject to seismic activity or elevated wind loads.
• Rotated strap design solves real framing challenges - the 90 deg. rotated straps address situations where a standard cap orientation is obstructed, reducing the need for field modifications and keeping the connection structurally sound.
• Simpson engineering backed by U.S. production - this connector is produced in the United States under Simpson quality standards, providing confidence in dimensional consistency and material compliance for structural framing projects.

Specifications

• Model Number: CCQ74SDS2.5ROT
• Strap Orientation: 90 Deg. Rotated Straps
• Beam Size: 6-3/4 inch
• Post Size: 4x
• Thickness (Gauge): 3 gauge
• Finish: Gray Paint
• Beam Width: 6-3/4 in.
• Width 1: 6-7/8 in.
• Width 2: 3-5/8 in.
• Length 1: 11 in.
• Height 1: 7 in.
• Country of Origin: United States

What's Included

• 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws (provided with the column cap)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What fasteners should be used to install the CCQ74SDS2.5ROT?

This column cap must be installed with 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are included with the cap. Note that lag screws will not achieve the same load performance as the specified SDS screws.

Why does the seat of the column cap extend beyond the column sides?

The extended bearing surface of the seat is engineered to distribute the load from the beam across a greater area, providing enhanced support for the column-to-beam connection and improving overall structural performance.

Is this column cap suitable for use in high-wind or seismic zones?

Yes. The CCQ74SDS2.5ROT features increased uplift load values specifically designed to meet the demands of earthquake or wind loading conditions, making it well-suited for applications in these environments.

Can the column cap portion be ordered without straps for attachment to a pipe or non-wood column?

Yes. The CCOQ and ECCOQ column cap only (no straps) variants may be ordered for field-welding to pipe or other columns. Their dimensions are the same as the CCQ and ECCQ models.
