Product Description

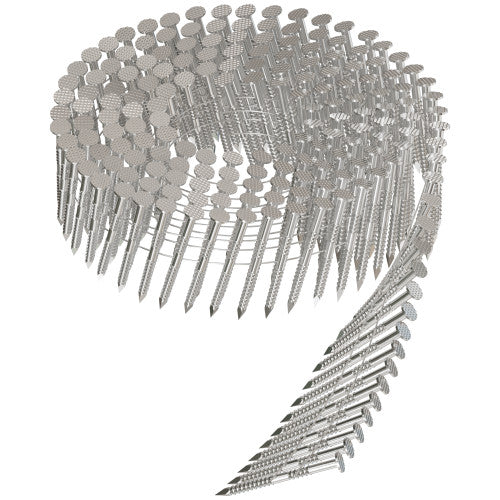

Simpson 15 deg. Wire Coil Full Round Head Ring-Shank Nail 1-3/4 in. x.099 in. 12 Ga. 304 SS is a professional-grade collated fastener from Simpson engineered for wood deck board installation and general framing. Built from Type 304 stainless steel for high-level corrosion resistance and shaped with an annular ring shank for superior withdrawal resistance, this 5d nail is designed to deliver a secure, long-lasting attachment in demanding outdoor and structural applications. The 15 deg. wire-coil collation is compatible with many major manufacturers' pneumatic coil nailers, helping reduce driving force and increase installation speed on the job site.
Key Features
- Annular ring-shank design - increases withdrawal resistance compared to smooth-shank nails, delivering a more secure and durable hold in deck boards and framing lumber over time
- Type 304 stainless steel construction - provides high-level corrosion resistance, making this nail well suited for exterior decking and other moisture-exposed applications
- Checkered head pattern - blends with the wood grain, reduces glare from sunlight, and accepts surface finishes for a cleaner appearance on exposed deck surfaces
- 15 deg. wire-coil collation - compatible with many major manufacturers' pneumatic coil nailers, reducing driving force and helping crews work faster with fewer interruptions
- Full round head profile - provides a broad bearing surface that helps prevent the head from pulling through wood, adding strength to every fastened connection
- Diamond point tip - allows the nail to start cleanly and drive consistently through framing lumber and deck boards with minimal splitting
Why This Product
- Built to hold in wood decking and framing - the annular ring-shank geometry grips wood fibers aggressively, resisting the seasonal movement and uplift forces that can work smooth-shank nails loose over time
- Stainless steel quality for outdoor confidence - Type 304 stainless steel provides high-level corrosion resistance, making these nails a practical choice for deck boards and other exterior wood assemblies where rust staining and fastener degradation are real concerns
- Designed for pneumatic speed - the 15 deg. wire-coil format fits many major manufacturers' coil nailers, so crews can drive fasteners quickly and consistently without slowing down for hand nailing
- Made in the United States by a trusted structural fastener brand - Simpson brings proven engineering to this decking and framing nail, giving contractors a reliable fastener backed by a manufacturer with a long track record in structural connectors and fasteners
Specifications
- MPN: S12A175PNB
- Brand: Simpson Strong-Tie
- Material / Finish: Type 304 Stainless Steel
- Gauge: 12
- Penny Size: 5d
- Length: 1-3/4 in.
- Shank Diameter: 0.099 in.
- Shank Type: Annular-Ring Shank
- Head Type: Full Round Head
- Head Diameter: 1/4 in.
- Head Pattern: Checkered
- Point Type: Diamond Point
- Collation Type: Wire Coil
- Collation Angle: 15 deg.
- Packaging Quantity: 3,600
- Country of Origin: United States
Approved Applications
- Decks - Deck Boards Wood
Downloads and Resources
- Tool Compatibility Matrix
- Contact us for assistance with fastener selection
Note: Product dimensions may differ from picture.
Frequently Asked Questions
What type of corrosion resistance does this nail offer?
This nail is manufactured from Type 304 stainless steel, which provides high-level corrosion resistance, making it well suited for outdoor applications such as wood deck board installation.
Why does an annular ring shank matter for decking applications?
The annular ring-shank design increases withdrawal resistance compared to smooth-shank nails, ensuring a more secure and durable attachment in deck boards and framing lumber over time.
What collation angle and collation type does this nail use?
This nail uses 15 deg. wire-coil collation, which is compatible with many major manufacturers' pneumatic coil nailers. Always consult the Tool Compatibility Matrix to confirm compatibility with your specific tool model.
What does the checkered head pattern provide?
The checker pattern on the head blends with the wood grain, reduces glare from sunlight, and accepts surface finishes, resulting in a cleaner, more finished appearance on exposed deck surfaces.
